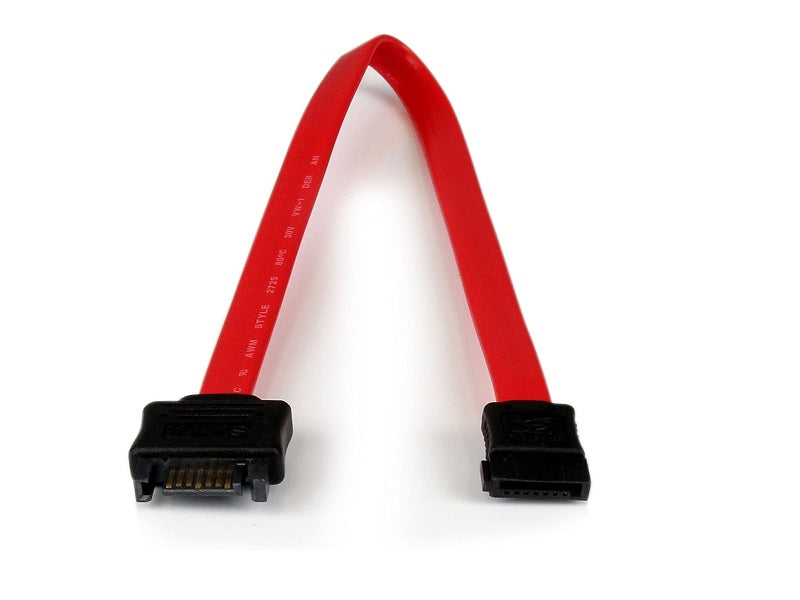

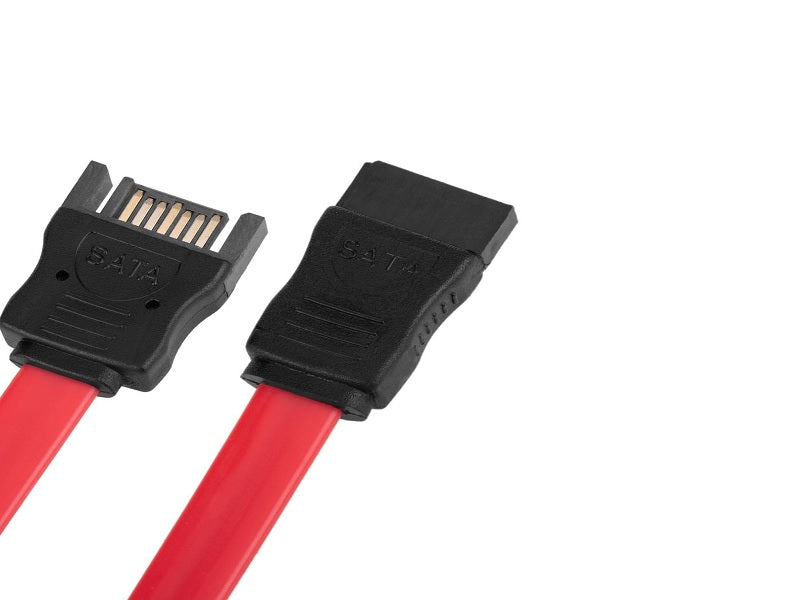

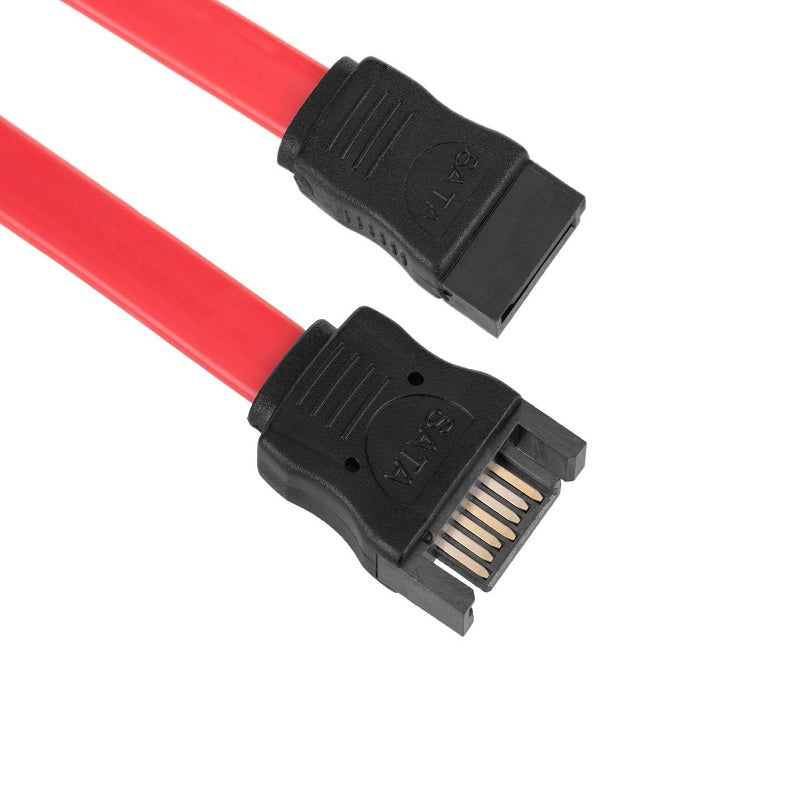

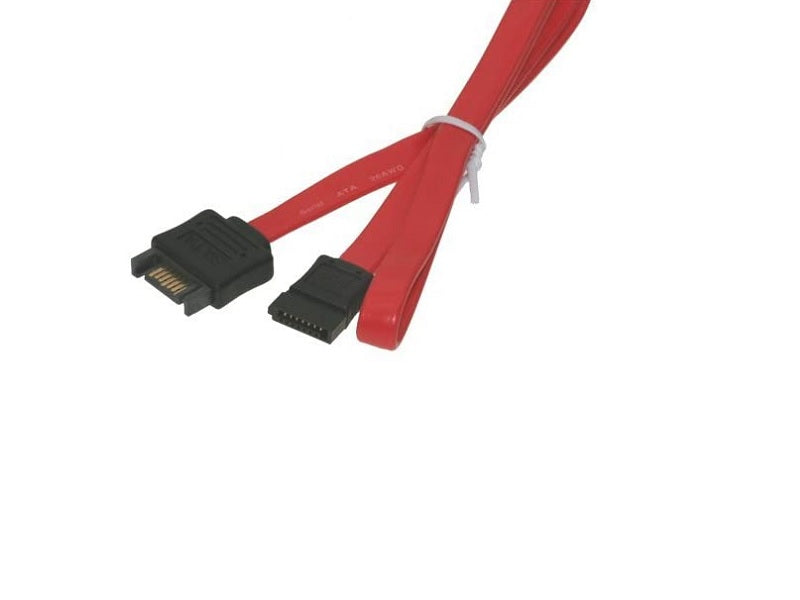

SATA Data Cable Male to Female Extension - 7-Pin, 3Gb/s, UL2725 26AWG

Extend the reach of any SATA hard drive or SSD connection with this reliable data extension cable. Built to the UL2725 26AWG standard, it carries the bi-directional serial data signal used by SATA drives at speeds of up to 3.0Gb/s — roughly 300MB/s — so you get the extra cable length you need without introducing a bottleneck in your storage connection.

With a SATA 7-pin female connector on one end and a SATA 7-pin male connector on the other, this cable is purpose-built as an extension, letting you lengthen an existing SATA data connection between a drive and your motherboard or controller card. This is especially useful in larger cases, external drive enclosures, or custom builds where the original cable simply doesn't reach.

Key features

• SATA 7-pin male to female connectors for true extension use
• Supports data transfer speeds up to 3.0Gb/s (approx. 300MB/s)
• Bi-directional serial data transmission
• Built to the UL2725 26AWG cable standard
• Compatible with standard SATA hard drives and SSDs

Ideal for

• Extending SATA drive cables in larger PC cases
• Custom builds and cable management projects
• External enclosures where drives sit further from the controller

Good to know

Adding cable length can occasionally affect signal integrity on high-speed data connections, so keep the total combined length of your SATA data run within your drive and motherboard manufacturer's recommendations, and avoid daisy-chaining multiple extensions where possible.
