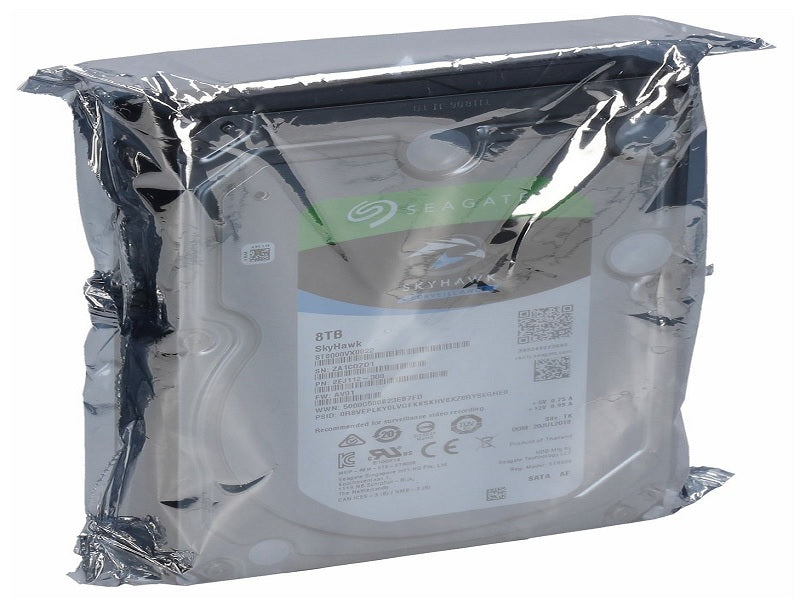

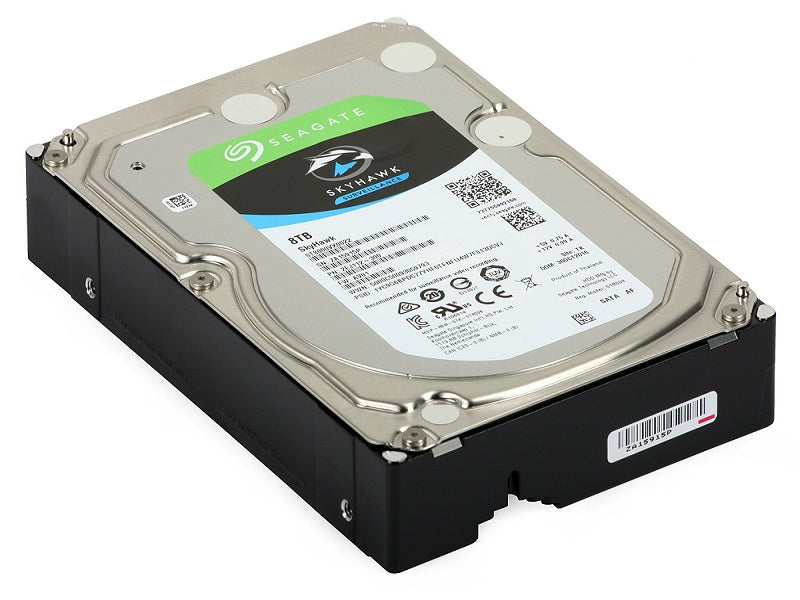

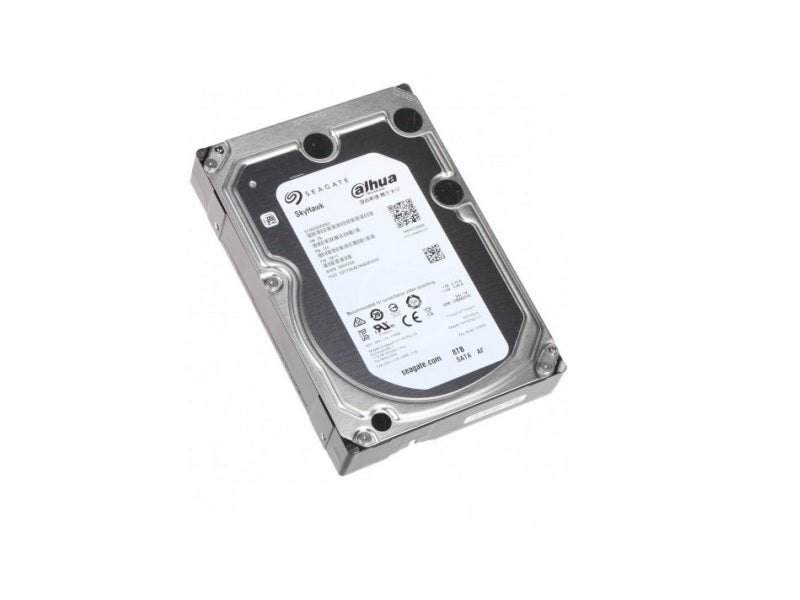

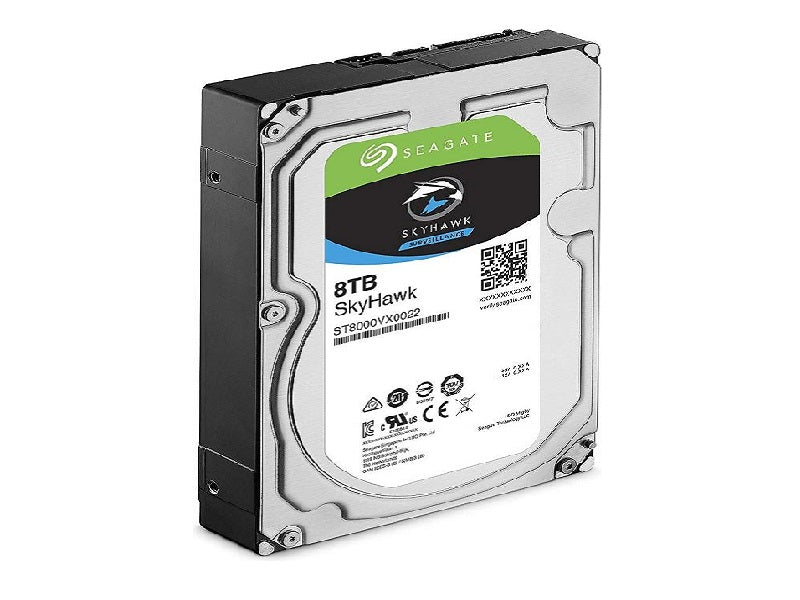

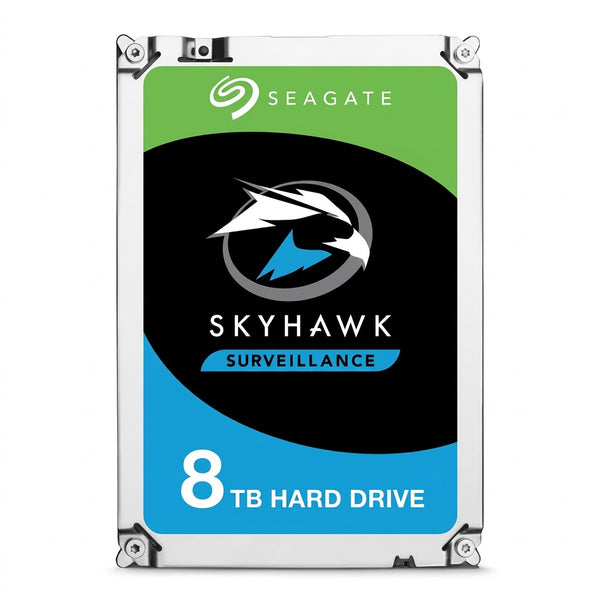

SEAGATE Surveillance Skyhawk 8Tb Hdd

Sustained data transfer rate OD (MiB/s max): 200 (210 MB/s max). Non-Operating temperature -40`b0 to 70`b0C (Ambient Temperature, see sections 2.6 and 2.11).

Key features

• Areal density, (Gb/in2, @ 0 skew mid-disk): 930
• ATA data-transfer modes supported
• Altitude, nonoperating: -304.8 m to 12,192 m (-1000 ft to 40,000+ ft)
• Operational Shock (max at 2 ms - typical): Read 70 Gs / Write 40 Gs
• Non-Operational Shock (max at 2 ms - typical): 300 Gs
• Drive acoustics, sound power (bels): Idle
• During periods of drive idle, some offline activity may occur according to the
• Smart specification, which may increase acoustic and power to operational levels.
• Maximum Rated Workload: Maximum rate of - Workloads exceeding the annualized rate may degrade the drive MTBF and impact
• product reliability.
• The Annualized Workload Rate is in units of TB per year or TB per 8760 power on
• hours. Workload Rate = TB transferred x (8760 / recorded power-on hours).

Specifications

• Drive specification: ST8000VX004
• Formatted (512 bytes/sector)#: 8TB
• Heads: 10
• Discs: 5
• Bytes per logical sector: 512
• Bytes per physical sector: 4096
• Recording density, KBPI (Kb/in max): 2509
• Track density, KTPI (tracks/in, 0 skew): 371
• Spindle speed (RPM): 7200
• Internal data transfer rate (Mb/s max): 2850
• I/O data transfer rate (MB/s max): 600
• PIO modes: 0-4
• Multiword DMA modes: 0-2
• Ultra DMA modes: 0-6
• Cache buffer: 256MB (262,144KB)
• Weight: (maximum): 716g (1.579 lb)
• Average latency: 4.16ms
• Power-on to ready (sec) (typ/max): 23/30
• Standby to ready (sec) (typ/max) 23/30
• Startup current (typical) 12V (peak) 1.8A
• Voltage tolerance (including noise) 5V +10/-5%
• 12V `b110%
• Operating temperature 5`b0C
• Operating temperature 70`b0C
• Temperature gradient (`b0C per hour max) 20`b0C (operating)
• 30`b0C (nonoperating)
• Relative humidity 5% to 95% (operating)
• 5% to 95% (nonoperating)
• Relative humidity gradient: 30% per hour max
• Altitude, operating: -304.8 m to 3,048 m
• 1000 ft to 10,000+ ft)
• Vibration, operating: 5-22 Hz: 0.25 Gs,
• 22-350 Hz: 0.50 Gs
• 350-500 Hz: 0.25 Gs
• Operation Rotational vibration: 20-1500Hz: 12.5 rads/s'b2
• Vibration, nonoperating: 10-500 Hz: 5.0 Grms ref
• 2.8 (typical)
• 3.0 (max)
• The performance seeks 3.2 (typical): 3.4 (max)
• Nonrecoverable read errors: 1 sector per 1015 bits read
• Annualized Failure Rate (AFR): 0.87% based on 8760 POH
• 1 x HDD
