Solar Tile Roof Hook Metal Mounting

Solar Tile Roof Hook – Metal Solar Panel Mounting Bracket
Full Product Description

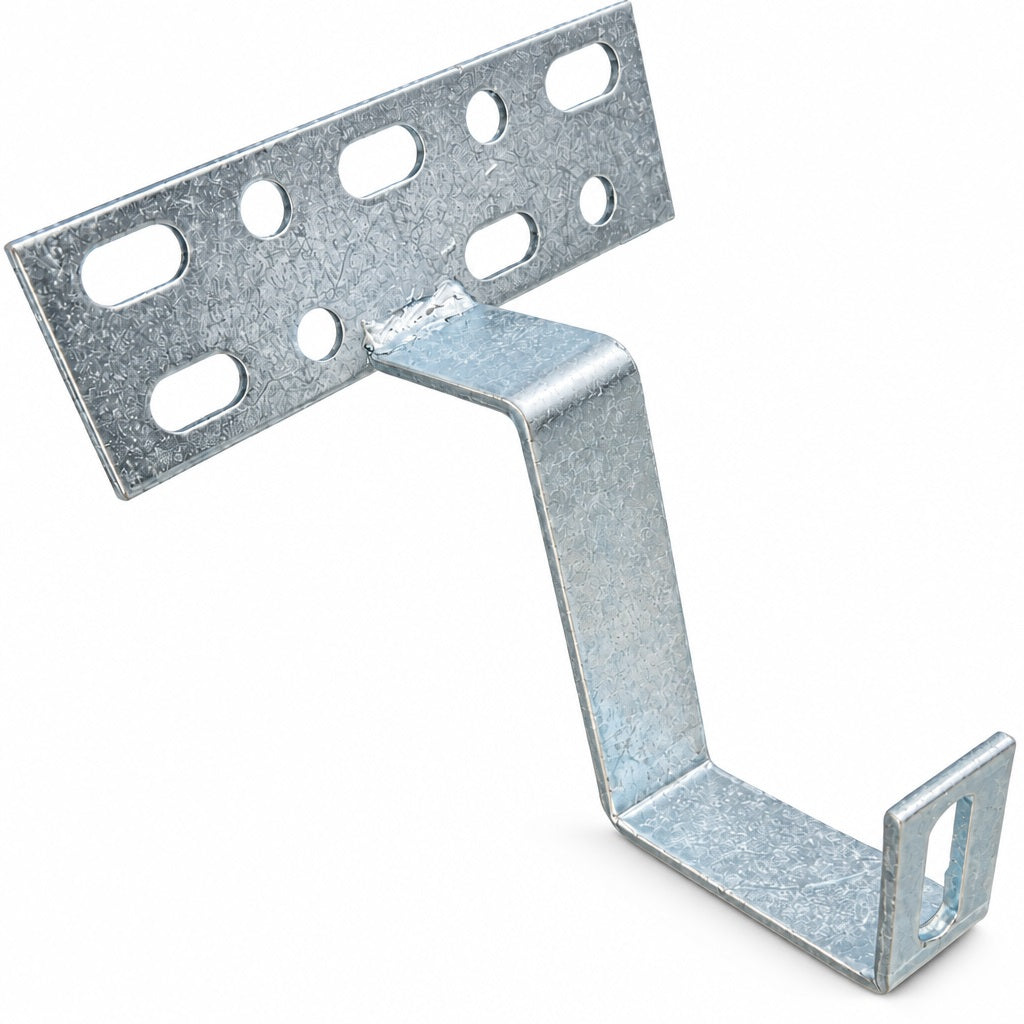

The Solar Tile Roof Hook is a heavy-duty metal mounting bracket designed for securing compatible solar panel mounting rails to tiled roof structures.

The hook forms part of a solar photovoltaic mounting system, providing a secure connection point between the roof structure and the solar mounting rail. Its stepped hook design allows the bracket to extend around the roof tile while supporting the rail above the tiled surface.

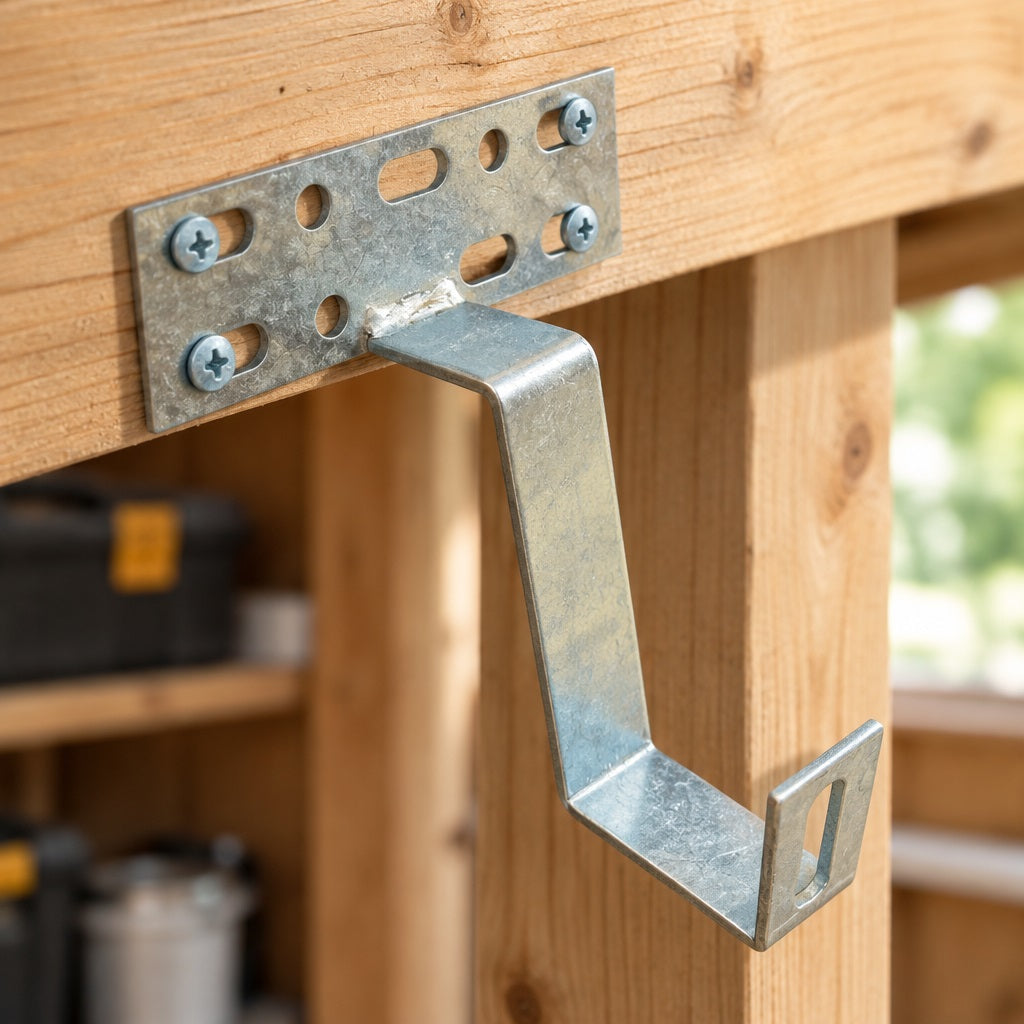

The mounting plate features multiple round and elongated fixing holes, providing installers with flexibility when positioning and securing the bracket to a compatible roof structure.

A slotted mounting point at the upper end of the hook allows connection to compatible solar mounting rails and fastening hardware, making installation and alignment easier.

The metal construction is designed for strength and durability, making the roof hook suitable for residential and commercial solar installations where compatible tiled roofing is used.

When combined with suitable solar rails, clamps, bolts and mounting accessories, the Tile Roof Hook helps create a stable mounting structure for photovoltaic panels.

Key Features
Solar Panel Tile Roof Hook
Solar Mounting Bracket
Designed for Tiled Roof Installations
Heavy-Duty Metal Construction
Multiple Mounting Holes
Slotted Fixing Points
Compatible with Suitable Solar Mounting Rails
Provides Secure Rail Support
Stepped Hook Design
Suitable for Solar PV Installations
Suitable for Residential Solar Systems
Suitable for Commercial Solar Systems
Designed for Professional Installation
Durable Metallic Finish
Full Specifications
Specification Details
Product Type Solar Tile Roof Hook
Category Solar Panel Mounting Hardware
Application Solar / PV Panel Installation
Roof Application Compatible Tiled Roofs
Construction Metal
Mounting Plate Multi-Hole
Slotted Fixing Points Yes
Rail Connection Yes, with Compatible Hardware
Installation Type Mechanical
Power Required No
Suitable For Solar Mounting Rail Systems
Tile Roof Solar Mounting

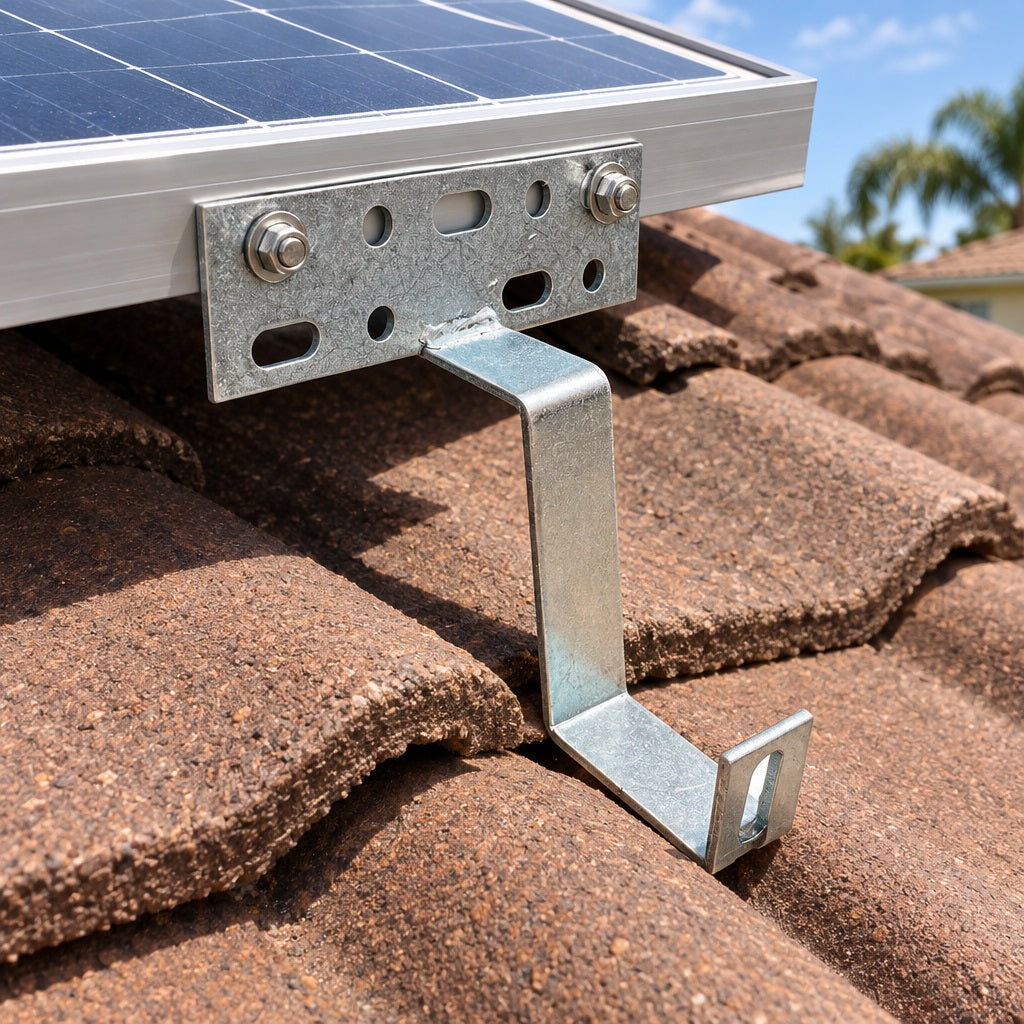

The roof hook is designed to create a secure mounting point for a compatible solar rail while allowing the bracket to extend around the roof tile.

Typical mounting arrangement:

Roof Structure → Tile Roof Hook → Solar Mounting Rail → Solar Panel Clamps → Solar Panel

Multi-Hole Mounting Plate

The mounting plate incorporates multiple round and elongated holes, providing flexibility when positioning compatible mounting fasteners.

This helps installers achieve suitable alignment according to the roof structure and mounting requirements.

Rail Mounting Point

The raised end of the bracket includes an elongated mounting slot for attaching compatible solar rails and mounting hardware.

This provides adjustment during rail positioning and alignment.

Ideal For

Residential Solar • Commercial Solar • Rooftop PV Systems • Tiled Roofs • Solar Installers • Off-Grid Systems • Solar Panel Mounting

Installation Note

Correct installation depends on the roof structure, tile profile, mounting rail, fasteners and solar-panel configuration. Installation should be carried out using appropriate structural fixing points rather than relying on the roof tile itself to carry the solar-panel load.

What`s in the Box
1 × Solar Tile Roof Hook / Mounting Bracket
