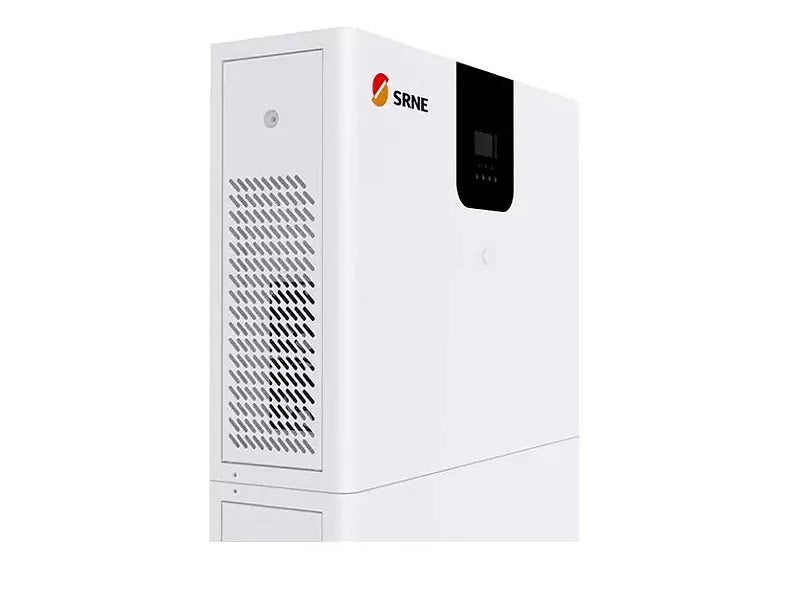

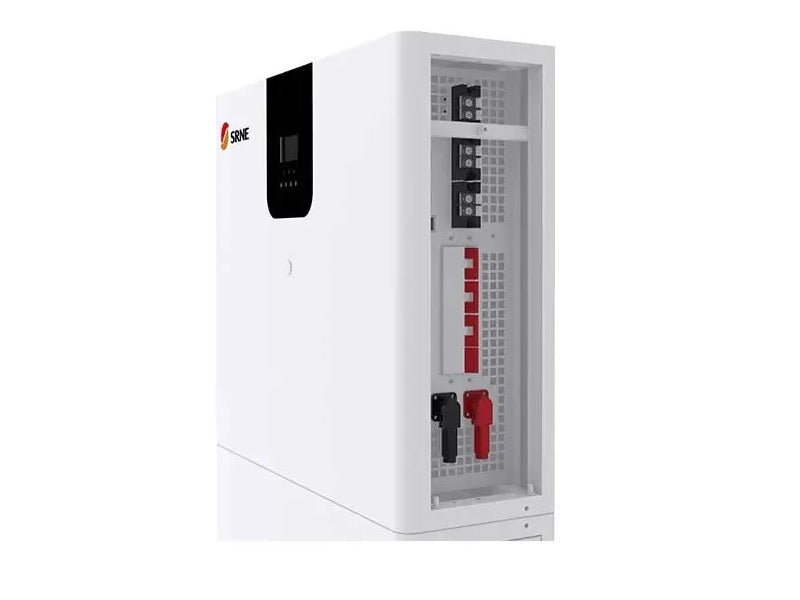

SRNE All In 1 System 3.5Kw24V80A Inverte
SRNE All In 1 System 3.5Kw24V80A Inverte
SRNE
R 35,999
Estimated delivery
2–4 working days
In stock
FREE NATIONWIDE DELIVERY
on orders over R 500
on orders over R 500
Quantity
In stock
When do I get it?
Estimated delivery times depend on where you are. Your exact date is confirmed at checkout.
| Delivery destination | Delivery time |
|---|---|
| Cape Town, Durban, Johannesburg & Pretoria | 2–4 working days |
| Regional areas | 5–6 working days |
| Remote areas | 3–7 working days |
- Interest Free Payments available
- Hassle Free Returns within 7 days
- 6-month limited warranty
Description
The SRNE All In 1 System 3.5Kw24V80A Inverte offers the following features and specifications.
Key features
- PV Charge
- AC Charge
Specifications
- R & 5.12kw25.6v200ah lion battrey 2part
- Battery Model: SR-EOV24-5.0A-E1
- Number Of Batteries: 1
- Battery Energy: 5.12KWH
- Battery Capacity: 200AH
- Weight: 100Kg
- Dimension: 1190mmL x 600mmD x 184mmH
- Battery Type: LiFePO4
- Battery Rated Voltage: 25.6V
- Battery Working Voltage Range: 22.4VDC - 28.8VDC
- Maximum Charging Current: 150A
- Maximum Discharging Current: 150A
- DOD: 80%
- Designed Life Span: 5000 Cycles
- Inverter Model: SR-EOV24-3.5S-C1
- Solar Charge Type: MPPT
- Maximum Input Power: 4000W
- PV Charging Current Range: 0A-80A
- PV Operating Voltage Range: 120VDC-500VDC
- MPPT Voltage Range: 120VDC-450VDC
- Maximum Charge Power: 2240W
- AC Charging Current Range: 0A-80A
- Rated Input Voltage: 220VAC-230VAC
- Input Voltage Range: 90VAC-280VAC
- Rated Output Power: 3500W
- Maximum Output Current: 30A
- Frequency: 50Hz
- Overload Current: 35A
- Maximum Peak Power: 6000VA
- Power Factor: 1
- Pated Output Voltage: 230VAC
- Auto Switch Period: <15ms
- Communication: RS485 / CAN / WIFI
- Charging Temperature Range: 0 C to 45 C
- Discharging Temperature Range: -10 C to 45 C
- Operation Humidity: 5% to 85%
- Cooling Mode: Force-Air-Cooling @ 60bB
- Ingress Protection: IP20
- Operation Environment: Indoor
- Installation Method: Vertical
- Safety Certification: UN38.3,MSDS,EN55032,EN55024,EN61000-3-2,EN61000-3-3
Frequently Bought Together Frequently bought
Product Information
| Categories | Solar Solutions / SRNE |
| Brand | SRNE |
| Battery Model | SR-EOV24-5.0A-E1 |
| Battery Type | LiFePO4 |
| Battery Energy | 5.12 kWh |
| Capacity | 200Ah |
| Rated Voltage | 25.6V |
| Working Voltage | 22.4-28.8 VDC |
| Max Charge Current | 150A |
| Max Discharge Current | 150A |
| Cycle Life | 5000 Cycles |
| Inverter Model | SR-EOV24-3.5S-C1 |
| Rated Output Power | 3500W |
| Peak Power | 6000VA |
| Output Voltage | 230VAC |
| Frequency | 50Hz |
| Dimensions | 1190 x 600 x 184 mm |
| Weight | 100 kg |
| Connectivity | RS485 / CAN / WIFI |
| Ingress Protection | IP20 |
