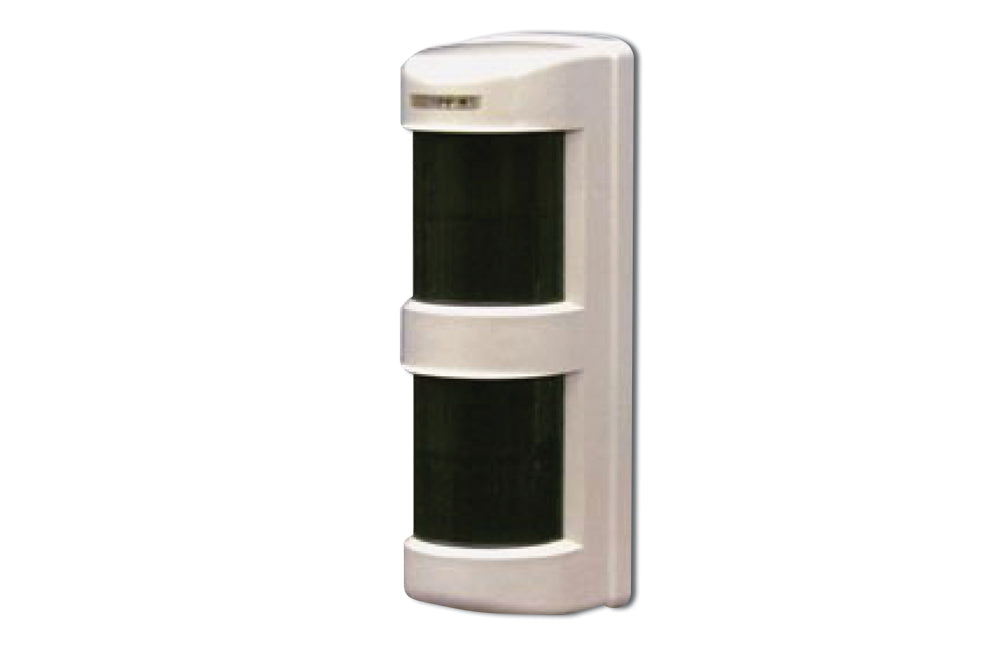

TAKEX Ms12Fe External Pir Dual Zone Upto

Please select your region from the drop-down menu above to find your nearest TAKEX office. With its 4 x 12m PIR detectors giving up to 180 degrees of effectively pet immune coverage, the MS-12FE remains the professional choice for reliable, trouble-free outdoor motion detection. Incorporating key features such as day/night discrimination, variable timer alarm relay, NO/NC output, pulse count and sensitivity adjustments, there really is no need to look further.

Key features

• Search our site
• Select your regiontakex

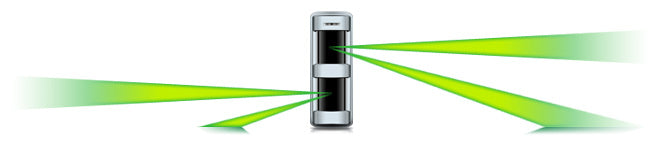

• Dual-Zone: Up to 12m (40ft) x 180 degrees

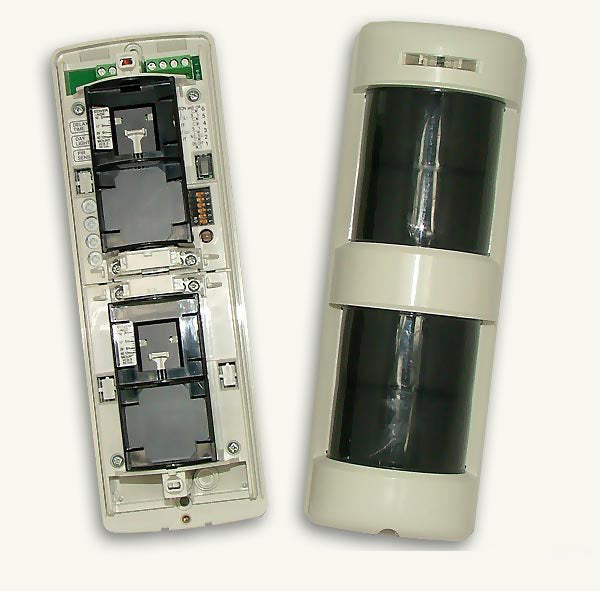

• 2x Dual-Zone sensor heads can resist detection of small animals
• Advanced Variable Multi-area Detection System
• Selectable NO/NC relay output with Timer Function
• Day/Night Sensing
• Adjustable Pulse Count & Sensitivity
• Add to enquiryDetails
• SpecificationsDownloads
• Detection system Passive Infrared
• Coverage adjustment
• (By adjusting vertical angle of downward zone)
• Alarm output Dry contact relay output N.C./N.O. selectable
• (2sec. -5min. approx.)
• Detection settings Daylight : Night (10 lux) - Day and Night
• Tamper output Dry contact relay output N/C
• Operation LED Red LED
• Blinking at warming up (LED disabled)
• Lighting at alarm (LED disabled)
• Pulse count settings once / three times (with a switch)
• Sensitivity adjustment Approx. 30% (L) - Approx. 170% (H) (By potentiometer)
• Detection mode AND / OR selectable
• Connection Terminals
• Ambient temperature -4F to +122F (-20C to +50C'a3`a9
• Mounting position Indoor / Outdoor

Specifications

• 180C 12M
• Security & Safety Sensors / MS-12FE
• Ms-12fe
• 0.8-1.2m Mounting Height
• Model MS-12FE
• Coverage When horizontal detection Angle: 90`b0
• Detection distance: 40ft (12m)
• Horizontal zone: 7 zones
• Downward zone: 7 zones
• x2
• Horizontal : +/-90`b0
• Detection distance : 10ft to 40ft (3 to 12m)
• Supply voltage 12 to 30V DC (non-polarity)
• Current consumption 40mA MAX.
• Contact capacity : 30V (AC`81`45DC), 0.5A MAX. (Resistive load)
• Contact operation : Detection time + off delay
• Contact capacity : 30V (AC/DC), 0.5A MAX. (Resistive load)
• Weight 16.5oz (470g)
• Appearance Body : AES resin
• Lens : PE resin
• Accessories Tapping screw : 2
• Area masking sheet : 2
