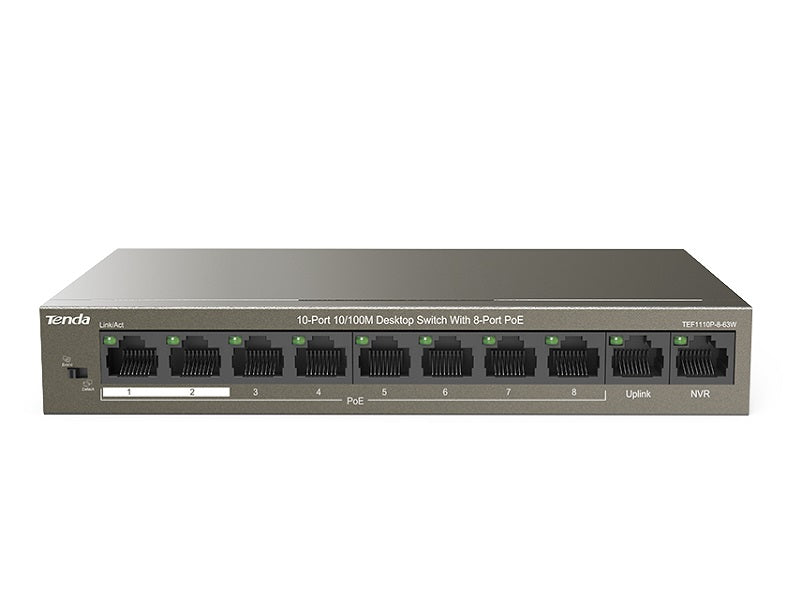

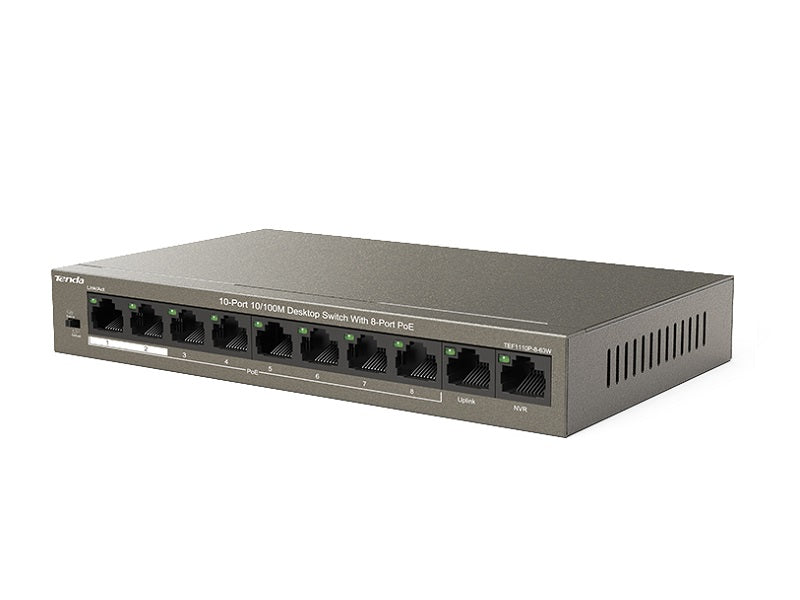

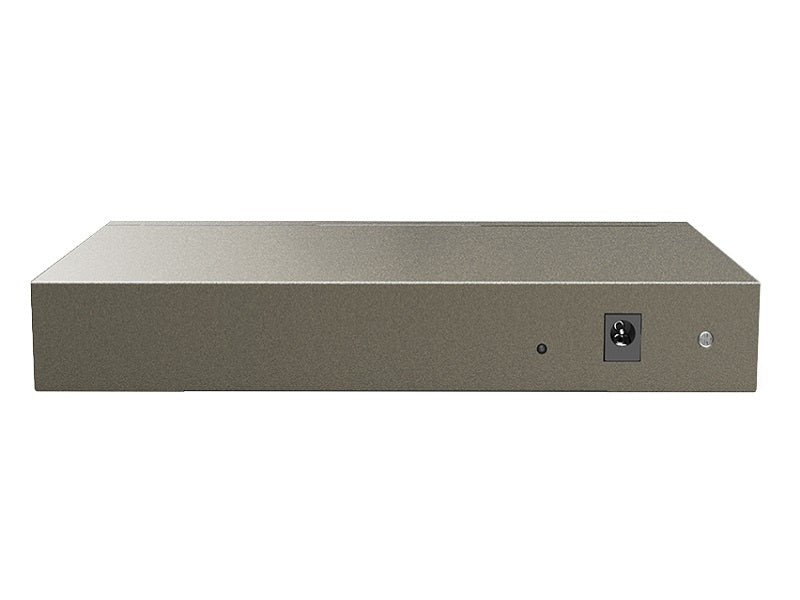

TENDA 10-Port Desktop Switch With 8 PoE

TEF1110P-8-63W is an unmanaged PoE switch with 2 uplink ports, independently designed by Tenda. Compliant with IEEE 802.3at/af standards, it can identify PoE-powered devices intelligently. The switch supplies a maximum PoE power output of 58 W, and 30 W for a single port. Featured with extend mode, One-key VLAN and QoS functions, TEF1110P-8-63W is a ideal choice for SMBs, supermarkets and restaurants with small-sized video surveillance requirement. Funtions Default Mode: If Default mode is enabled, the device works as a general switch and all ports support 10/100Mbps auto-negotiation.

Key features

• Interfaces 8 * 10/100 Base-TX Ethernet ports (Data/Power)
• Level of protection Lightning protection for ports: 6KV
• Forwarding mode Store-and-forward
• Extend Mode:VLAN isolation is enabled. Port 1-8 will be isolated respectively (10/100Mbps auto-negotiation), but can communicate with the Uplink port. And the delivery distance of powering and network data is up to 250m (10Mbps).

Specifications

• 10/100
• Network standards IEEE 802.3/3u/3x, IEEE 802.3af/at
• LED Indicator 10* Link/Ack LED indicators
• 1 * Power LED indicator
• 2 * 10/100 Base-TX Ethernet ports (Data)
• Transmission media Recommended: CAT5/5e UTP or better
• Dimension 177.5mmx104.0mmx26.0mm
• Lightning protection for power: 4KV
• Air discharge: `b110kV
• Contact discharge: `b18kV
• Switch capacity 1.6 Gbps
• Packet forwarding rate 1.48Mpps
• Buffer 448K
• MAC address table 1K
• PoE budget Single port: AF: 15.4W, AT: 30W
• Whole device: 58W
• Input voltage 100`a3`ad240V AC 50/60Hz
• 51V /1.25A DC'a3`a8Power Adapter `a3`a9
• Mounting Desktop mounting: support
• Wall mounting: support
• Rack mounting:non-support
• Environment Operating Temperature: 0℃~45℃
• Storage Temperature: -40℃~70℃
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
• Certification FCC'a1`a2CE'a1`a2RoHS
