TENDA 100Mbps Single-Mode Media Conveter

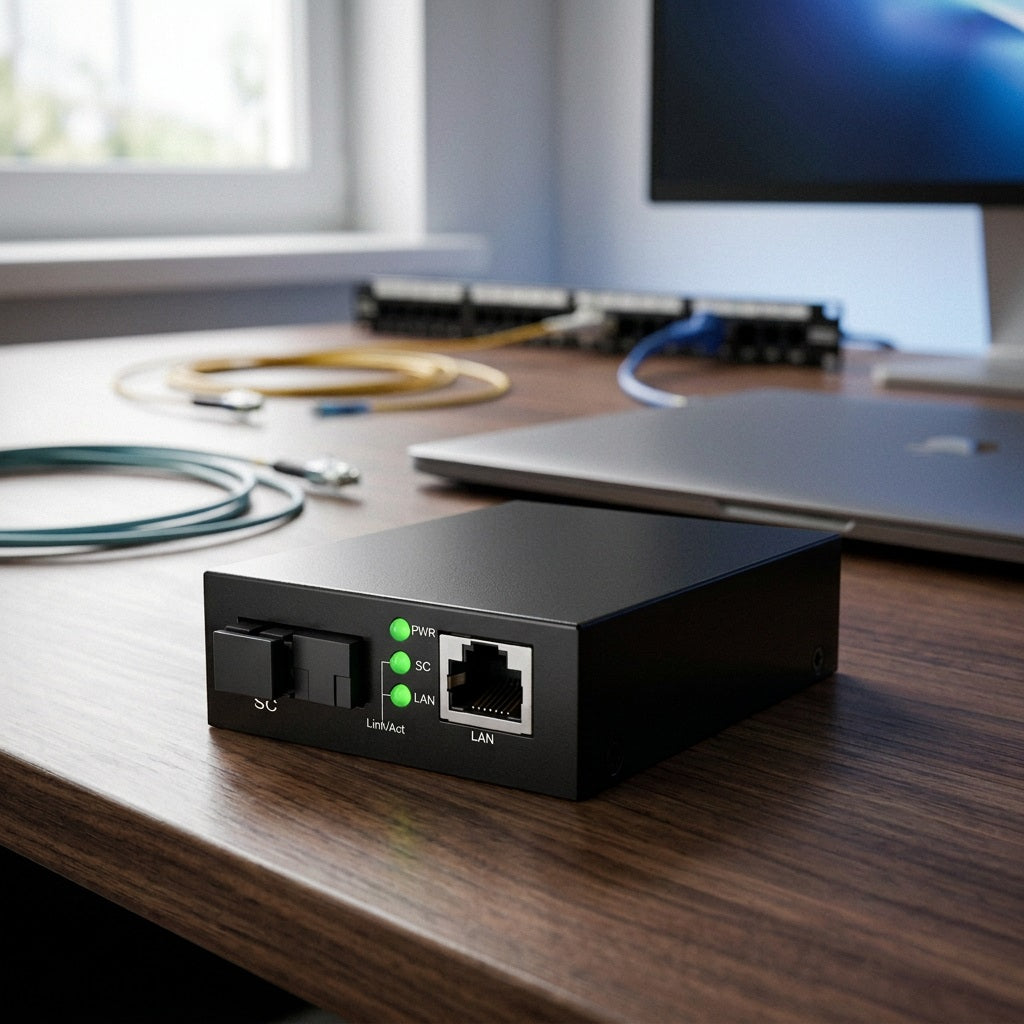

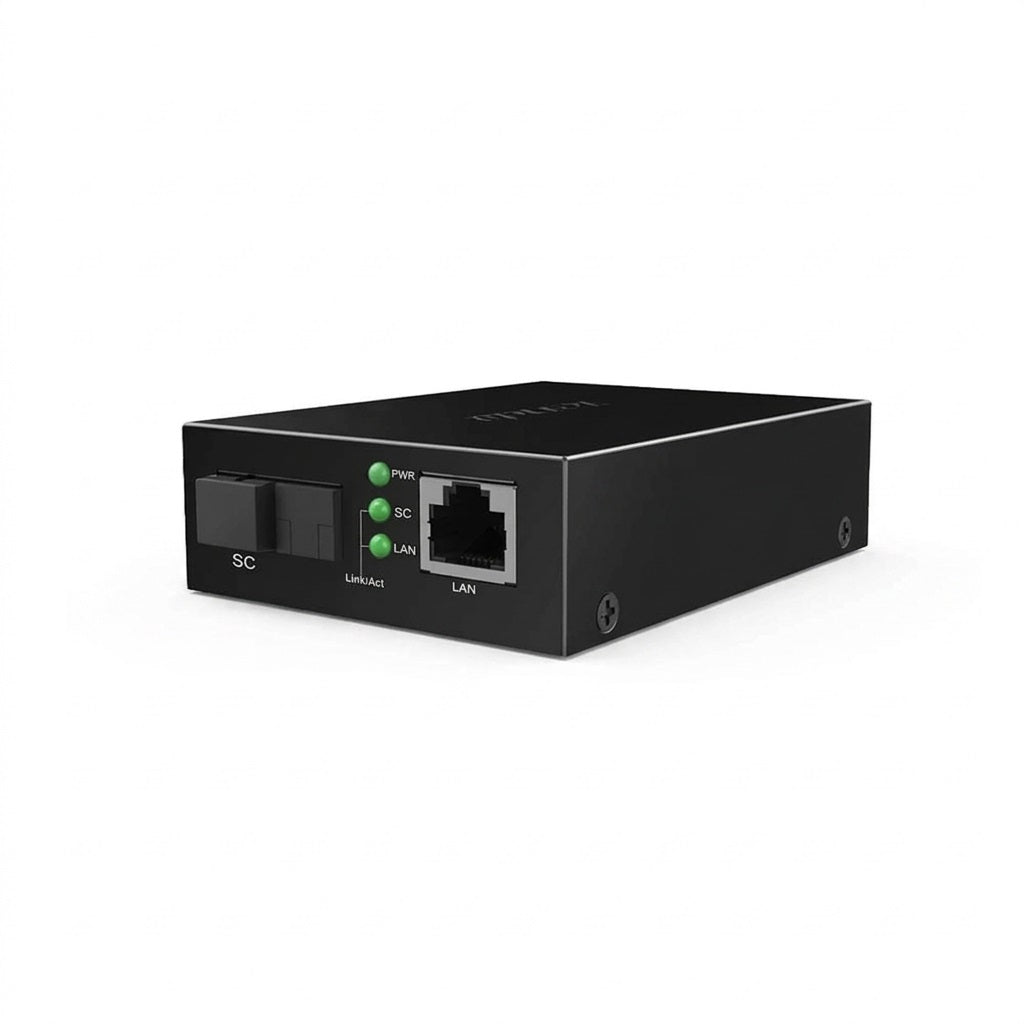

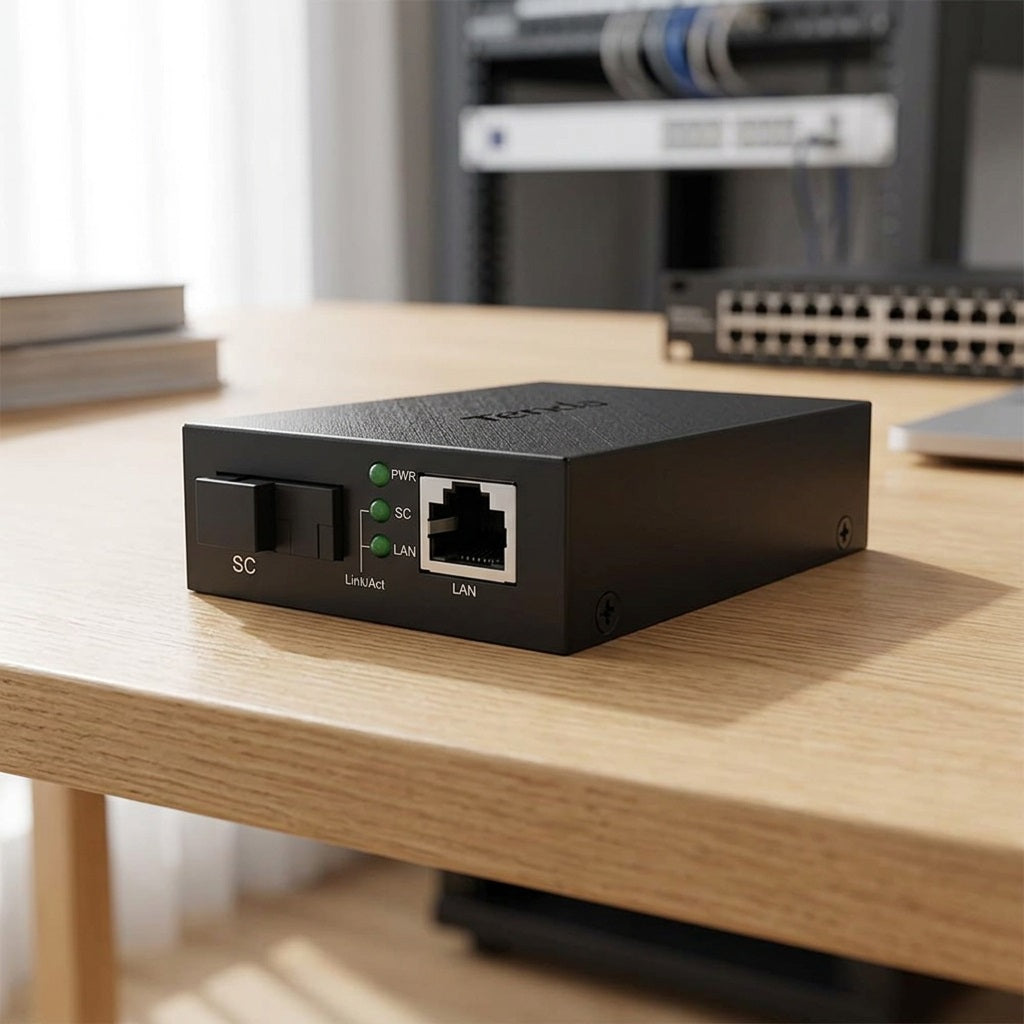

TENDA TFC100A – 100Mbps Single-Mode Single-Fiber Media Converter

Extend your Ethernet network over longer distances with the TENDA TFC100A 100Mbps Single-Mode Media Converter. This device converts electrical Ethernet signals into optical signals and converts received optical signals back into electrical Ethernet signals, enabling connectivity over compatible single-mode fiber-optic cabling.

The TFC100A uses Wavelength Division Multiplexing (WDM) technology, allowing transmission and reception to operate at different wavelengths over a single optical fiber. This helps reduce fiber-cabling requirements while supporting network connections over distances of up to 20km under suitable conditions.

The TFC100A is designed to operate with its complementary TFC100B counterpart. The two units use opposite transmit and receive wavelengths, so the correct A/B pairing is essential for a compatible fiber link.
100Mbps Ethernet: Supports compatible Fast Ethernet network connections.

Single-Mode Fiber: Designed for long-distance optical transmission over single-mode fiber.

Single-Fiber WDM Technology: Uses different transmit and receive wavelengths over one fiber strand.

Transmission Distance up to 20km: Manufacturer-stated maximum distance under suitable conditions.

SC Optical Interface: Uses an SC fiber connection.

Electrical-to-Optical Conversion: Converts Ethernet electrical signals to optical signals and back.

Complementary A/B Models: TFC100A and TFC100B use opposite wavelengths for paired operation.

Wide Range of Applications: Suitable for compatible network links in hotels, universities, enterprises, and commercial installations.
Specification

Details

Brand

TENDA

Model

TFC100A

Product Type

Fiber Optic Media Converter

Ethernet Data Rate

100Mbps

Fiber Type

Single-mode

Fiber Configuration

Single-fiber

Transmission Technology

Wavelength Division Multiplexing (WDM)

Optical Connector

SC

Maximum Transmission Distance

Up to 20km

Transmit Wavelength

1550nm

Receive Wavelength

1310nm

Compatible Pair

TENDA TFC100B

Ethernet Port Details

Verify with supplier

Supported Ethernet Standards

Verify with supplier

Power Supply

Verify with supplier

Dimensions

Verify with supplier

Operating Temperature

Verify with supplier

Warranty

Verify with supplier
