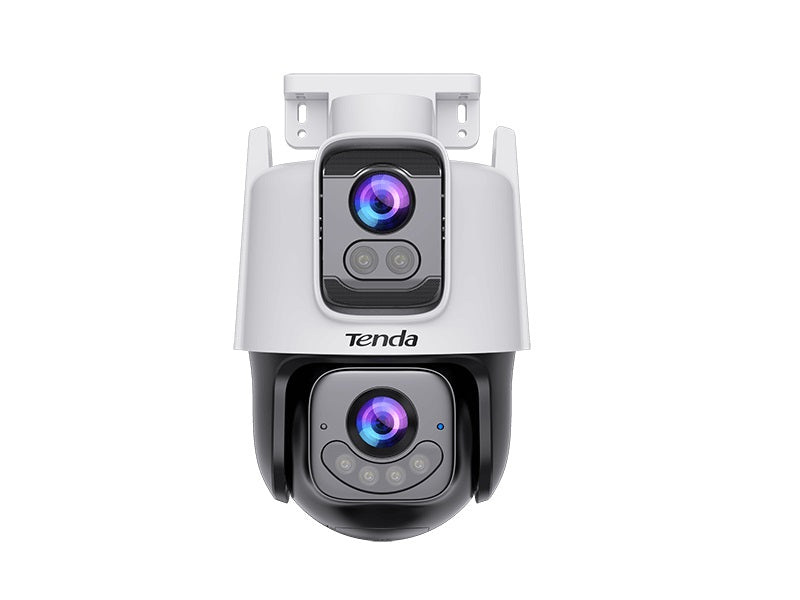

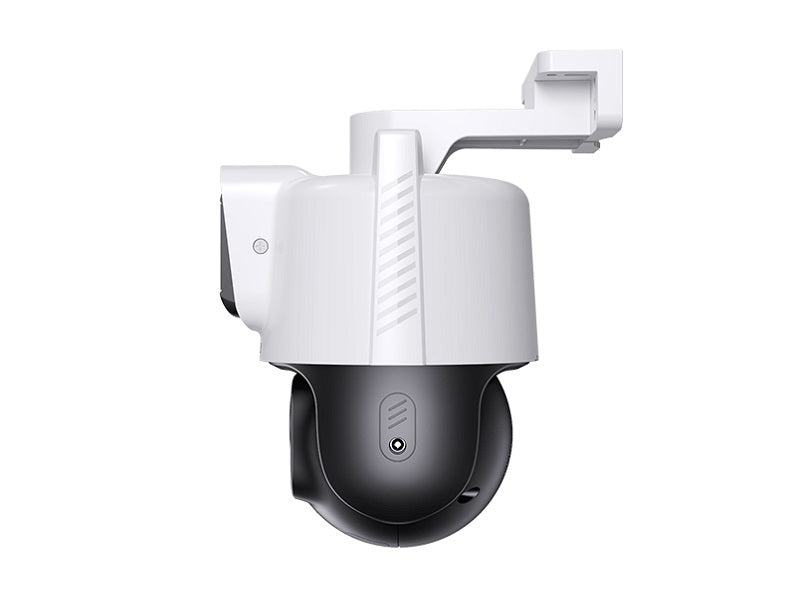

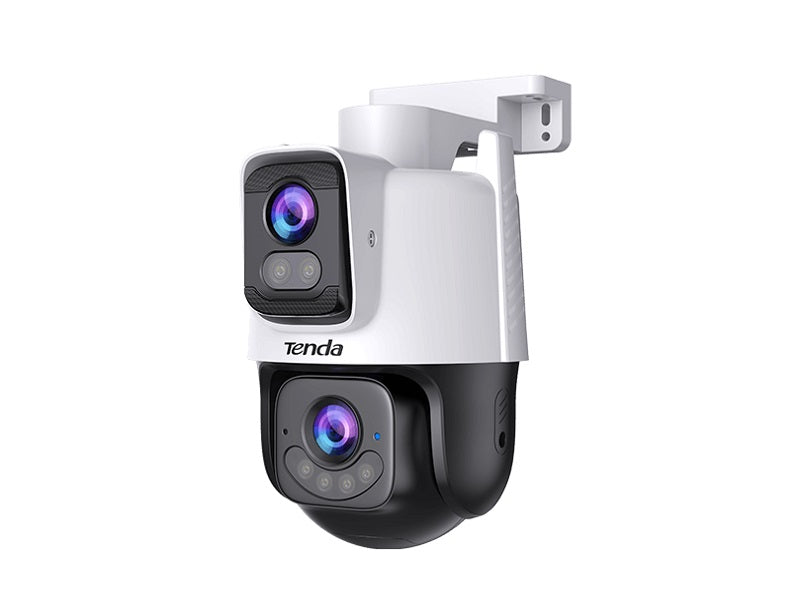

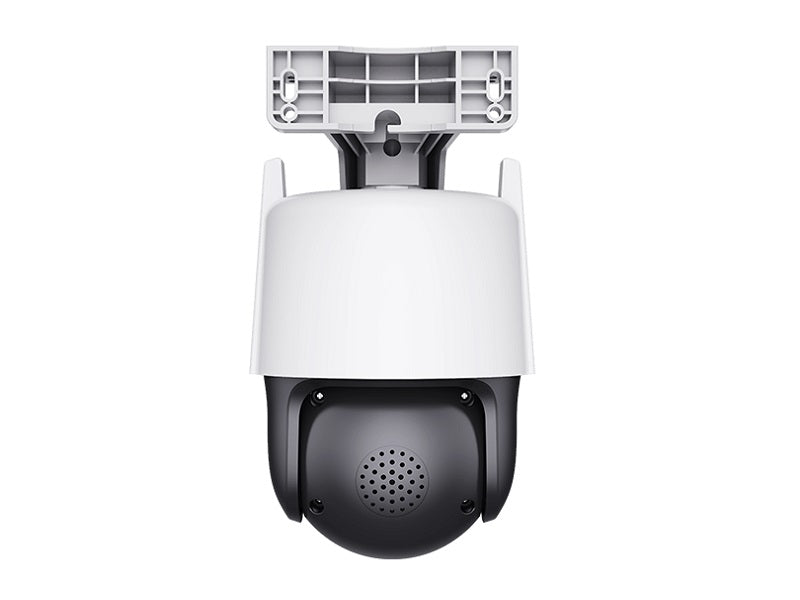

Tenda 3+3Mp Dual-lens Linkage Outdoor

The dual-lens linkage outdoor Wi-Fi pan/tilt camera CH9-WCA, is a high-performance outdoor security camera that integrates 6MP resolution video(3MP+3MP), 360`b0 visual coverage, full-color night vision, full-duplex two-way audio, human detection, vehicle detection, line crossing detection, intrusion detection, dual-lens smart linkage, sound and light alarm functions. The product is mostly used for outdoor protect scenarios such as courtyard, farms and shops, etc. The users can access the video via wireless or wired connection to the Internet. Supplementary Light Distance Up to 30 m/100 ft (depending on environment).

Key features

• Day and Night ICR type
• Horizontal FOV: 82.3`b0, Vertical FOV: 44.7`b0, Diagonal FOV: 97.4`b0
• Horizontal FOV: 51.8`b0, Vertical FOV: 28.2`b0, Diagonal FOV: 60.4`b0
• Night Vision Mode Smart Mode, Full Color Mode, Black & White Mode
• Main Stream Resolution Fixed Lens'a3°2304 `d71296, 1920 `d7 1080, 1280 `d7 720
• PT Lens'a3°2304 `d71296, 1920 `d7 1080, 1280 `d7 720
• Frame Rate Fixed Lens'a3°1-25fps (2304 `d7 1296 1-18fps), Default 18fps
• PT Lens'a3°1-25fps (2304 `d7 1296 1-18fps), Default 18fps
• Audio Communication Two-way Audio, Voice Input
• Ethernet Port 1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port
• ONVIF Support
• Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, ARP, WebSockets
• Patrol Panoramic Patrol, Preset Patrol
• Antenna Internal antenna
• Modulation DSSS/OFDM/OFDMA
• Smart Detection Both fixed lens and PT lens are supported motion detection, human detection, vehicle detection, line crossing Detection, intrusion detection
• Smart Linkage Sound&light Alert, Dual-lens Linkage Tracking
• Storage Built-in Micro SD Card Slot, Up to 512 GB
• Reset Button Support
• LED Indicator Dual Color(red & blue) LED Indicator
• Product Dimension 203mm x 122mm x 62mm(8.0 `d74.8 `d7 2.4)
• Package Dimension 240mm x 145mm x 193mm(9.4 `d75.7 `d7 7.6)
• Installation Method Wall Mounting, Ceiling Mounting, Pole Mounting
• Certification CE, RoHS, FCC, RCM, UKCA
• Installation Template
• Mounting Bracket
• Mounting Accessories Kit
• Waterproof Kit
• Quick Installation Guide

Specifications

• Image Sensor 1/3 Progressive Scan CMOS sensor
• Bracket Angle Adjustment Pan'a3°0`b0to 260`b0
• Focal Length Fixed Lens'a3°4mm
• PT Lens'a3°6mm
• Aperture Fixed Lens'a3°F1.6
• PT Lens'a3°F1.6
• FOV Fixed Lens'a3°
• PT Lens'a3°
• Supplementary Light 6 IR Lights, 6 Spotlights
• IR Wavelength 850nm
• Video Encoding Format Fixed Lens'a3°H.265, H.264
• PT Lens'a3°H.265, H.264
• Sub Stream Resolution Fixed Lens'a3°640 `d7 360
• PT Lens'a3°640 `d7 360
• Bit Rate Fixed Lens'a3°512kbps -- 4096kbps
• PT Lens'a3°512kbps -- 4096kbps
• Bit Rate Control Fixed Lens'a3°CBR,VBR
• PT Lens'a3°CBR,VBR
• Audio Encoding Format G.711A, G.711U, AAC
• Audio Sampling Rate 8 kHz
• Image Enhancement DWDR, BLC, HLC, 3D DNR
• Privacy Mask 4 Areas
• Web Browser Plug-in free live view: Chrome, Edge, Opera
• Pan Movement Range 0`b0--355`b0
• Tilt Movement Range 0`b0--90`b0
• Preset 6
• Wireless Standard IEEE 802.11 b/g/n/ax
• Transmission Rate Up to 287Mbps
• Channel Width 20/40 MHz
• Frequency Band 2.4GHz: 2412MHz-2472MHz(CH1-CH13)
• Transmit Power 2.4GHz: <0.1W(EIRP)
• Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPA3‐SAE
• DIY Audio 3 Customized Audios
• Power 12V DC,1A,`d85.5mm&`d82.1mm Power Plug
• Material Plastic
• Product Weight 527g(1.16lb)
• With Package Weight 802g(1.77lb)
• Protection Level IP65
• Temperature Operating Temperature: -30`b0C ~ 60`b0C (-22`b0F ~ 140`b0F)
• Storage Temperature: -40`b0C ~ 70`b0C (-40`b0F ~ 158`b0F)
• Humidity Operating Humidity: 10% ~ 95% RH (non-condensing)
• Storage Humidity: 3% ~ 95% RH (non-condensing)
• Power Adapter (cord length: 3m)
