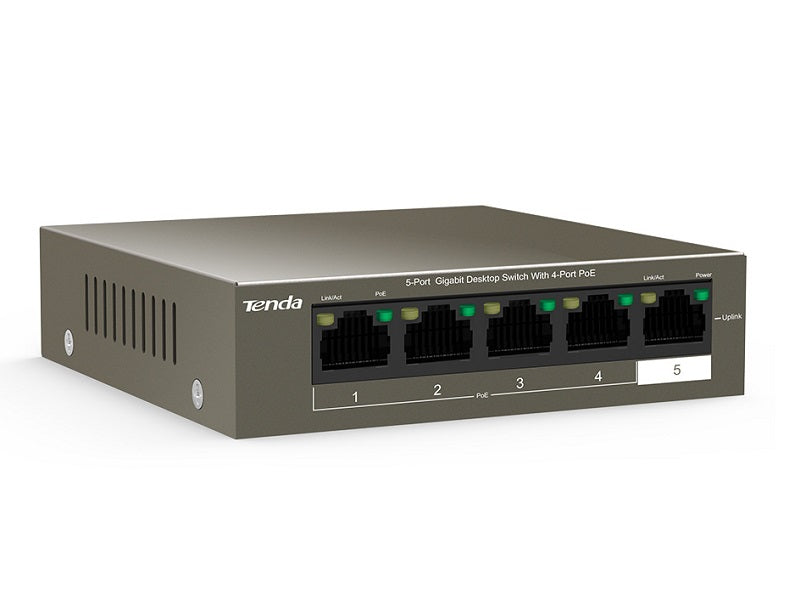

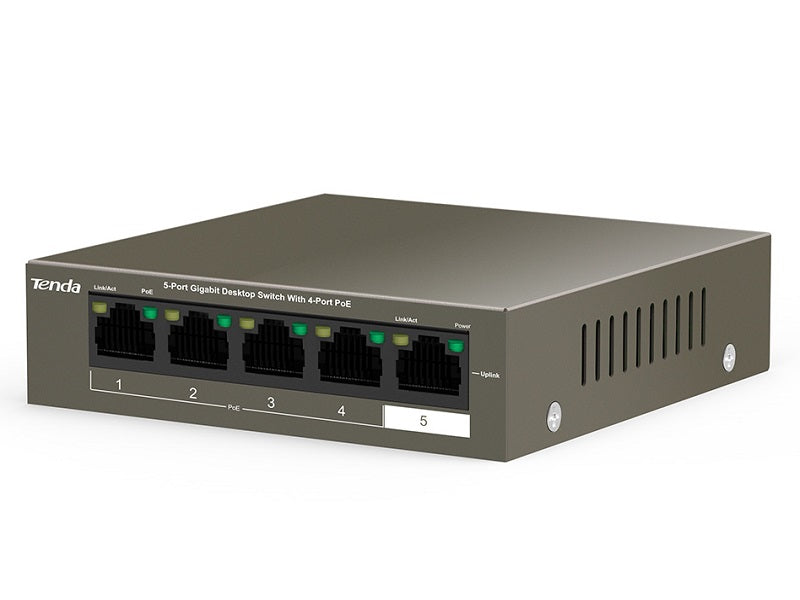

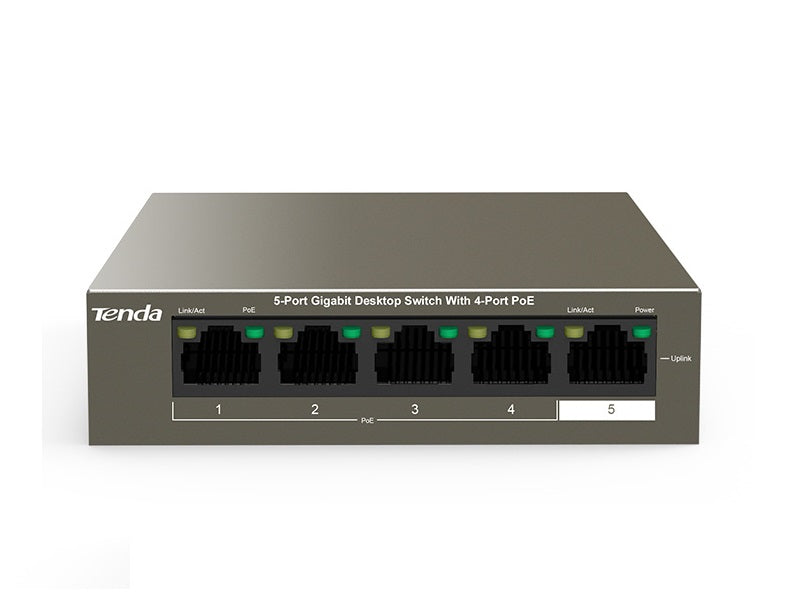

TENDA 4-Port Gigabit Desktop PoE Switch

TEG1105P-4-63W is a Tenda PoE switch that offers 5*10/100/1000 Mbps Base-TX RJ45 ports. Ports 1-4 comply with the IEEE 802.3af standard (maximum PoE power output: 15.4 W) and 802.3 at standard (maximum PoE power output: 30 W). The switch offers a maximum PoE power output of 58 W and can supply power to APs, IP cameras, and IP phones and exchange data with them through CAT5 cables. It also provides simple management modes such as VLAN to help reduce cabling costs of IP terminals like APs and IP cameras. Funtions Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.

Key features

• Network standards IEEE 802.3`a1`a2 IEEE 802.3u'a1`a2IEEE 802.3x'a1`a2IEEE 802.3af'a1`a2IEEE 802.3at
• Ports(Data/Power)
• Level of protection Lightning protection for ports: 6kV
• Forwarding mode Store-and-forward

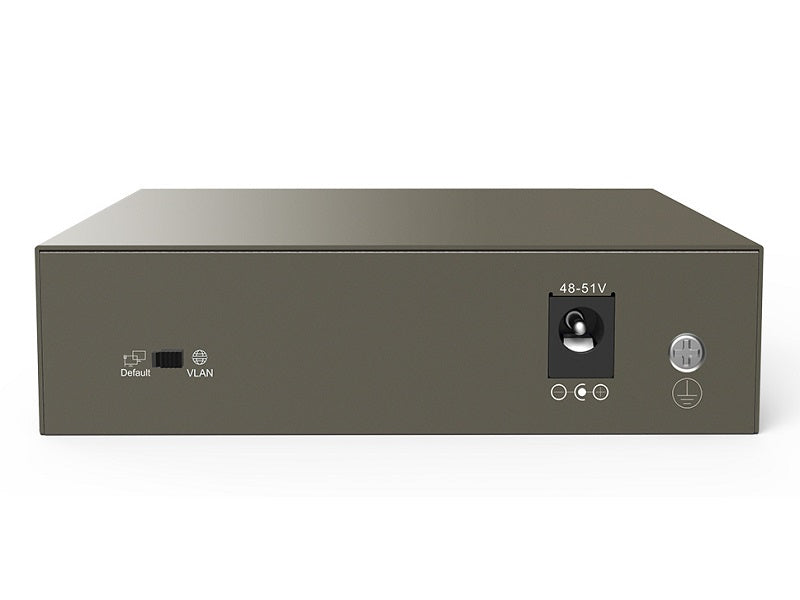

• VLAN: In this mode,1-4 ports of the switch cannot communicate with each other, but can communicate with the 5 port .Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing'a1`a3

Specifications

• LED Indicator 5* Link/Ack LED indicators
• 1 * Power LED indicator
• Interfaces 5*10/100/1000 Base-T Ethernet
• 1*10/100/1000 Base-T Ethernet Port(Data)
• Transmission media Recommended: CAT5/5e UTP or better
• Dimension 100.0mmx100.0mmx27.0mm
• Lightning protection for power: 6kV
• Air discharge: `b110kV
• Contact discharge: `b18kV
• Switch capacity 10 Gbps
• Packet forwarding rate 7.44Mpps
• Buffer 1M
• MAC address table 2K
• PoE budget Single port: AF: 15.4W, AT: 30W
• Whole device: 58W
• Input voltage 100`a3`ad240V AC 50/60Hz
• 51V /1.25A DC'a3`a8Power Adapter `a3`a9
• Mounting Desktop mounting: support
• Wall mounting: support
• Rack mounting:non-support
• Environment Operating Temperature: 0℃~45℃
• Storage Temperature: -40℃~70℃
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
• Certification FCC'a1`a2CE'a1`a2RoHS
