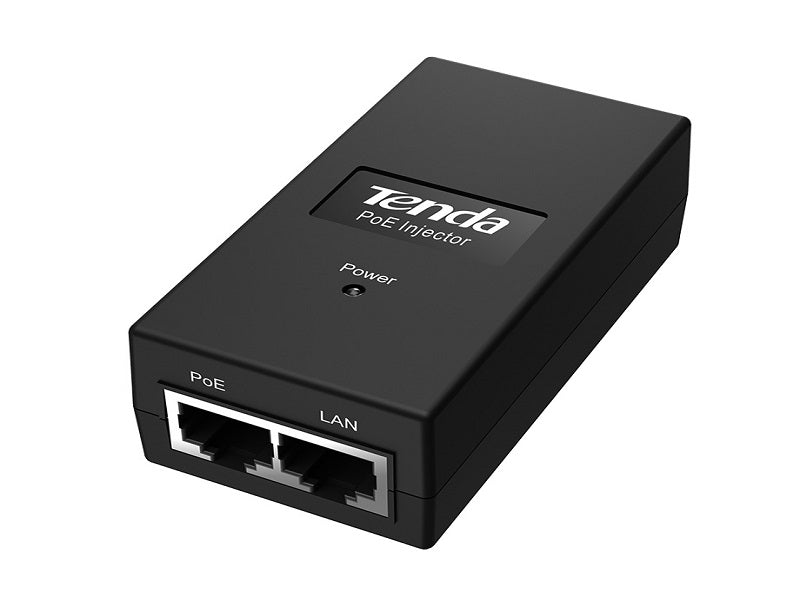

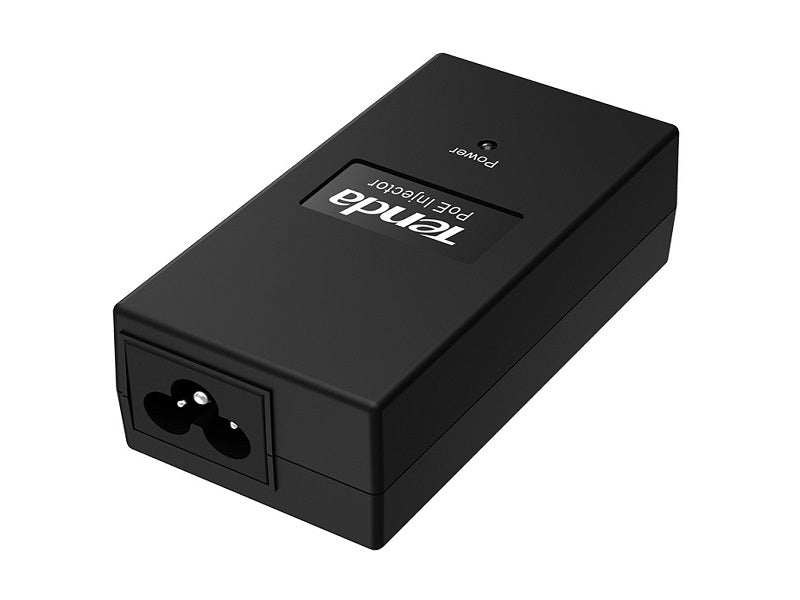

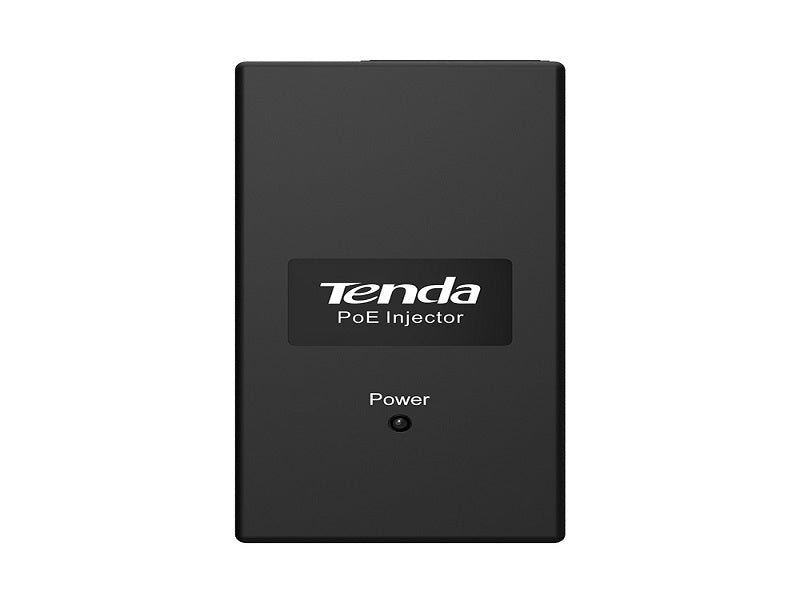

TENDA 48v PoE Injector

PoE injector PoE15F can realize the synchronous transmission of network data and power through an Ethernet cable (Cat.5 or better). The output power of each port is as high as 15W, which can be exported as PoE equipment (via RJ45 port). You can connect to ieee802.3af's PD, such as wireless AP, IP camera, IP phone, etc. In a sense, reducing installation costs and improving network performance is a good choice.

Key features

• LED Indicator Link/Act , PoE Status
• Forwarding mode Store-and-forward

Specifications

• Poe15f
• Network standards IEEE802.3`a1`a2IEEE802.3u
• Interfaces 1*10/100 Base-TX Ethernet ports(Data/PoE)
• 1*10/100 Base-TX Ethernet ports(Data)
• Transmission media Recommended: CAT5/5e UTP or better
• Dimension 84.5mm*44mm*29.8 mm
• Air discharge: `b110kV
• Contact discharge: `b18kV
• Transmission Rate 100Mbps
• PoE budget Single port: AF: 15.4W
• Whole device: 15W
• Power consumption 15W
• Input voltage 100`a3`ad240V AC 50/60Hz
• 48V/0.3A DC'a3`a8Power Adapter Output'a3`a9
• Mounting Desktop mounting: support
• Environment Operating Temperature: 0℃~45℃
• Storage Temperature: -40℃~70℃
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
• Certification FCC'a1`a2CE'a1`a2RoHS
