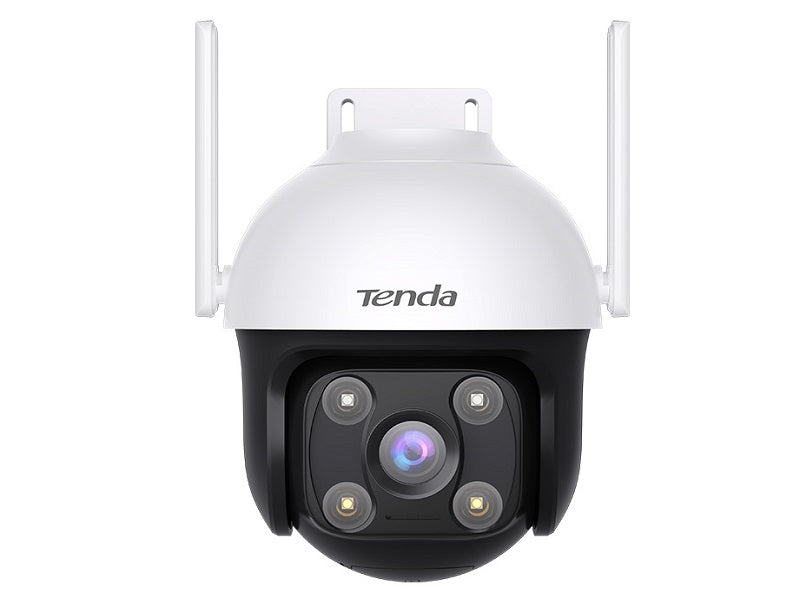

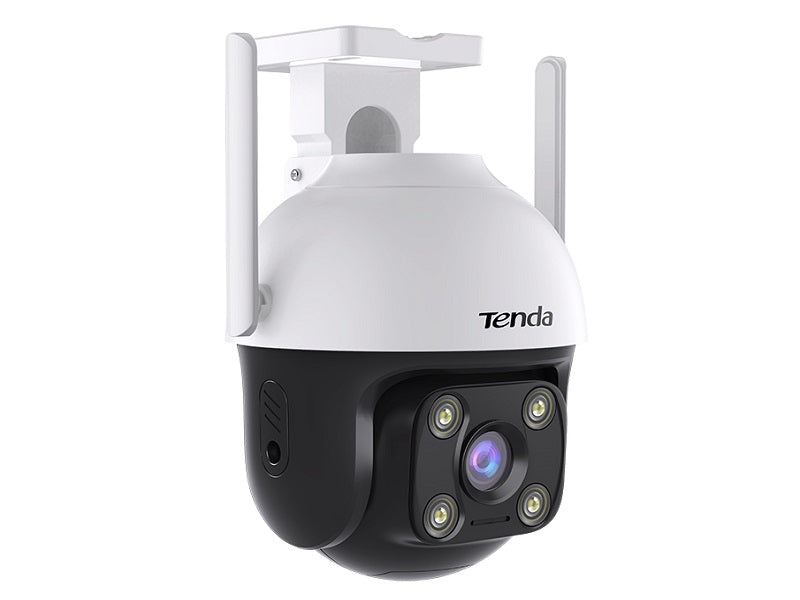

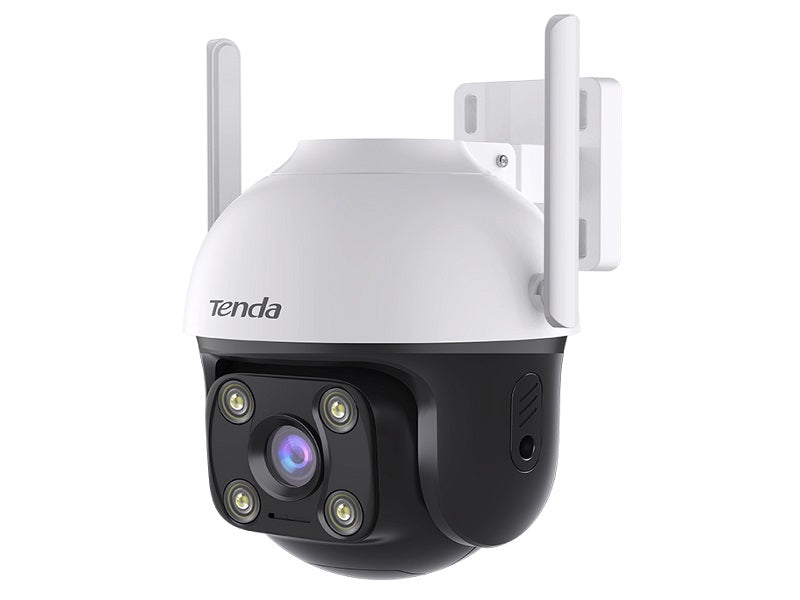

TENDA 4MP Outdoor Wi-Fi Pan/Tilt Camera

The Outdoor Wi-Fi Pan/Tilt Camera CH7-WCA, is a high-performance outdoor surveillance camera that integrates 360`b0 visual coverage'a3`acFull-Color night vision'a3`ac4MP resolution video, full-duplex two-way audio, human detection, vehicle detection, sound and light alarm functions. The product is mostly used for outdoor monitoring scenarios such as courtyard, farms and shops, etc. The users can access the video via wireless or wired connection to the Internet. FOV Horizontal FOV: 83`b0, Vertical FOV: 44`b0, Diagonal FOV: 98.6`b0.

Key features

• Day and Night ICR type
• Bracket Angle Adjustment /
• Supplementary Light Distance Up to 30 m/100 ft (depending on environment)
• Night Vision Mode Smart Mode, Full Color Mode, Black & White Mode
• Main Stream Resolution 2560 `d71440, 2304 `d71296, 1920 `d7 1080, 1280 `d7 720
• Sub Stream Resolution 640 `d7 360, 352 `d7 288
• Bit Rate Control CBR,VBR
• Audio Communication Two-way Audio, Voice Input
• Ethernet Port 1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port
• ONVIF Support
• Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, ARP, WebSockets
• Patrol Panoramic Patrol, Preset Patrol
• Antenna Dual external antennas
• Modulation DSSS/OFDM
• Smart Detection Motion Detection, Tempering Detection, Human Detection, Vehicle Detection
• Smart Linkage Sound&light Alert, Human Tracking

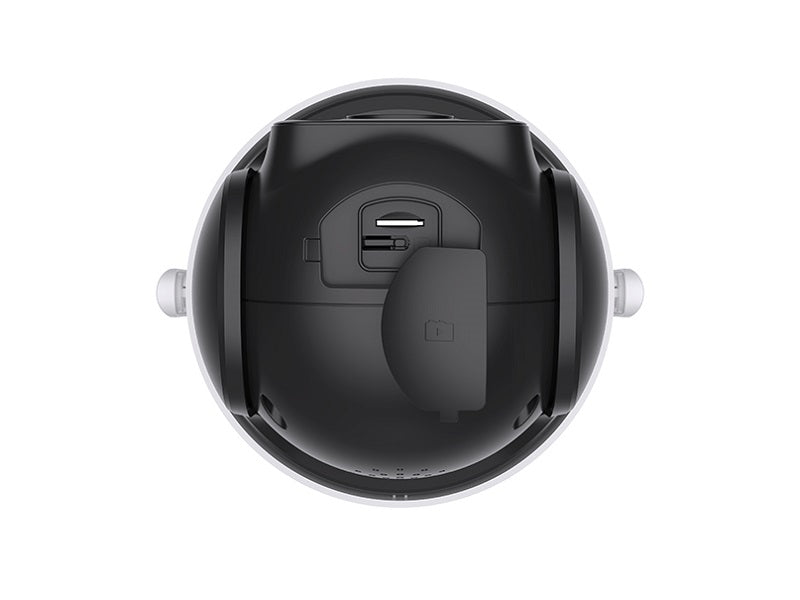

• Storage Built-in Micro SD Card Slot, Up to 256 GB
• Reset Button Support
• LED Indicator Dual Color (red & blue) LED Indicator
• Smart Integration Amazon Alexa
• Product Dimension 138 mm x 120 mm x 187 mm (5.4 `d7 4.7 `d7 7.4)
• Package Dimension 167 mm x 131 mm x 251 mm (6.6 `d7 5.2 `d7 9.9)
• Installation Method Wall Mounting, Ceiling Mounting, Pole Mounting
• Certification CE, RoHS, FCC, RCM, UKCA
• Installation Template
• Mounting Bracket
• Mounting Accessories Kit
• Waterproof Kit
• Quick Installation Guide

Specifications

• Image Sensor 1/3 Progressive Scan CMOS sensor
• Focal Length 4 mm
• Aperture F1.6
• Supplementary Light 2 IR Lights, 2 Spotlights
• IR Wavelength 850nm
• Video Encoding Format H.265, H.264
• Frame Rate 1-30fps, Default 20fps
• Bit Rate 512kbps -- 4096kbps
• Audio Encoding Format G.711A, G.711U, AAC
• Audio Sampling Rate 8 kHz
• Image Enhancement DWDR, BLC, HLC, 3D DNR
• Privacy Mask 4 Areas
• Web Browser Plug-in free live view: Chrome, Edge, Opera
• Pan Movement Range 0`b0--355`b0
• Tilt Movement Range 0`b0--90`b0
• Preset 6
• Wireless Standard IEEE 802.11 b/g/n
• Transmission Rate Up to 300 Mbps
• Channel Width 20/40 MHz
• Frequency Band 2.4GHz: 2412MHz-2472MHz(CH1-CH13)
• Transmit Power 2.4GHz: <0.092W(EIRP)
• Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
• DIY Audio 3 Customized Audios
• Power 12 V DC, 1A, `d85.5mm&`d82.1mm Power Plug
• Material Plastic
• Product Weight 426g (0.94lb)
• With Package Weight 840g (1.85lb)
• Protection Level IP65
• Temperature Operating Temperature: -30`b0C ~ 60`b0C (-22`b0F ~ 140`b0F)
• Storage Temperature: -40`b0C ~ 70`b0C (-40`b0F ~ 158`b0F)
• Humidity Operating Humidity: 10% ~ 95% RH (non-condensing)
• Storage Humidity: 3% ~ 95% RH (non-condensing)
• Power Adapter (cord length: 3m)
