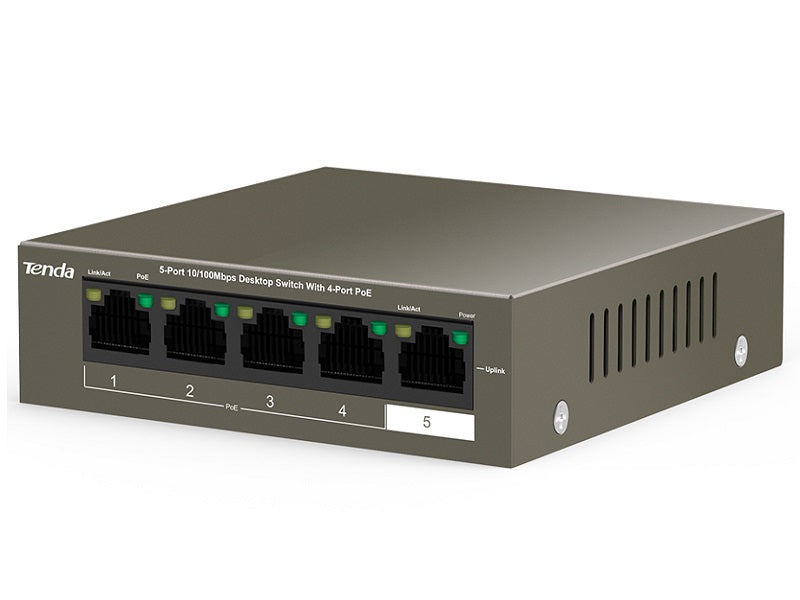

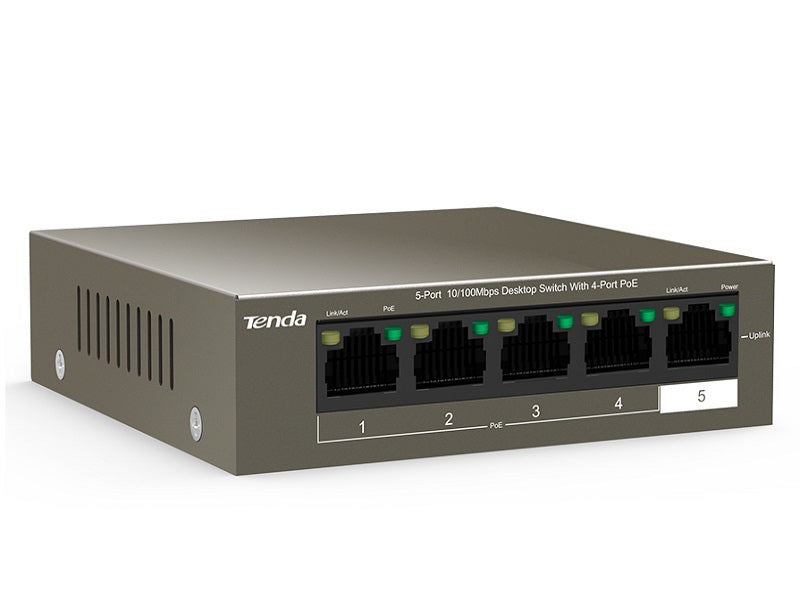

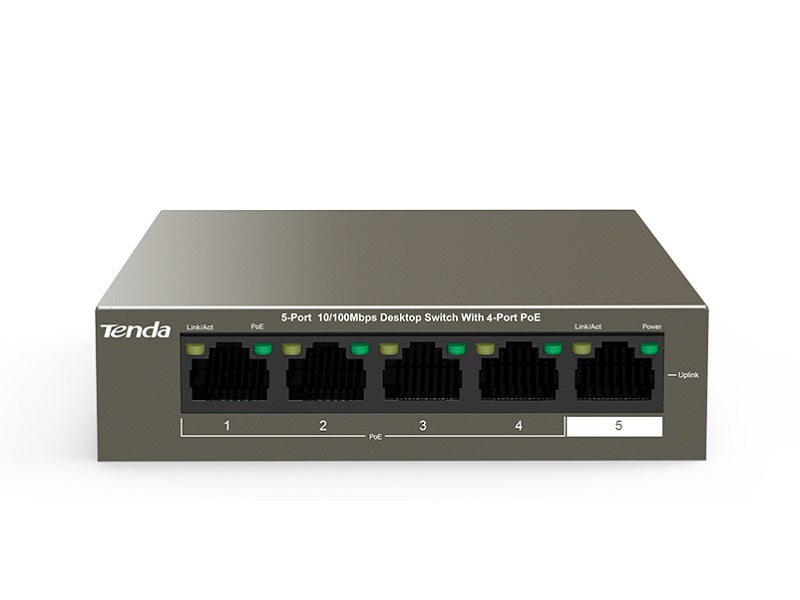

TENDA 5-Port Desktop Switch With 4 PoE

TEF1105P-4-63W is a Tenda PoE switch that offers 5 10/100 Mbps Base-TX RJ45 ports. Up to 250 meters long distance transmission, beyond hundred meters transfer limit. 6KV lightning protection PoE switch is the real monitoring private switch. Ports 1-4 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides 30W maximum PoE output a single port and 58W the whole device. Funtions Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other .

Key features

• Network standards IEEE 802.3`a1`a2 IEEE 802.3u'a1`a2IEEE 802.3x'a1`a2IEEE 802.3af'a1`a2IEEE 802.3at
• Level of protection Lightning protection for ports: 6kV
• Forwarding mode Store-and-forward

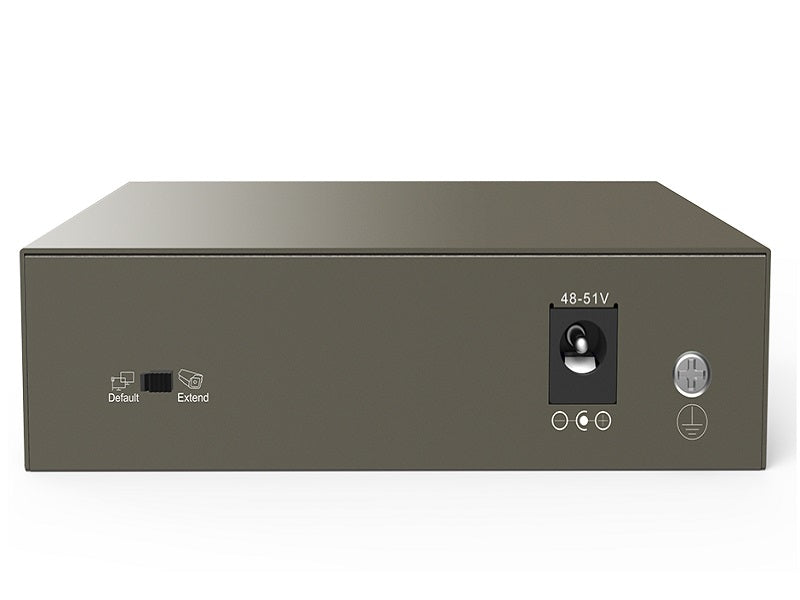

• Extend Mode: If the extend mode is enabled, the transmission distance of both power and data will extend up to 250m(10Mbps), this funcation can replace the extender and parts of the Fiber. It will extend the distance of the whole system and save the cost of the project.

Specifications

• LED Indicator 5* Link/Ack LED indicators
• 1 * Power LED indicator
• Interfaces 4*10/100 Base-TX Ethernet Ports(Data/Power)
• 1*10/100 Base-TX Ethernet Port(Data)
• Transmission media Recommended: CAT5/5e UTP or better
• Dimension 100.0mmx100.0mmx26.0mm
• Lightning protection for power: 6kV
• Air discharge: `b110kV
• Contact discharge: `b18kV
• Switch capacity 1Gbps
• Packet forwarding rate 0.74Mpps
• Buffer 448K
• MAC address table 1K
• PoE budget Single port: AF: 15.4W, AT: 30W
• Whole device: 58W
• Input voltage 100`a3`ad240V AC 50/60Hz
• 51V /1.25A DC'a3`a8Power Adapter `a3`a9
• Mounting Desktop mounting: support
• Wall mounting: support
• Rack mounting:non-support
• Environment Operating Temperature: 0℃~45℃
• Storage Temperature: -40℃~70℃
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
• Certification FCC'a1`a2CE'a1`a2RoHS
