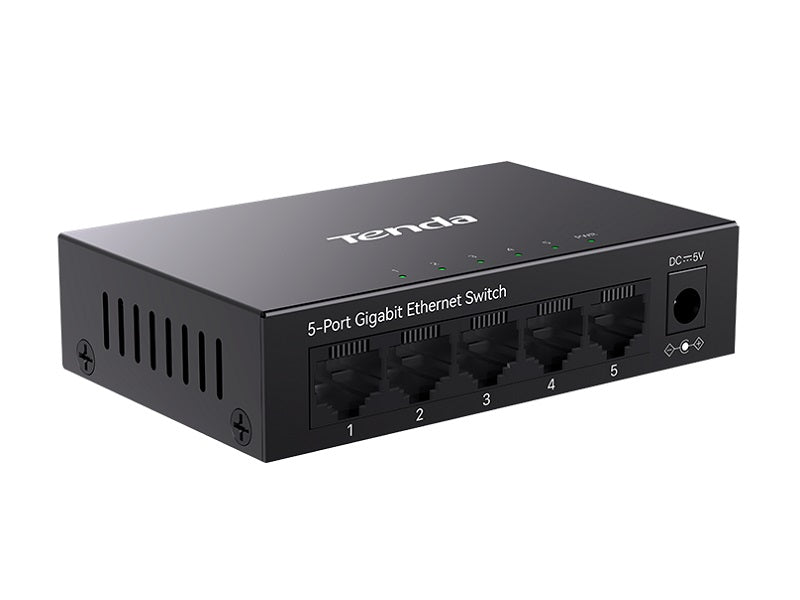

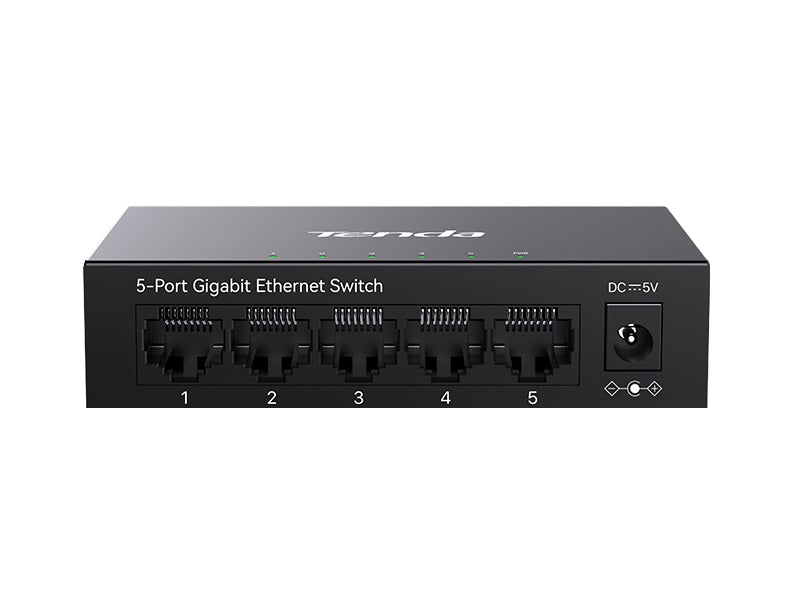

TENDA 5-Port Gigabit Ethernet Switch

TEG1005M is an unmanned layer 2 gigabit switch designed for security surveillance. It provides five 10/100/1000 Mbps auto-negotiation ports that support line`02speed forwarding at up to 1000 Mbps. With a fine steel housing, it features excellent durability and heat dissipation performance. 6KV Lightning protection is offered to each port to effectively prevent severe lightning damages to the switch. So, it is a right choice for small and medium sized security surveillance projects in SMBs, parks, plants, renting rooms, and so on. Choose TEG1005M for a faster and more stable gigabit surveillance network. Network standards IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab.

Key features

• Metal
• Link/Act
• Forwarding mode Store-and-forward

Specifications

• Interfaces (5)1GE RJ45 ports
• Transmission media Recommended: CAT5/5e UTP or better
• Dimensions 100mm*64mm*25mm
• Material Metal
• Level of protection Port: 6 KV
• Switch capacity 10Gbps
• Forwarding rate 7.44Mpps
• Power method 100-240V AC 50/60Hz
• Power consumption Max:<2.5W
• Mounting Desktop mounting: support
• Wall mounting: support
• Environment Operating Temperature: 0℃~45℃
• Storage Temperature: -40℃~70℃
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
