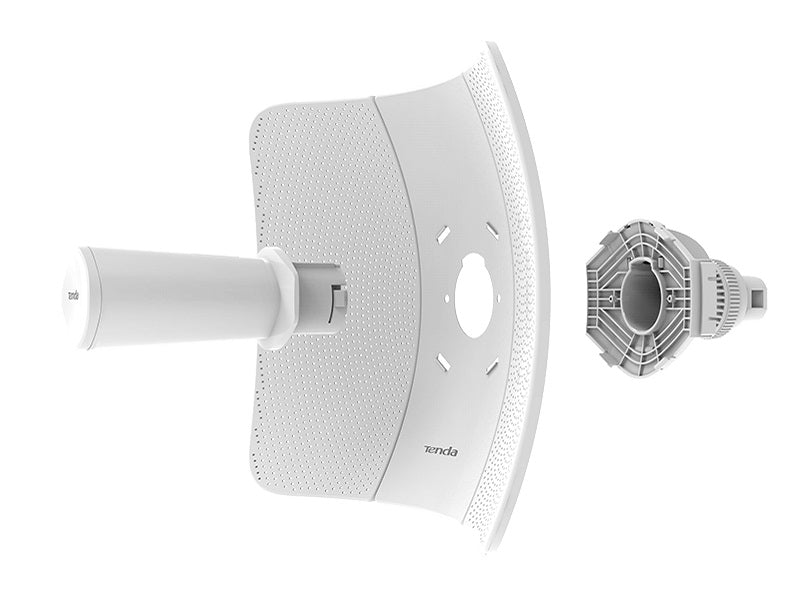

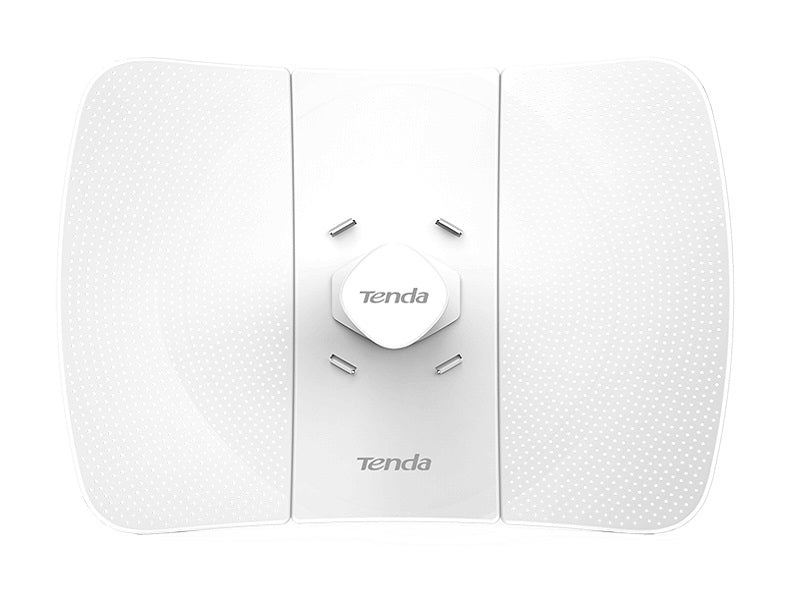

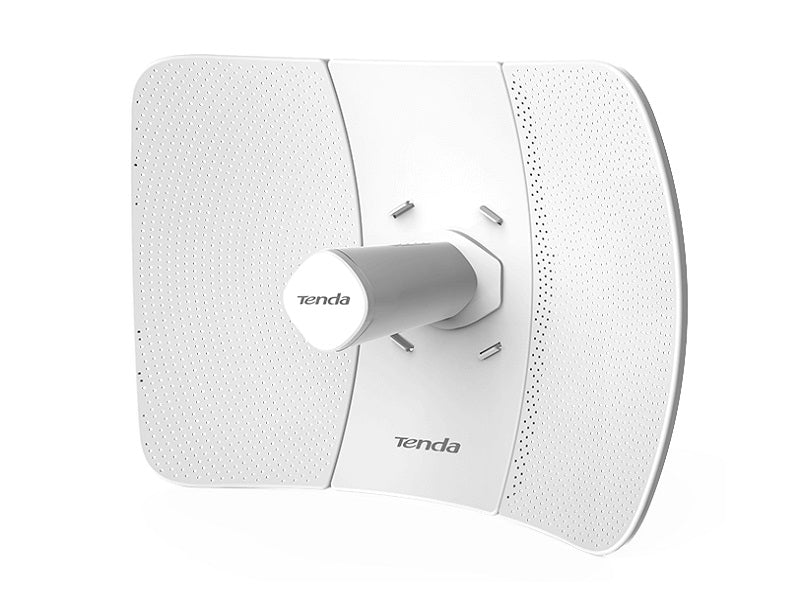

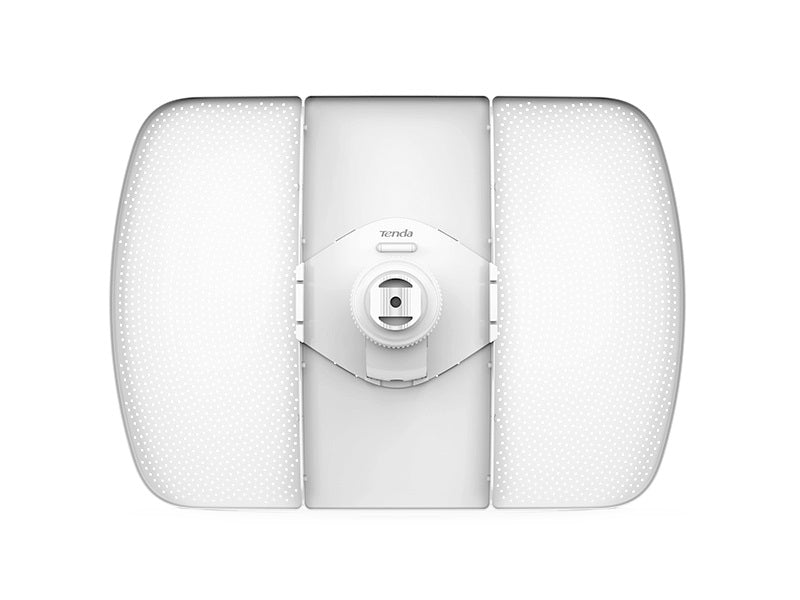

TENDA 5Ghz 23dbi 11ac Outdoor CPE
TENDA 5Ghz 23dbi 11ac Outdoor CPE
TENDA
R 999R 1,499
Estimated delivery
2–4 working days
In stock
FREE NATIONWIDE DELIVERY
on orders over R 500
on orders over R 500
Quantity
In stock
When do I get it?
Estimated delivery times depend on where you are. Your exact date is confirmed at checkout.
| Delivery destination | Delivery time |
|---|---|
| Cape Town, Durban, Johannesburg & Pretoria | 2–4 working days |
| Regional areas | 5–6 working days |
| Remote areas | 3–7 working days |
- Interest Free Payments available
- Hassle Free Returns within 7 days
- 6-month limited warranty
Description
O8 5GHz 23dBi 11ac Outdoor CPE is designed to PtP and PtMP solutions for private ISP wireless connectivity, CCTV surveillance and data transmission. It features with 23dBi directional vertical polarization antenna to provide an efficient way to pick up and maintain a stable long-distance connectivity up to 20km. Adopt of auto-bridging technology, two CPE can connect to each other automatically to make it easy to setup. Application Scenarios PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance.
Key features
- Deployment Pole Mount
- Private TDMA Protocol TD-MAX
- Antenna Polarization Vertical Polarization
- GND /
- Passive PoE Passive power over ethenet via PoE/LAN(✚4,5pins,-7,8pins )
- TDMA Support
- Enable/Disable Wireless Radio Support
- SSID Hidden Support
- Wireless Client isolation Support
- SSID Isolation Support
- Channel Shift Support
- Wireless Access Control Support
- Weak Signal Client Limitation Support
- WMM Capable Support
- APSD Capable Support
- Transparent Bridge Support
- VLAN Tagging for SSID Support
- DHCP Server Support
- Remote Web access Support
- Schedule Reboot Support
- Page Timeout Support
- Ping Watchdog Support
- Dyndns noip, dyndns.org
- Network Diagnoses Ping, Traceroute, Signal Scan
- Time and Date Setting Support
- Firmware upgrade Support
- Backup/Restore Configuration Support
- Username Managerment Support
- Managed By Controller PC Software -- CPE Assistant
- Package Contents 1*5GHz 23dBi 11ac Outdoor CPE O8
- Default Login Username admin
- Default Login Password admin
Specifications
- Model O8
- Dimension 391.5*280*223mm
- Frequency Range 5GHz
- Compliant Standards IEEE 802.11a/n/ac
- Maximum Wireless Rate 433Mbps
- Interfaces 1*10/100Mbps Ethernet Port
- Antennas Gain 23dBi
- Antenna Beamwidth Vertical: 10`b0 Elevation: 10`b0
- Reset Button 1
- Power Consumption 5.5W
- Waterproof Level IP65
- LED Indicator PoE/LAN,LED1,LED2,LED3
- Power Method 12V1A Passive PoE
- Lightning Protection 6000V
- Voltage range: 9-35V DC
- Reception Sensitivity 11a 6Mbps -95dBm'b11.5dBm
- 11n MCS7 HT20 -72dBm'b11.5dBm
- 11ac MCS9 HT80 -64dBm'b11.5dBm
- Operating mode AP/Station/WISP/P2MP/WDS Repeater/Router
- Channel Bandwidth 20/40/80MHz
- Transmission Power Adjustable power by 1dBm
- Wireless Security 64/128 WEP,WPA-PSK,WPA2-PSK,WPA
- VPN Pass-Through PPTP,L2TP
- 1*Power Adapter
- 1*PoE Injector
- 1*Quick Installation Guide
- Operation Temperature -30℃ ~ 60℃
- Storage Temperature -40℃ ~ 70℃
- Operating Humidity 10%~90% non-condensing
- Storage Humidity 10%~90% non-condensing
- Default login IP 192.168.2.1
Frequently Bought Together Frequently bought
Product Information
| Categories | Networking / Specials / Tenda / Tenda Access Points |
| Brand | Tenda |
| Model | O8 |
| Frequency | 5GHz |
| Standard | IEEE 802.11a/n/ac |
| Wireless Rate | Up to 433Mbps |
| Antenna Gain | 23dBi Vertical Polarization |
| Ports | 1 x 10/100Mbps Ethernet |
| Power Method | 12V 1A Passive PoE |
| Power Consumption | 5.5W |
| Lightning Protection | 6000V |
| Waterproof | IP65 |
| Deployment | Pole Mount |
| Dimensions | 391.5 x 280 x 223mm |
| Operating Temperature | -30 to 60C |
| Certification | FCC, CE, RoHS |
| Barcode | 6932849435023 |
