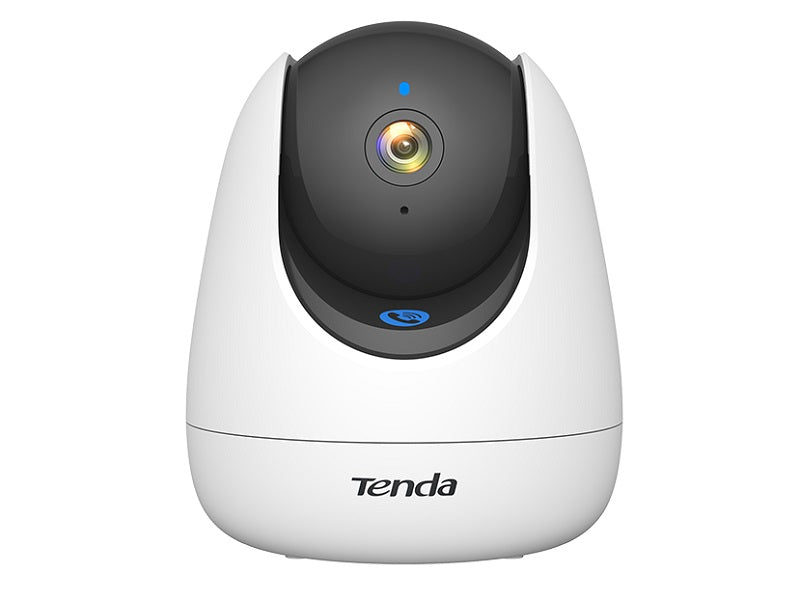

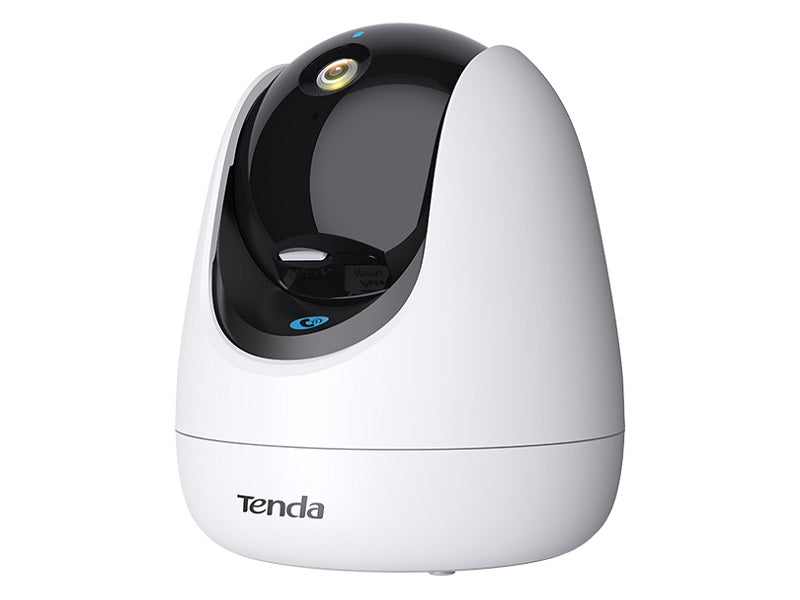

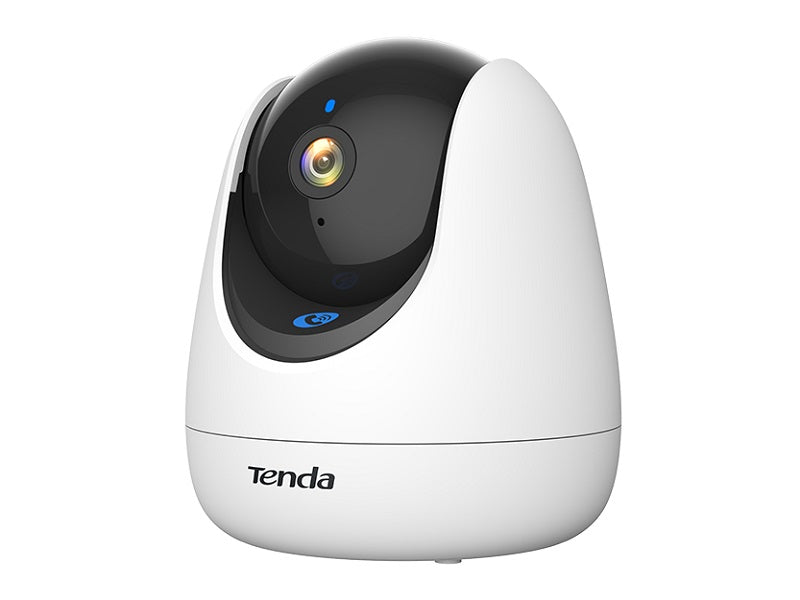

TENDA 5mp Security Wi-Fi Pan/Tilt Camera

The Pan/Tilt Security Camera CP7 is a high-performance home monitoring camera that integrates such functions as 360 `b0 visual coverage, Wi-Fi 6, 5MP video, human detection, cry detection, one-touch call, two-way audio, sound & light alarm, DIY audio and USB-C power supply. You can connect to the network via Wi-Fi or wired ethernet. It is commonly used in indoor monitoring scenarios, such as homes, shops, offices and classrooms. FOV Horizontal : 83.3`b0, Vertical : 51.3`b0, Diagonal : 90.6`b0.

Key features

• Day and Night ICR type
• Supplementary Light Distance Up to 10 m/32 ft (depending on environment)
• Night Vision Mode Black & White Mode
• Main Stream Resolution 2880 x 1620`a3`ac2560 x 1440`a3`ac2304 `d7 1296, 1920 `d7 1080, 1280 `d7 720
• Sub Stream Resolution 640 x 360 , 352 x 288 , 320x240
• Bit Rate Control CBR,VBR
• Audio Communication Two-way Audio, One-touch Call

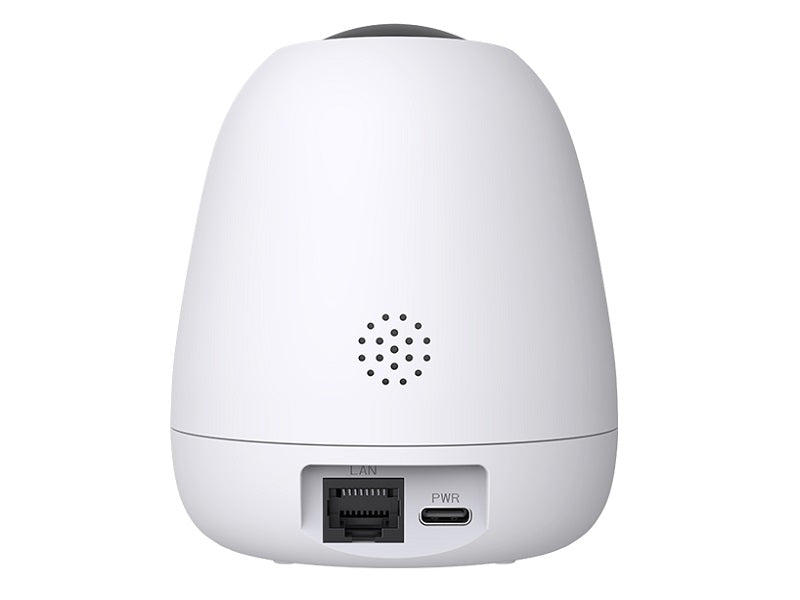

• Ethernet Port 1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port
• ONVIF Support
• Protocols TCP/IP, UDP, ICMP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, ARP
• Web Browser Chrome, Edge, Opera
• Patrol Panoramic Patrol, Preset Patrol
• Antenna Internal antenna
• Modulation DSSS/OFDM/OFDMA
• Smart Detection Motion Detection, Tampering Detection, Human Detection, Cry Detection
• Smart Linkage Sound&light Alert, Human Tracking
• Storage Built-in Micro SD Card Slot, Up to 512GB
• Reset Button Support
• LED Indicator Dual Color (red & blue) LED Indicator
• Smart Integration Amazon Alexa
• Product Dimension 103mm x 88mm x 88mm (4.1 `d73.5 `d7 3.5)
• Package Dimension 100mm x 100mm x 165mm (4.0 `d74.0 `d7 6.5)
• Installation Method Desktop, Ceiling Mounting
• Certification CE, RoHS, FCC, RCM, UKCA
• Installation Template
• Mounting Bracket
• Mounting Accessories Kit
• Quick Installation Guide

Specifications

• Image Sensor 1/3 Progressive Scan CMOS sensor
• Focal Length 4mm
• Aperture F2.0
• Supplementary Light 2 IR Lights
• IR Wavelength 850nm
• Video Encoding Format H.265, H.264
• Frame Rate 1-30fps,Default 20fps
• Bit Rate 512kbps -- 4096kbps
• Audio Encoding Format G.711A, G.711U, AAC
• Audio Sampling Rate 8 kHz
• Image Enhancement DWDR, BLC, HLC, 3D DNR
• Privacy Mask 4 Areas
• Pan Movement Range 0`b0--355`b0
• Tilt Movement Range -65`b0--90`b0
• Preset 6
• Wireless Standard IEEE 802.11 b/g/n/ax
• Transmission Rate Up to 287Mbps
• Channel Width 20/40 MHz
• Frequency Band 2.4GHz: 2412MHz-2472MHz(CH1-CH13)
• Transmit Power 2.4GHz: <0.1W(EIRP)
• Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPA3‐SAE
• DIY Audio 3 Customized Audios
• Power 5 V 1A, Type-C Power Plug
• Material Plastic
• Product Weight 200g (0.44lb)
• With Package Weight 370g (0.82lb)
• Temperature Operating Temperature: -10`b0C ~ 45`b0C (14`b0F ~ 113`b0F)
• Storage Temperature: -40`b0C ~ 70`b0C (-40`b0F ~ 158`b0F)
• Humidity Operating Humidity: 10% ~ 95% RH (non-condensing)
• Storage Humidity: 3% ~ 95% RH (non-condensing)
• Power Adapter (cord length: 1.5m)
