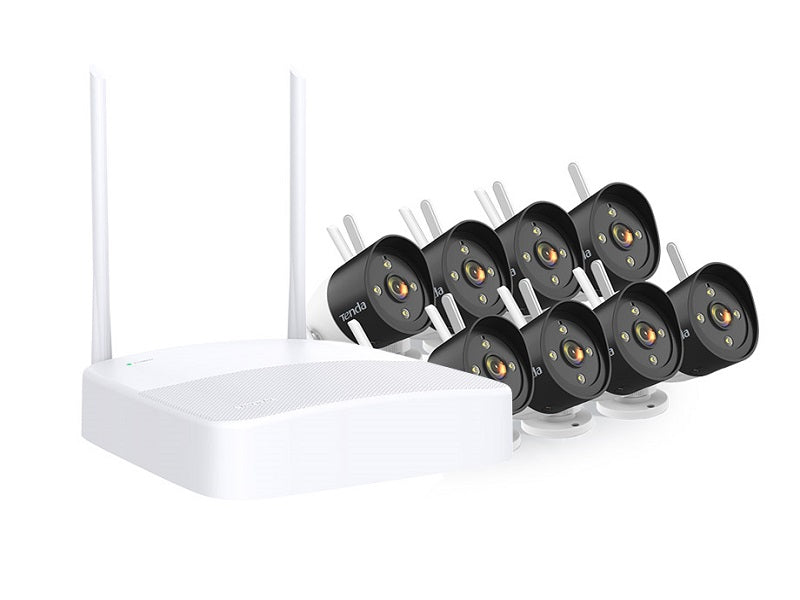

TENDA 8 Channel 3mp Wi-Fi Camera Kit

K8W-3TC 8 Channel Wireless HD Video Security Kit contains one Wi-Fi Network Video Recorder and four Wi-Fi Cameras. The Kit supports Wi-Fi automatic connection and networking, 3MP super HD full-color video recording, S-motion detection, sound and light alert, H.265 high-performance video compression, and you can view video via App. It provides wireless video monitoring solution for single-family houses, large households, shops, restaurants, factories, offices and farms. HDMI Output 1-ch, 2K(2560 `d7 1440)/30HZ, 1920 `d7 1080/60Hz, 1280 `d7 1024/60Hz, 1280 `d7 720/60Hz.

Key features

• VGA Output 1-ch, 1920 `d7 1080/60Hz, 1280 `d7 1024/60Hz, 1280 `d7 720/60Hz, HDMI/VGA simultaneous output
• Recording Resolution 3MP, 1080P, 720P, VGA, nHD, 4CIF, CIF
• Stream Type Video, Video & Audio
• Record Mode Normal, Alarm
• Playback Mode Instant, Channel, File, Tag
• Backup Mode USB device
• Ethernet Port 1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port
• Network Protocol HTTP, HTTPS, WebSockets, TCP/IP, IPv4, RTSP, UDP, NTP, DHCP, DNS, DDNS
• Mobile Client Supports iOS, Android
• Antenna Dual external antennas
• Dimension 200 mm `d7 200 mm `d7 48 mm (7.9" `d7 7.9" `d7 1.9")
• Certification SRRC, CE, FCC, RoHS, UKCA
• Installation Method Desk mounting, wall mounting
• Max. Resolution 2304 x 1296
• Day and Night ICR type
• Digital Wide Dynamic Range Support
• Backlight Compensation Support
• Highlight Compensation (HLC) Support
• Infrared Supplementary Light Distance 30 meters (depending on environment)
• Night Vision Mode Smart Mode, Full Color Mode, Black & White Mode
• FOV Horizontal FOV: 86.1`b0, Vertical FOV: 46`b0, Diagonal FOV: 104`b0
• Main Stream 20fps (2304 `d71296, 1920 `d7 1080, 1280 `d7 720)
• Sub Stream 20fps (640 `d7 360, 352 `d7 288)
• Motion Detection Support
• S-motion Detection Support
• Sound and Light Alert Support
• LED Indicator 1 x Dual color (red & blue) LED indicator
• Dimension 175 mm x 72 mm x 72 mm (6.9" `d7 2.9" `d7 2.9")
• Installation Method Wall mounting, ceiling mounting
• Certification CE, FCC, RoHS, UKCA
• Dimension 535mm x 280mm x 305mm (21.0" `d7 11.0" `d7 12.0")
• Package Contents Wi-Fi Network Video Recorder x 1
• Screw kit (Wi-Fi network video recorder) x 1

Specifications

• IP Video Input 8-ch
• IP Video Resolution Up to 3MP
• Input Bandwidth 60 Mbps
• Output Bandwidth 60 Mbps
• Video Decoding Format H.265, H.264
• Audio Decoding Format G.711A, G.711U
• Decoding Capability 4-ch@1080P (30 fps)
• Sync Playback Up to 8-ch
• Web Browser Plug-in free live view: Chrome, Edge, Opera
• Wireless Standard IEEE 802.11b/g/n
• Frequency 2.4 GHz
• Transmission Rate Up to 144 Mbps
• HDD Interface 1 SATA 3.0 interface
• Capacity Up to 10 TB capacity for each HDD
• USB Port 1 x USB 2.0
• Power 12 V DC, 2 A
• Weight (Without HDD) 510 g (1.1lb)
• Temperature Operating Temperature: 0`b0C ~ 40`b0C (32`b0F ~ 104`b0F)
• Storage Temperature: -30`b0C ~ 70`b0C (-22`b0F ~ 158`b0F)
• Humidity Operating Humidity: 10% ~ 90% RH (non-condensing)
• Storage Humidity: 5% ~ 95% RH (non-condensing)
• Image Sensor 1/2.7" CMOS sensor
• Digital Noise Reduction 3D DNR
• Supplementary Light 2 IR lights, 2 spotlights
• Lens Type 4 mm@F1.6
• Video Encoding Format H.265, H.264
• Audio Encoding Format G.711A, G.711U
• Audio Sampling Rate 8 kHz
• Button 1 x Reset button
• Power 12 V DC, 1 A
• Weight 226 g (0.5lb)
• Protection Level IP66
• Temperature Operating Temperature: -30`b0C ~ 60`b0C (-22`b0F ~ 140`b0F)
• Storage Temperature: -40`b0C ~ 70`b0C (-40`b0F ~ 158`b0F)
• Humidity Operating Humidity: 10% ~ 95% RH (non-condensing)
• Storage Humidity: 3% ~ 95% RH (non-condensing)
• Weight 6.0 kg (13.2lb)
• Power adapter (12 V 2 A) x 1
• Mouse x 1
• Quick installation guide x 1
• Wi-Fi Cameras x 8
• Power adapters (12 V 1 A) x 8
• Screw kits (Wi-Fi camera) x 1
• Installation templates x 8
• Waterproof kits x 8
• Ethernet cable x 1
• Screwdriver x 1
• HDMI cable x 1
• Surveillance sticker x 1
