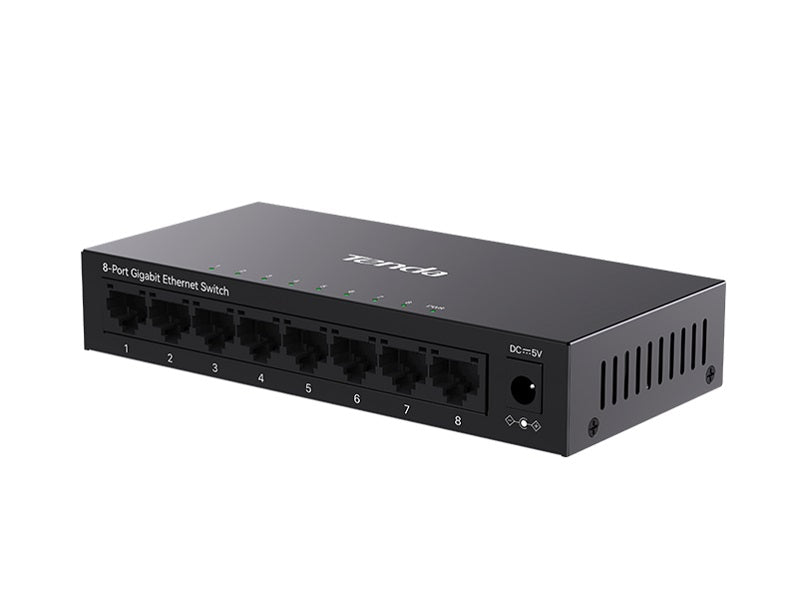

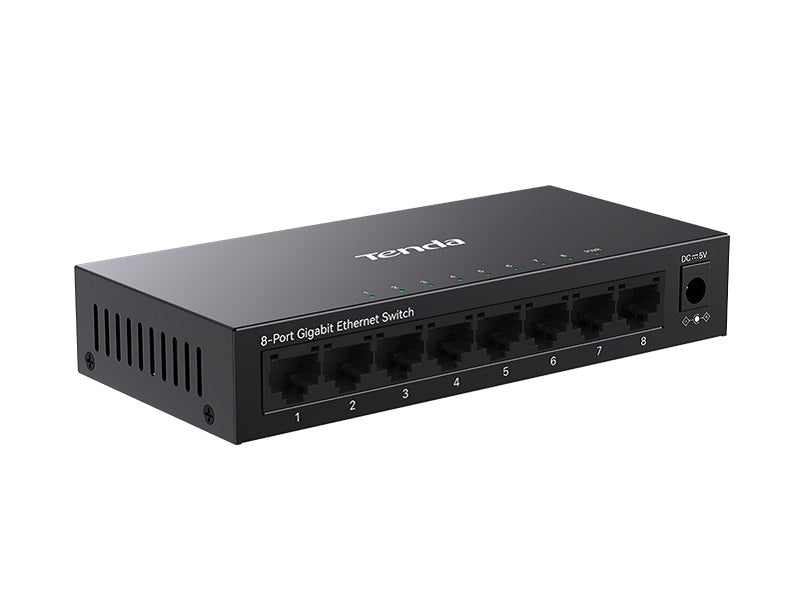

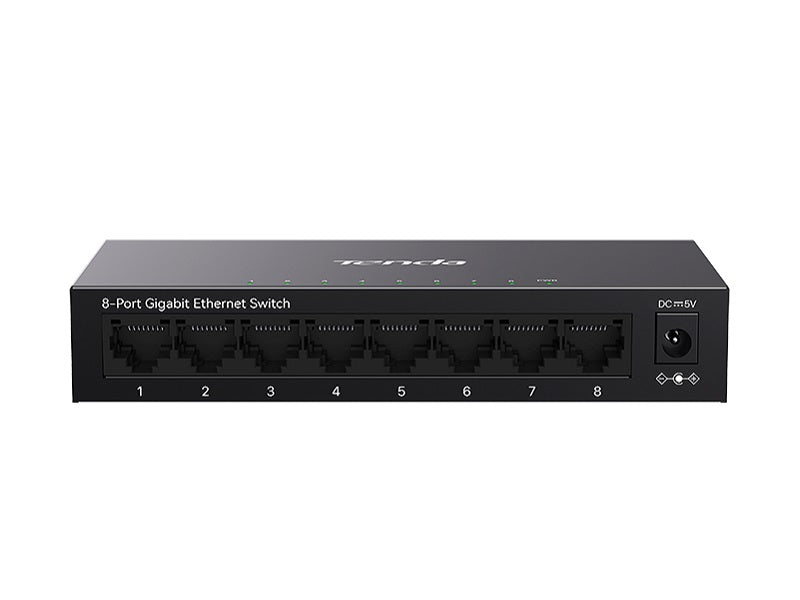

TENDA 8-Port Gigabit Ethernet Switch

TEG1008M is a high-performance 8-port full Gigabit Ethernet switch designed for Tenda's high-speed cascading scenarios for small and medium-sized surveillance, small and medium-sized business-es. Designed with a mini steel shell, it does not take up space and has a strong heat dissipation. Provides 8*10/100/1000 Mbps auto-negotiation ports, which increases transmission rate by 10 times, improves large file forwarding rate, and effectively solves problems such as video jams and picture loss in high-definition surveillance environments. The TEG1008M supports desktop/wall mount installation, plug and play, no setup, easy to use, and is ideal for improving network performance. Network standards IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab.

Key features

• Link/Act
• Forwarding mode Store-and-forward

Specifications

• Metal -10/100/1000
• Interfaces (8)1GE RJ45 ports
• Transmission media Recommended: CAT5/5e UTP or better
• Dimensions 140mm*66mm*25mm
• Material Metal
• Level of protection Port: N/A
• Power'a3°N/A
• Switch capacity 16Gbps
• Forwarding rate 12Mpps
• Power method 100-240V AC 50/60Hz
• Power consumption Max:<3W
• Mounting Desktop mounting: support
• Wall mounting: support
• Environment Operating Temperature: 0℃~45℃
• Storage Temperature: -40℃~70℃
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
