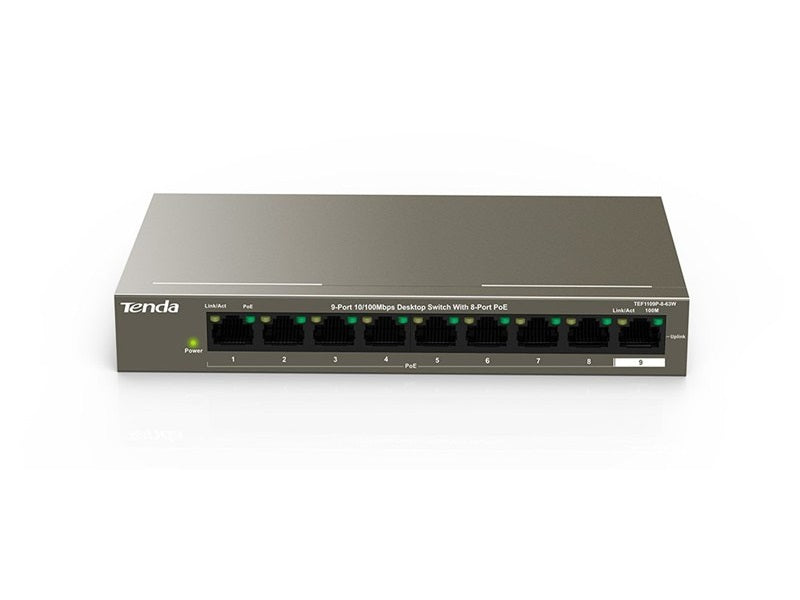

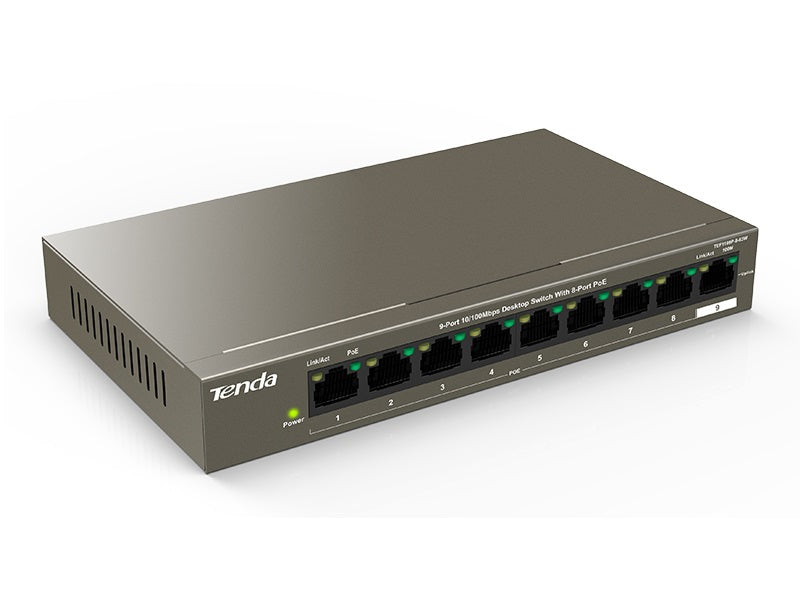

TENDA 9-Port Desktop Switch With 8 PoE

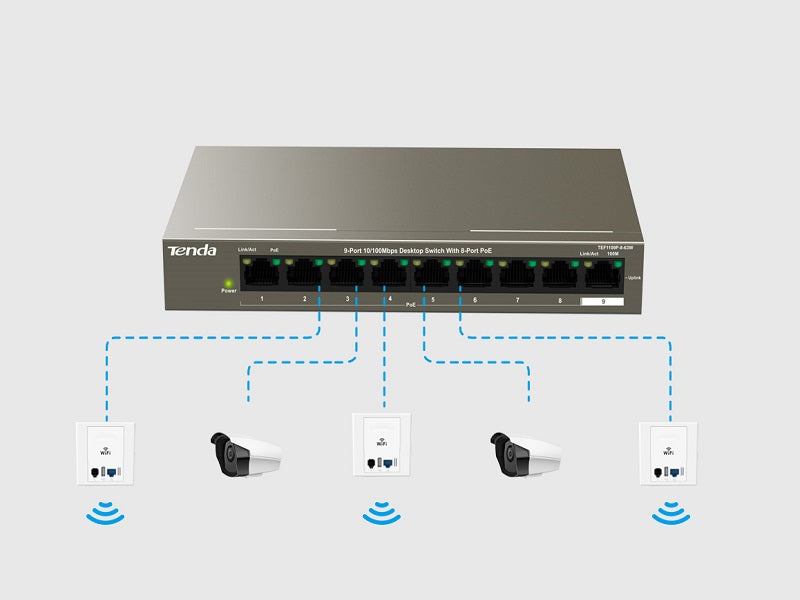

TEF1109P-8-63W has the network extension technology. Based on the original twisted pair, it can support up to 250 meters long distance transmission, breaking the hundred meters transfer limit. With 6KV lightning protection, it is the real monitoring private switch. Ports 1-8 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides a maximum PoE output power of 30W to each port and 58W to the whole device. Funtions Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.

Key features

• Network standards IEEE 802.3`a1`a2 IEEE 802.3u'a1`a2IEEE 802.3x'a1`a2IEEE 802.3af'a1`a2IEEE 802.3at
• Level of protection Lightning protection for ports: 6KV
• Forwarding mode Store-and-forward
• VLAN: ports 1 to 8 are isolated from each other, but can communicate with ports 9 (uplink port) respectively.

Specifications

• LED Indicator 9 * Link/Ack LED indicators
• 1 * Power LED indicator
• Interfaces 8*10/100 Base-TX Ethernet ports (Data/Power)
• 1*10/100 Base-TX Ethernet ports (Data)
• Transmission media Recommended: CAT5/5e UTP or better
• Dimension 177.5mmx104.0mmx26.0mm
• Lightning protection for power: 4KV
• Air discharge: `b110kV
• Contact discharge: `b18kV
• Switch capacity 1.8 Gbit/s
• Packet forwarding rate 1.34Mpps
• Buffer 1.25Mb
• MAC address table 4K
• PoE budget Single port: AF: 15.4W, AT: 30W
• Whole device: 58W
• Input voltage 100`a3`ad240V AC 50/60Hz
• 51V /1.25A DC'a3`a8Power Adapter `a3`a9
• Mounting Desktop mounting: support
• Wall mounting: support
• Rack mounting:non-support
• Environment Operating Temperature: 0℃~45℃
• Storage Temperature: -40℃~70℃
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
• Certification FCC'a1`a2CE'a1`a2RoHS
