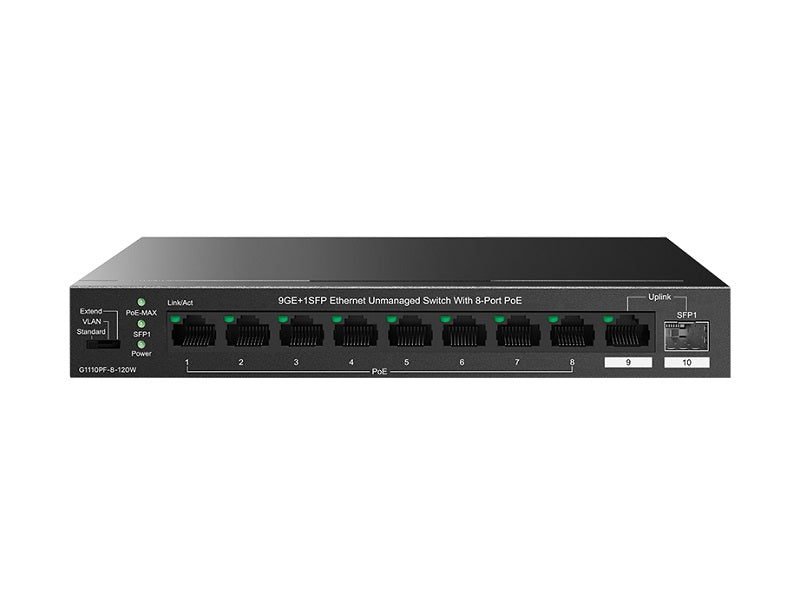

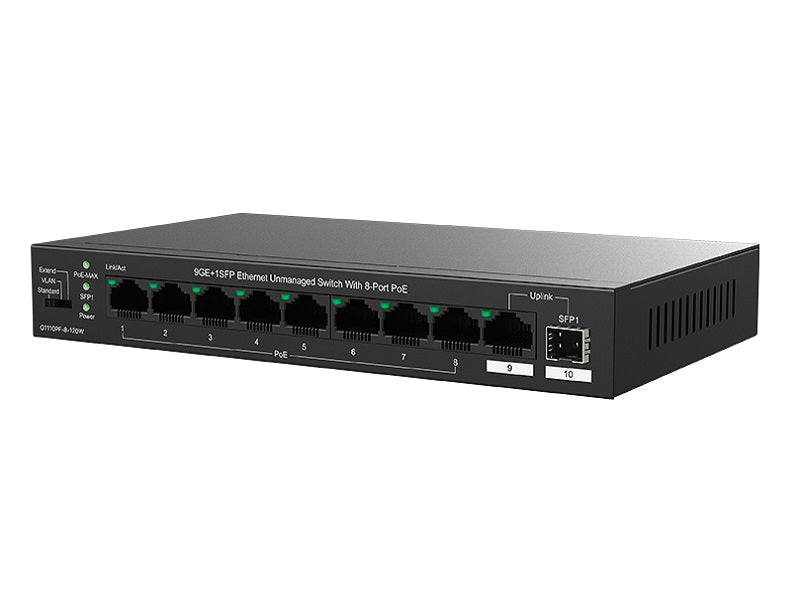

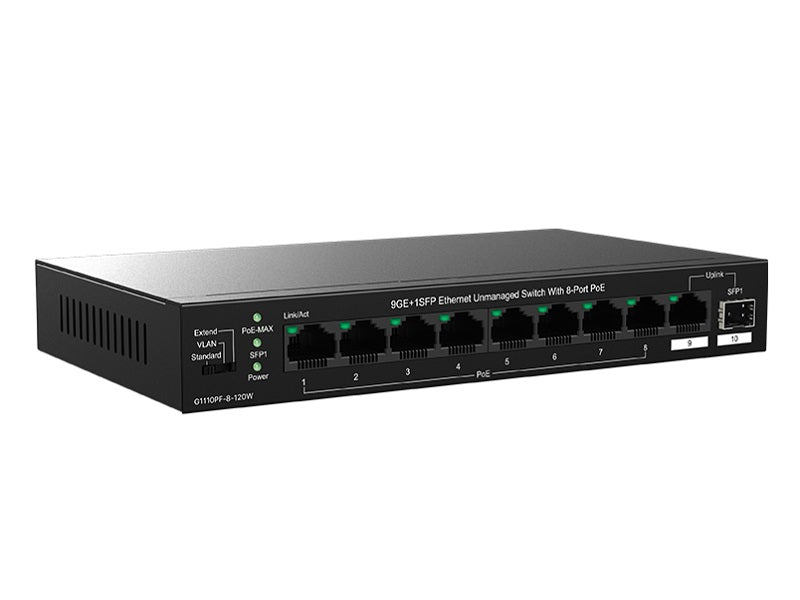

TENDA 9-Port Ethernet Switch With 8 PoE+

TEG1110PF-8-120W is a 10-port gigabit Ethernet unmanaged PoE switch independently designed by Tenda.It supports IEEE 802.3af/at standards for PoE power supply, capable of transmitting data and supplying power for 8 HD PoE cameras or gigabit APs. The maximum PoE output of a single port is 30 W and the total networking in such scenarios as SMEs, residential areas, indus power consumption of the switch is 120W. Supporting three-mode toggle, TEG1110PF-8-120W is suitable for complex networking deployment and is your ideal choice for video surveillance and gigabit wireless trial parks, hotels and schools. Standard: Default mode. In this mode, all ports can communicate with each other.

Key features

• Link/Act
• PoE MAX
• Forwarding mode Store-and-forward
• .2. VLAN: In this mode, ports 1 - 8 are isolated from each other, but all of them can communicate with port 9 and SFP1. This mode helps isolate DHCP broadcast and reduce broadcast storm.
• Extend: In this mode, ports 1 - 8 decrease to 10 Mbps in negotiation rate, but transmit up to 250 m in distance. All ports can communicate with each other

Specifications

• 1SFP
• Network standards IEEE 802.3/IEEE 802.3u/IEEE 802.3ab
• IEEE 802.3x/ IEEE 802.3af/IEEE 802.3at
• Interfaces (9)1GE RJ45 ports
• (1)1GE SFP ports
• Transmission media Recommended: CAT5/5e UTP or better
• Dimension 177.5mm*104mm*26mm
• Level of protection Port: 6 KV
• Power'a3°6 KV
• Switch capacity 20Gbps
• Packet forwarding rate 14.9Mpps
• PoE budget Single port: AF: 15.4W, AT: 30W
• Whole device: 92W
• Power consumption 120W
• Input voltage 100-240V AC 50/60Hz
• Mounting Desktop mounting: support
• Wall mounting: support
• Environment Operating Temperature: 0℃~45℃
• Storage Temperature: -40℃~70℃
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
