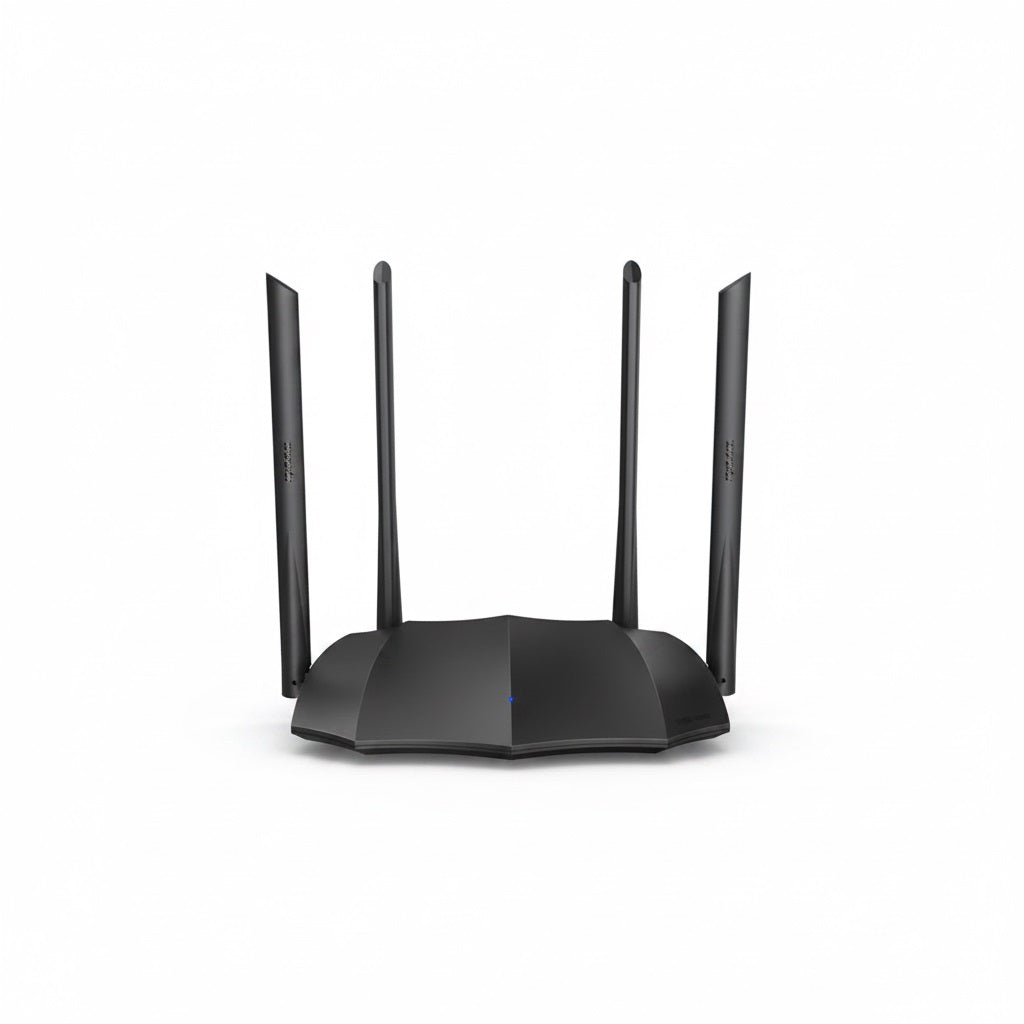

TENDA AC1200 AC8 Smart Dual-Band Wi-Fi

AC8 is a dual band gigabit wireless router specially designed for family with fibre access.Equipped with gigabit ports to support up to 1000 Mbps bandwidth access. The dual band provide 1167Mbps frequency, fully utilise the gigabit fibre.This router is equipped with 28nm 1 GHz CPU to provide better performance. The integrated dual-band technology combines both 2.4GHz and 5GHz under one Wi-Fi name; The 5GHz frequency band is set as priority and faster signal frequency would be allocated to you automatically by our dynamic optimization system. New designed 6 dBi antennas,meet the coverage requirement for small and medium household. AC8 also support broadband account automatic transfer and other features.

Specification
Standard&Protocol

IEEE802.3`ef¼ŒIEEE802.3u`ef¼ŒIEEE802.3ab

Interfaces

1*10/100/1000Mbps WAN port
3*10/100/1000Mbps LAN ports

Antenna

4*6dBi external dual band antennas

Button

1*WPS/Reset button

Power

Input`ef¼`9aAC 100-240V—50/60Hz
Output`ef¼`9aDC 9V 1A

Dimension

200x127x33.6mm(L*W*H)

LED Indicator

1*LED

Wireless

Wireless Standard

IEEE 802.11ac/a/n @5GHz
IEEE 802.11b/g/n @2.4GHz

Data Rate

5GHz: 867Mbps
2.4GHz: 300Mbps

Frequency

2.4GHz & 5GHz

Transmission Power

CE:
<20dBm(2.4G)
<23dBm(5G)
FCC:
<30dBm

Basic Features

SSID Broadcast: Enable/Disable
Transmission Power: high, medium, low
Beamforming
MU-MIMO

Wireless Security

WPA-PSK/WPA2-PSK, WPA/WPA2
Wireless Security : Enable /Disable

Software

Internet Connection Type

PPPoE, Dynamic IP, Static IP
Support automatic access detection
Supports broadband account automatic transfer

Operating Mode

Wireless Router Mode
Universal Repeater Mode
WISP Mode
AP Mode

DHCP Server

DHCP Server
DHCP Client List
DHCP Reservation

Virtual Server

Port Forwarding
DMZ Host
UPnP

Security

Client Filter`ef¼`88supports black list and white list`ef¼`89
Parental Control`ef¼`88supports black list and white list`ef¼`89
Remote Web Management

Firewall

Forbid UDP flood attack
Forbid TCP flood attack
Forbid flood attack
Forbid WAN PING from internet

DDNS

Support DynDNS, 88ip

VPN

IPsec pass through
PPTP pass through
L2TP pass through
PPTP client
L2TP client

Special Features

PPPoE Username/password Clone
Smart WiFi Schedule
Smart Power Saving
Smart LED on/off
Tenda Cloud
Tenda App

Others

Broadband management
MAC address clone
System Log
Backup & Restore configurations
Firmware upgrade from local
