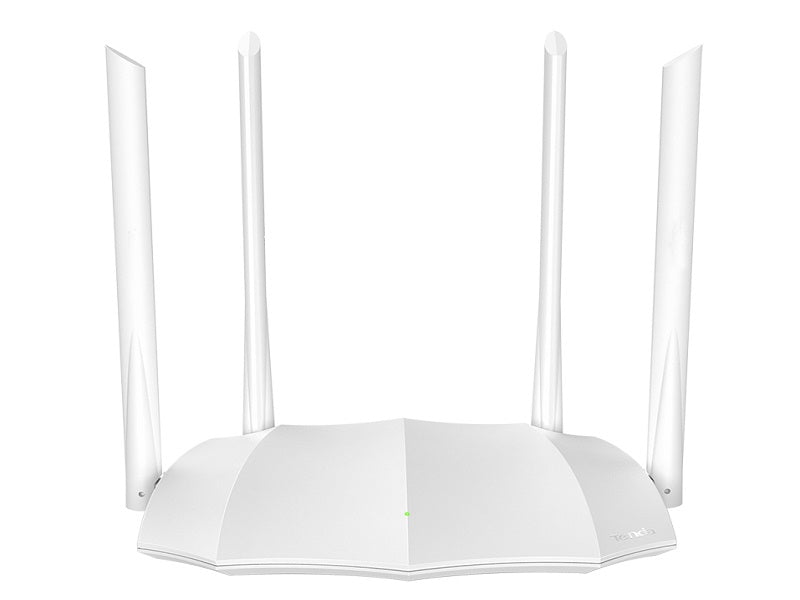

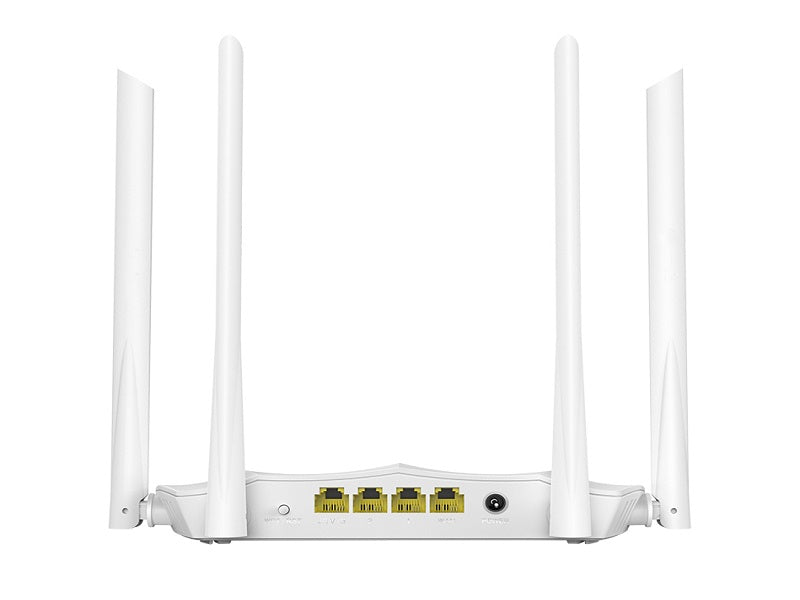

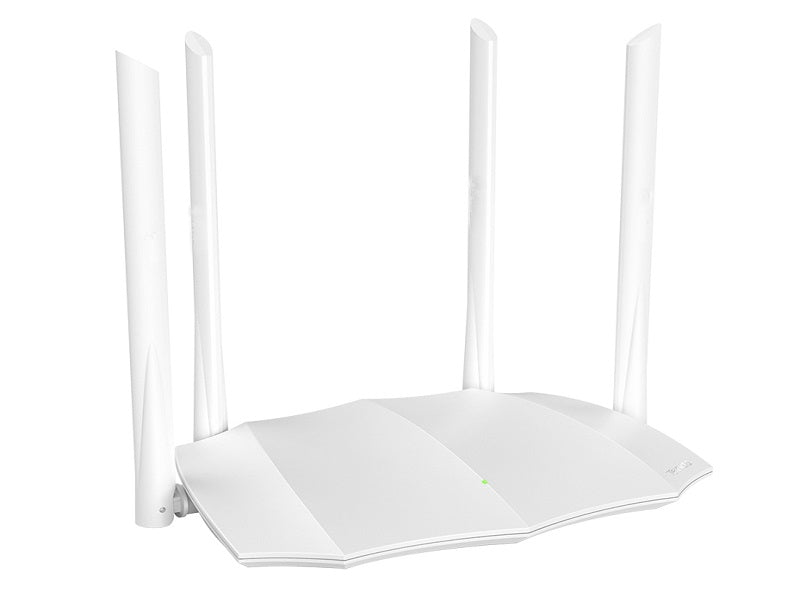

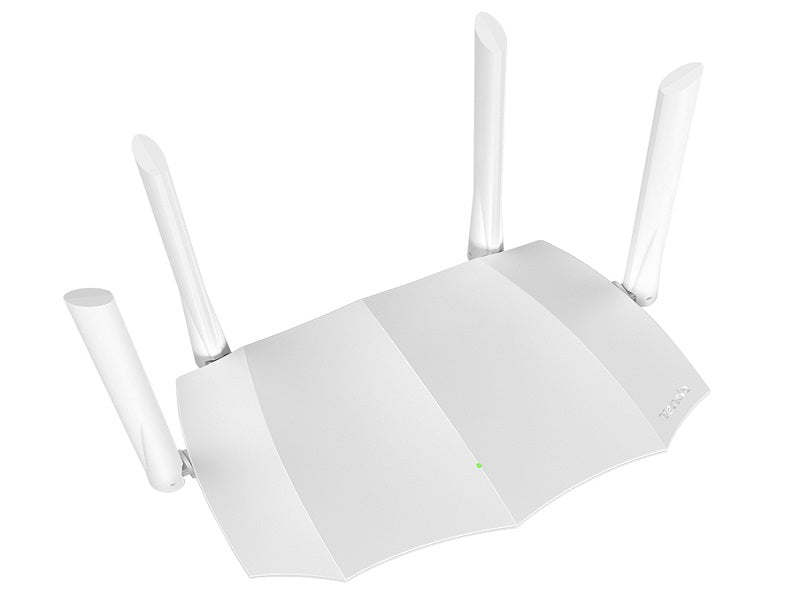

TENDA AC1200 Smart Dual-Band Wi-Fi

Storage Temperature: -40℃ ~ 70℃. Storage Humidity: 5% ~ 90%RH non-condensing.

Key features

• Router
• Antenna
• Button
• LED Indicator
• Wireless
• Wireless Standard
• Data Rate
• Concurrent dual band 2.4 GHz & 5 GHz
• Beamforming
• Mu-mimo
• Wireless Security
• WPS(WiFi Protected Set-up) fast encryption
• Software
• Internet Connection Type
• PPPoE, Dynamic IP, Static IP
• Wireless Router Mode
• Universal Repeater Mode
• WISP Mode
• AP Mode
• DHCP Server
• DHCP Client List
• DHCP Reservation
• Virtual Server
• DMZ Host
• UPnP
• Security
• Client Filter (support blacklist and whitelist)
• Parental Control
• Remote Management
• Firewall
• Forbid UDP flood attack
• Forbid TCP flood attack
• Forbid flood attack
• Forbid WAN PING from internet
• Ddns
• VPN
• Pptp
• PPTP client
• PPPoE Username/Password Clone
• Smart WiFi Schedule
• Smart Sleeping Mode
• Smart LED on/off
• Tenda WiFi App
• Others
• Bandwidth Control
• Iptv
• MAC Address Clone
• Backup & Restore configurations
• Online firmware upgrade
• Local firmware upgrade
• Default Settings
• Ce/fcc/rohs
• EIRP Power (Max)
• Quick Installation Guide
• Ethernet Cable

Specifications

• Standard&Protocol
• Ieee802.3, ieee802.3u
• 10/100 Mbps WAN port*1
• 10/100 Mbps LAN port*3
• 6dBi External antenna*4
• WPS/Reset button*1, WiFi on/off button*1
• AC input: 100-240V-50/60Hz, 0.2A
• DC output: 9V 1A
• 171mm*171mm*210mm(L*W*H)
• SYS*1, WiFi*1, WAN*1, LAN*3
• IEEE 802.11ac/a/n @5GHz
• IEEE 802.11b/g/n @2.4GHz
• 5GHz: 867Mbps
• 2.4GHz: 300Mbps
• Frequency
• <20dBm(2.4G)
• <23dBm(5G)
• <30dBm
• SSID Broadcast: Enable/Disable
• Wpa-psk/wpa2-psk, wpa/wpa2
• Wireless Security: Enable/Disable
• PPPoE(Russia), PPTP(Russia), L2TP(Russia)
• Support DDNS, No-ip, 3322.org, Oray.com, 88ip
• L2TP
• L2TP client
• IPv6 Features Supported
• Temperature
• Operating Temperature: 0℃ ~ 40℃
• Humidity
• Operating Humidity:10% ~ 90% RH non-condensing
• Default Access: tendawifi.com or http://192.168.0.1
• 2.400 – 2.4835 GHz: 19.85 dBm (EIRP)
• 5.150 – 5.250 GHz: 22.96dBm (EIRP)
• AC1200 Smart Dual-Band WiFi Router
