TENDA AX1500 Whole Home Mesh Wi-Fi 6

MX3 is a Mesh Wi-Fi system designed to provide whole-home Wi-Fi 6 for medium to large houses. Supporting easymesh technology, the MX3 is equipped with high-performance enhancement modules for powerful penetration and broader coverage. It can easily cover up to 270m'b2 (3000ft'b2) with 3 nodes. MX3 supports OFDMA and MU-MIMO technology so that multiple devices can be connected simultaneously without dragging down performance. It's easy to set up in 3 steps, you can enjoy a fast wireless network at any time. APP installation Available in iOS 8.0 or later, Android 4.0 or later.

Key features

• Mesh network Standard Tenda EasyMesh
• Basic Features OFDMA
• Mu-mimo
• Beamforming
• Wireless Encryption Disable and Enable
• WPS Fast Connection
• Internet Connection Type PPPoE, Dynamic IP, Static IP
• Unify,Maxis,Maxis-special,Celcom,Digi
• DHCP Server DHCP Server
• DHCP Client List
• DHCP Reservation
• Virtual Server Port Forwarding
• DMZ Host
• UPnP
• Parental Control URL Filter
• Time Limit
• Firewall Forbid UDP Flood Attack
• Forbid TCP Flood Attack
• Forbid ICMP Flood Attack
• Forbid WAN Ping from Internet
• VPN IPsec Pass Through
• PPTP Pass Through
• PPTP VPN Server
• PPTP VPN Client
• DNS Support DynDNS, No-ip
• Tenda EasyMesh
• Smart LED on/off
• Amazon Alexa
• One-button Fault Diagnosis
• Broadband Account Migration
• Monthly Report
• Others IPTV
• Remote Web Management
• MAC Clone
• Backup & Restore configurations
• Support automatic access detection
• Firmware upgrade online
• FCC
• RoHS

Specifications

• System-3Pack
• Standard&Protocol IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

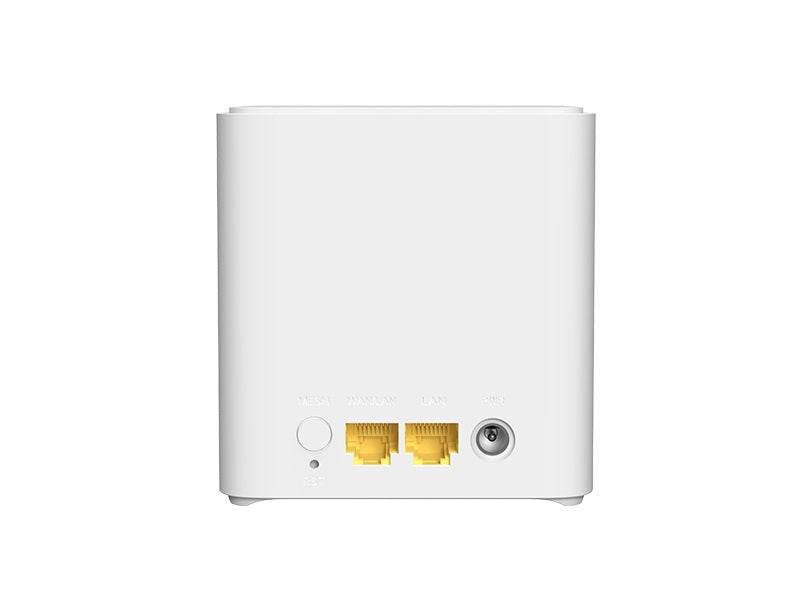

• Ethernet Interface 10/100/1000Mbps WAN port*1
• 10/100/1000Mbps LAN port*1
• Antenna 2 x 3dBi Internal antenna
• Button 1 x Reset Button
• 1 x MESH Button
• Power Input: AC 100-240V~50/60Hz
• Output:DC 12V⎓1A
• Dimension 90*90*93 mm (3.54*3.54*3.65 in.)
• LED Indicator SYS*1
• Wireless Standard 2.4GHz'a3°IEEE 802.11n/b/g
• 5GHz'a3°IEEE 802.11ax/ac/n/a
• Wireless roaming Comply with IEEE802.11k/v
• Rate 5GHz:1201Mbps
• 2.4GHz:300Mbps
• Frequency 2.4GHz & 5GHz
• <20dBm(2.4GHz)
• <23dBm(5GHz)
• <30dBm(2.4GHz)
• <30dBm(5GHz)
• Wireless Security WPA2-PSK
• Wpa3-sae/wpa2-psk
• Operating Mode Router Mode,AP Mode
• PPPoE(Russia), PPTP(Russia), L2TP(Russia)
• L2TP Pass Through
• L2TP VPN Client
• Special Features WPA3
• TR069
• Unify 2.4 GHz & 5 GHz
• Tenda App: Local and Remote ManagementSpeed Test
• IPv6
• Operation Temperature 0 ~ 40 ℃
• Storage Temperature -40 ~ 70 ℃
• Operating Humidity 10%~90% RH non-condensing
• Storage Humidity 5%~90% RH non-condensing
• Package Contents Mesh3X*3
• Quick Installation Guide*1
• Gigabit Ethernet Cable*1
• 12/1A Power Adapter*3
