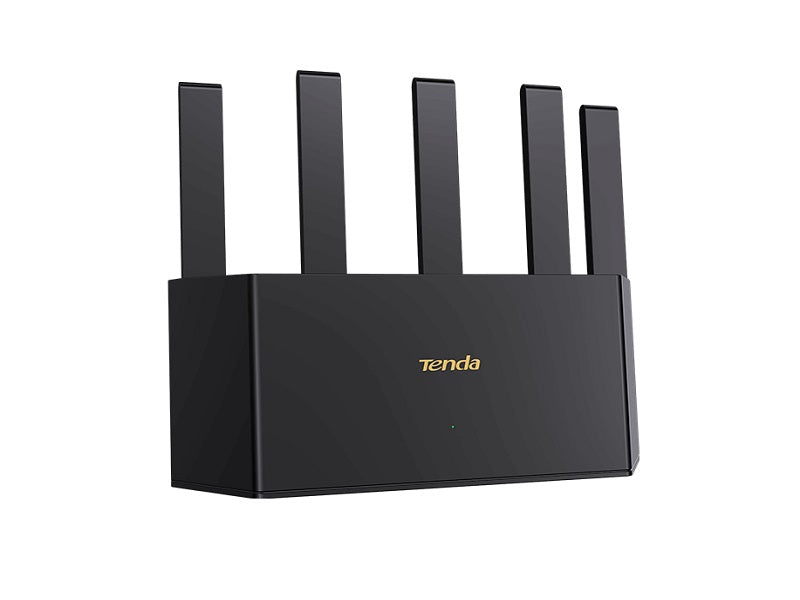

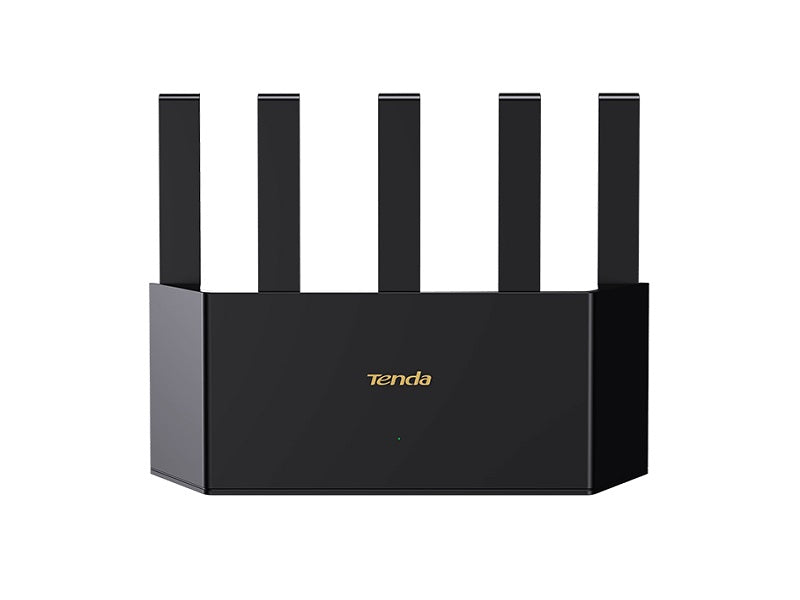

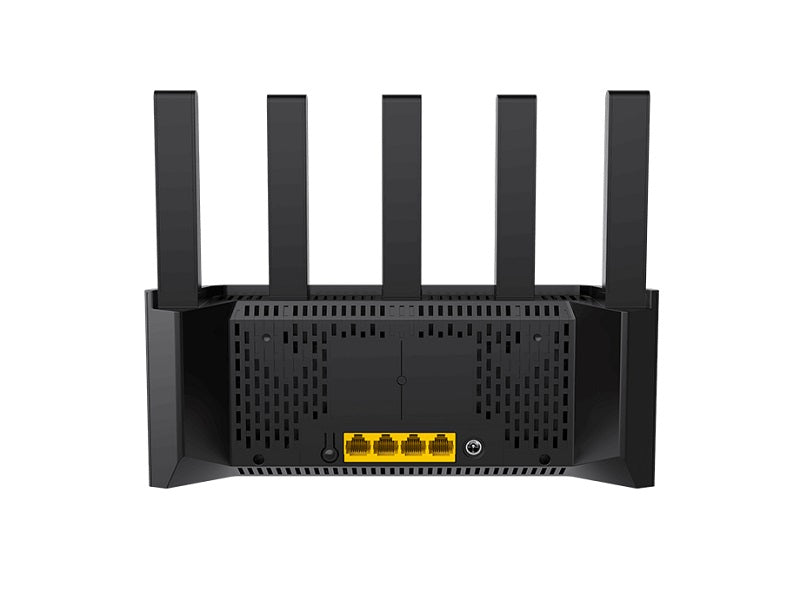

TENDA AX3000 Dual-Band Wi-Fi 6 Gigabit

TX12L Pro is a dual-band Gigabit Wi-Fi 6 wireless router designed for users who pursue performance experience. Both its dual-bands support Wi-Fi 6 (802.11ax) technology and the concurrent rate is up to 2976Mbps (5GHz:2402Mbps, 2.4GHz: 574Mbps). TX12L Pro is equipped with a 12nm process dual-core 1.3GHz CPU to ensure a stable and smooth network environment; supports Wi-Fi+, which can easily solve the problem of stable Wi-Fi coverage in very large homes; equipped with 5 built-in high-power FEMs , Wi-Fi has stronger wall penetration capabilities and longer transmission distances; it uses OFDMA+MU-MIMO technology to allow more devices to access the Internet at the same time, significantly improving transmission efficiency and significantly reducing latency.

Key features

• Router
• Basic Features SSID broadcasting and hiding
• Mu-mimo
• Beamforming signal directional transmission technology
• Ofdma
• WPS(WiFi Protected Set-up) fast encryption
• Internet Connection Type PPPoE, Dynamic IP, Static IP
• Unify,Maxis,Maxis-special,Celcom,Digi
• AP Mode
• Parental Control Client Filter
• URL Filter
• Time Limit
• DHCP DHCP Server
• DHCP Client List
• DHCP Static IP Address Reservation and Allocation
• Virtual Server Port Forwarding, DMZ Host, UPnP
• Firewall ICMP Flood Attack Defense
• TCP Flood Attack Defense
• UDP Flood Attack Defense
• Block Ping From WAN
• VPN IPSec Transparent Transmission
• PPTP Transparent Transmission
• PPTP VPN Server
• PPTP VPN Client
• Special Features Wi-Fi+(Mesh System)
• Smart diagnosis
• Iptv
• Smart LED on/off
• Other Function Support App and web management
• Bandwidth Control
• MAC Address Clone
• Supports black list and white list
• Static Routing
• Remote Web Management
• Backup & Restore configurations
• Firmware upgrade online

Specifications

• Standard&Protocol IEEE802.3, IEEE802.3u, IEEE802.3ab
• Interfaces 1*10/100/1000Mbps WAN port
• 3*10/100/1000Mbps LAN ports
• Antenna 5*external antennas
• Button 1*WPS/Reset button
• Power Input'a3°AC 100-240V~50/60Hz
• Output:DC 12V⎓1A
• LED Indicator 1* LED
• Dimension 244*56*200mm(L*W*H)
• Wireless Standard IEEE 802.11ax/ac/n/a 5 GHz
• IEEE 802.11ax/n/b/g 2.4 GHz
• Data Rate 5 GHz: 2402 Mbps (802.11ax, HE160)
• 2.4 GHz: 574 Mbps (802.11ax)
• 2.4G: 2412-2472mhz(ch1-ch13)
• 5G: 5150-5350mhz(ch36-ch64)
• 2.4G: 2412-2462mhz(ch1-ch11)
• 5725-5850mhz(ch149-ch165)
• <20 dBm (2.4 GHz)
• <23 dBm (5 GHz)
• <30 dBm (2.4 GHz)
• <30 dBm (5 GHz)
• 160MHz
• 1024-QAM
• Wireless Security WPA2-PSK
• Wpa3-sae/wpa2-psk
• Wireless Security: Enable/Disable
• PPPoE(Russia), PPTP(Russia), L2TP(Russia)
• Network Protocol IPv4&IPv6
• Universal Repeater Mode'a3`a8Client+AP,WISP'a3`a9
• DDNS DynDNS, no-ip, oray, 88ip
• L2TP Transparent Transmission
• L2TP VPN Client
• IPv6
• Unify 2.4 GHz & 5 GHz
• Temperature Operating Temperature : 0℃~40℃
• Storage Temperature : -40C ~70℃
• Humidity Operating Humidity : 10 %~90% RH non-condensing
• Storage Humidity : 5 %~ 90%RH non-condensing
• Package Contents Wi-Fi Router *1
• RJ45 Ethernet Cable*1
• Power Adapter*1
• Quick Installation Guide*1
