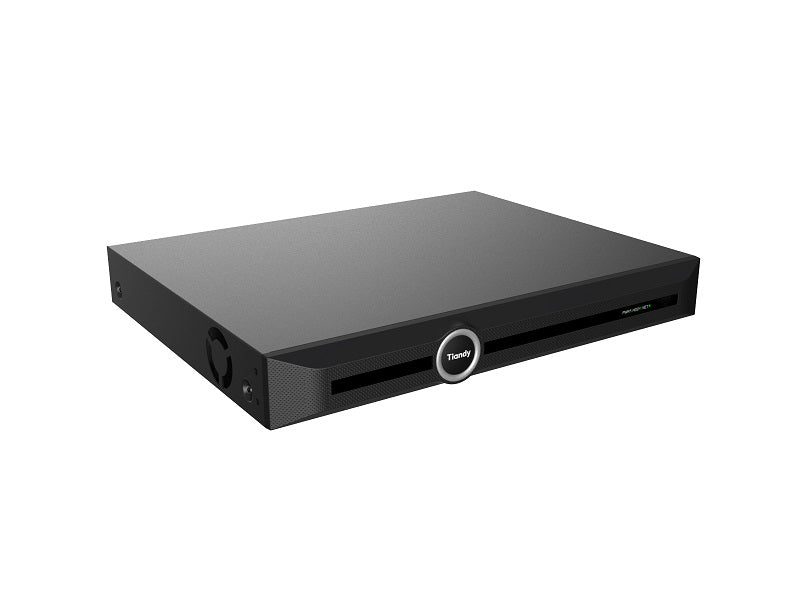

Tiandy 10Ch Lite Nvr Up To 8mp

S+ 265 compression effectively reduces the storage space by up to 75%. 8MP(30fps)`d72, 6MP(30fps)`d72, 5MP(30fps)`d73, 4MP(30fps)`d74, 3MP(30fps)`d75, 1080P(30fps)`d78, 720P(30fps)`d710, 4CIF(30fps)`d710; *: The length or width of camera resolution (each track) cannot exceed 4096 pixels.

Key features

• Up to 10 TB capacity for each HDD
• Simultaneous HDMI and VGA outputs
• Support cloud upgrade
• Access Channel
• Incoming Bandwidth
• Outgoing Bandwidth
• Preview Decoding Capability
• Playback Decoding Capability
• Third-party Camera Access
• Onvif; rtsp
• HDMI: 1024`d7768(60Hz), (720P )1280`d7720(50Hz/60Hz), 1280`d7800(60Hz), 1440`d7900(60Hz), (1080P)1920`d71080(50Hz/60Hz), (2K)2560`d71440(30Hz), (4K)3840`d72160(30Hz)
• Compression
• Stream Type
• 802.1X; ARP; DDNS; DHCP; DNS; Easy DDNS; FTP; HTTP; HTTPS; ICMP; IGMP; IPv4; IPv6; Multicast; NFS; NTP; PPPoE; RTCP; RTP; RTSP; SMB/CIFS; SMTP; SNMP v1/v2/v3; SRTP; SSH; SSL; TLSv1.2, TLSv1.3; TCP/IP; UDP; Unicast; UPnP
• Mobile Phone Access
• ONVIF(Profile S/T/G); RTSP; CGI; SDK; Milestone
• Web
• Record Playback
• Multi-channel Playback
• Record Mode
• Manual Recording; Alarm Recording; Schedule Recording
• Local HDD
• Backup
• Playback Function
• Dual Stream Record
• Yes
• Alarm
• Motion Detection; Mask Alarm; Alarm Input(IPC); Alarm Input(NVR); Manual Alarm
• Exceptions Alarm
• Video Loss; IP Conflict; MAC Conflict; Network Disconnected; No Disk; Illegal Access; Disk group space alert; Disk Full; Disk R/W Error; Recording Abnormal; Abnormal found in smart of disk; Abnormal temperature of the disk; Hot-spare Exception; Voltage Alarm(IPC); RTC Failure
• Intelligent Analytics
• Tripwire; Double Tripwire; Perimeter; Object Abandon; Object Missing; Loiter; Running; Parking; Heatmap; Video Abnormal; Audio Abnormal; On Duty Detection; Crowd Detection; Safety Helmet Detection; People Counting; Link to Tracking; Smoke and Fire Detection; Environmental Temperature Measurement; Face Detection; Human Body Temperature Measurement; Smart Motion; Human/Vehicle Classification
• VCA Search
• Heatmap; Early-warning Search; Behavior Search; Thermographic Retrieval; Duty Search; Face Search
• Face Detection
• Face Attributes
• Gender; Age
• HDD Capacity
• Disk Group
• Hdmi
• VGA
• Sata
• Alarm I/O
• 4-ch, TTL inputs, 3mA, 3.3VDC; 1-ch, relay output, 1A, 24VDC
• UI Language
• Simple Chinese; Traditional Chinese; English; Spanish; Korean; Italian; Turkish; Russian; Thai; French; Polish; Dutch; Hebrew; Arabic; Vietnamese; German; Ukrainian; Portuguese; Albanian
• NetWeight
• GrossWeight
• Network Video Recorder; Screw Pack; Mouse; Power Adapter; European Standard Power Cord

Specifications

• I/b/k/v3.1
• Up to 10-ch IP camera accesses
• Incoming/Outgoing bandwidth: 160Mbps/64Mbps
• S+265, H.265, S+264, H.264 video formats
• Max. decoding capability: 8MP(30fps)`d72 or 1080P(30fps)`d78
• 10-ch synchronous playback
• HDMI output at up to 4K resolution
• 1`d7RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port
• 10
• 160Mbps
• 64Mbps
• Resolution
• 8mp/6mp/5mp/4mp/3mp/1080p/uxga/720p/vga/4cif/dcif/2cif/cif/qcif
• 8MP(30fps)`d72, 6MP(30fps)`d72, 5MP(30fps)`d73, 4MP(30fps)`d74, 3MP(30fps)`d75, 1080P(30fps)`d78, 720P(30fps)`d710
• VGA: 1024`d7768(60Hz), (720P )1280`d7720(50Hz/60Hz), 1280`d7800(60Hz), 1440`d7900(60Hz), (1080P)1920`d71080(50Hz/60Hz)
• VGA: 1/2/3/4/5/6/7/8/9/10
• Hdmi: 1/2/3/4/5/6/7/8/9/10
• 1-ch, 3.5mm
• 1-ch, RCA (Linear, 1 K'd9)
• 1-ch, 3.5mm, using the audio input
• S+265; H.265; S+264; H.264
• G711A; G711U; AAC; adpcm_div4
• Android; iOS; P2P
• IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+
• Play/Pause/Stop/Slow/Speed/Backwards 30s/Forwards 30s/Full Screen/Backup (Video Editing)/Step/Digital Zoom
• 2 Disk Group
• 2`d7USB2.0
• 1`d7HDMI(supports up to 4K resolution output)
• 1`d7VGA
• 2`d7SATA interface
• DC12V 3.3A
• <10W(HDD not included, idling)
• 1.6 kg
• 3kg
• 341(L)273(W)47(H)mm
• 415(L)140(W)375(H)mm
• 10℃~+55℃ (+14℉~+131℉)
• 10%~90%RH (non-condensing)
• 20℃~+60℃ (-4℉~+140℉)
