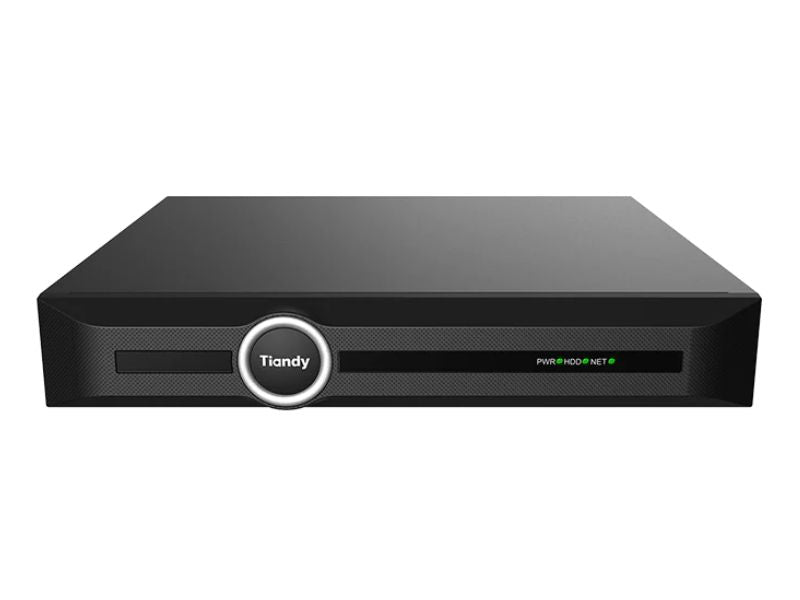

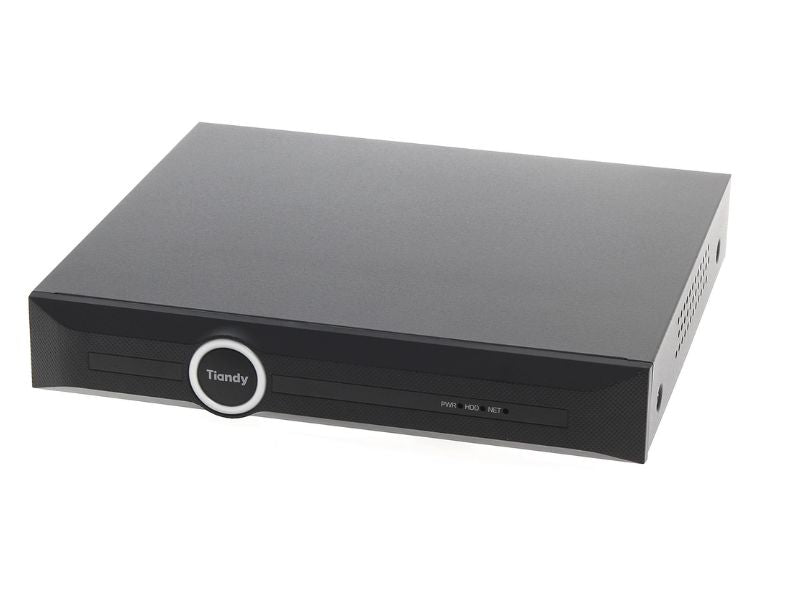

Tiandy 20Ch Nvr 4K 1Hdd

8MP(30fps)`d72, 6MP(30fps)`d72, 5MP(30fps)`d73, 4MP(30fps)`d74, 3MP(30fps)`d75, 1080P(30fps)`d78, 720P(30fps)`d716, 4CIF(30fps)`d720; *: The length or width of camera resolution (each track) cannot exceed 4096 pixels. 802.1X; ARP; DDNS; DHCP; DNS; Easy DDNS; FTP; HTTP; HTTPS; ICMP; IGMP; IPv4; IPv6; Multicast; NFS; NTP; PPPoE; QoS; RTCP; RTP; RTSP; SMB/CIFS; SMTP; SNMP v1/v2/v3; SRTP; SSH; SSL; TLSv1.2; TCP/IP; UDP; Unicast; UPnP.

Key features

• Access Channel
• Incoming Bandwidth
• Outgoing Bandwidth
• Preview Decoding Capability
• Playback Decoding Capability
• Third-party Camera Access
• ONVIF(Profile S/T); RTSP
• HDMI: 1024`d7768(60Hz), (720P )1280`d7720(50Hz/60Hz), 1280`d7800(60Hz), 1440`d7900(60Hz), (1080P)1920`d71080(50Hz/60Hz), (2K)2560`d71440(30Hz), (4K)3840`d72160(30Hz)
• Compression
• Stream Type
• Mobile Phone Access
• ONVIF(Profile S/T/G); RTSP; CGI; SDK
• Web
• Record Playback
• Multi-channel Playback
• Record Mode
• Manual Recording; Alarm Recording; Schedule Recording
• Local HDD
• Backup
• Playback Function
• Play/Pause/Stop/Reverse/Slow/Speed/Backwards 30s/Forwards 30s/Full Screen/Backup (Video Editing)/Step/Digital Zoom/Instant Replay
• Dual Stream Record
• Yes
• Alarm
• Motion Detection; Mask Alarm; Alarm Input(IPC); Alarm Input(NVR)
• Exceptions Alarm
• Video Loss; Network Disconnected; No Disk; Illegal Access; Disk group space alert; Disk Full; Disk R/W Error; Recording Abnormal; Abnormal found in smart of disk; Abnormal temperature of the disk; Hot-spare Exception; Voltage Alarm(IPC); RTC Failure; IP Address Conflict; MAC Address Conflict
• Intelligent Analytics
• Tripwire; Double Tripwire; Perimeter; Object Abandon; Object Missing; Running; Parking; Video Abnormal; Audio Abnormal; On Duty Detection; Crowd Detection; People Counting; Face Detection; Smart Motion; Human/Vehicle Classification; Loitering
• VCA Search
• Early-warning Search; Behavior Search; Face Search
• Face Detection
• Face Attributes
• Gender; Age
• HDD Capacity
• Up to 10 TB capacity for each HDD
• Disk Group
• Hdmi
• VGA
• Sata
• Alarm I/O
• 4-ch, TTL inputs, 3mA, 3.3VDC; 1-ch, relay output, 1A, 24VDC
• UI Language
• Simple Chinese; Traditional Chinese; English; Spanish; Korean; Italian; Turkish; Russian; Thai; French; Polish; Dutch; Hebrew; Arabic; Vietnamese; German; Ukrainian; Portuguese; Albanian; Indonesian; Greek
• NetWeight
• GrossWeight
• Network Video Recorder; Screw Pack; Mouse; Power Adapter; European Standard Power Cord

Specifications

• I/b/k/v3.1
• 20
• 80Mbps
• Resolution
• 8mp/6mp/5mp/4mp/3mp/1080p/uxga/720p/vga/4cif/dcif/2cif/cif/qcif
• 8MP(30fps)`d72, 6MP(30fps)`d72, 5MP(30fps)`d73, 4MP(30fps)`d74, 3MP(30fps)`d75, 1080P(30fps)`d78, 720P(30fps)`d716
• VGA: 1024`d7768(60Hz), (720P )1280`d7720(50Hz/60Hz), 1280`d7800(60Hz), 1440`d7900(60Hz), (1080P)1920`d71080(50Hz/60Hz)
• Simultaneous Output: VGA: 1/2A/2B/3/4/5/6/7/8/9/10/12/13/16/20A/20B/20C/20D/25 HDMI: 1/2A/2B/3/4/5/6/7/8/9/10/12/13/16/20A/20B/20C/20D/25
• 1-ch, 3.5mm
• 1-ch, RCA (Linear, 1 K'd9)
• 1-ch, 3.5mm, using the audio input
• S+265; H.265; S+264; H.264
• G711A; G711U; AAC; adpcm_div4
• Android; iOS; P2P
• IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+
• 16
• 1 Disk Group

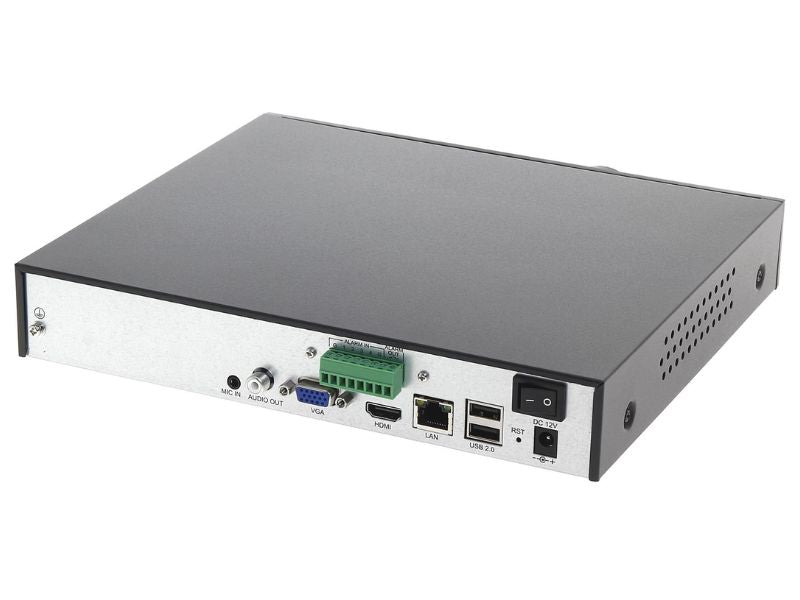

• 2`d7USB2.0
• 1`d7HDMI(supports up to 4K resolution output)
• 1`d7VGA
• 1`d7RJ-45, 10/100 Mbps self-adaptive Ethernet port
• 1`d7SATA interface
• DC12V 3.33A
• <10W(HDD not included, idling)
• 0.9 kg
• 1.6kg
• 255(L)231(W)45(H)mm
• 385(L)80(W)280(H)mm
• 10℃~+55℃ (+14℉~+131℉)
• 10%~90%RH (non-condensing)
• 20℃~+60℃ (-4℉~+140℉)
