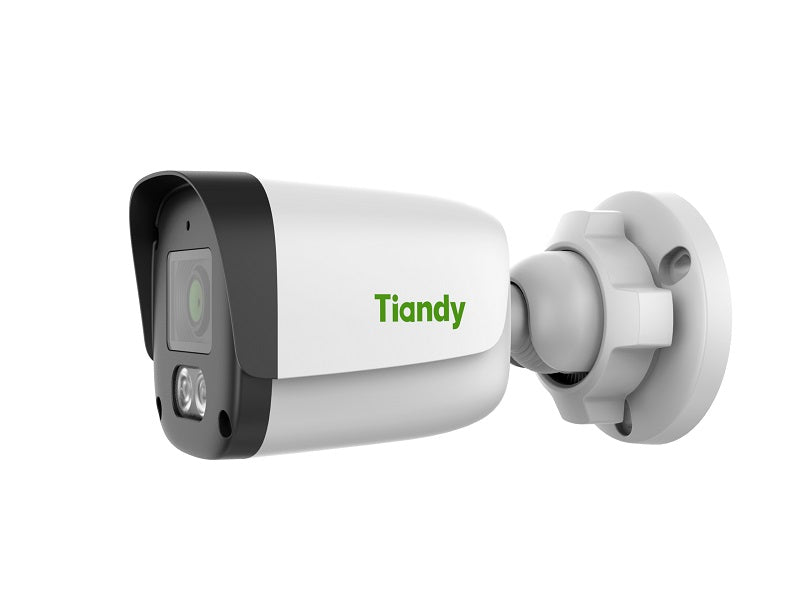

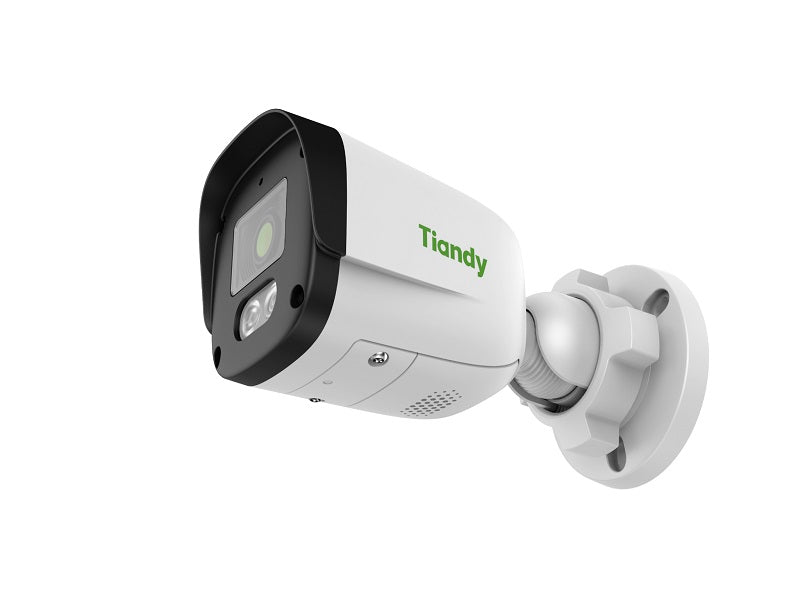

Tiandy TC-C34QN ColorVu 4MP IP Bullet Camera - 2.8mm, 50m IR, 120dB WDR, PoE

OSD Overlay of additional characters in 1 regions, 1 line, with a maximum of 48 characters or 16 Chinese. Protocols HTTP; HTTPS; TCP/IP; UDP; UPnP; ICMP; DHCP; DNS; DDNS; Easy DDNS; NTP; TLS v1.2; QoS; IPv4; SSH;.

Key features

• Metal+plastic housing
• Built-in Mic
• Day&Night IR-cut filter with auto switch (ICR)
• Smart IR Yes
• Illuminator
• Compression Standard
• Image
• Max. Resolution 4MP,2688×1520@25fps
• BLC Yes
• HLC Yes
• AGC Yes
• White Balance Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock
• White Balance
• Defog Yes
• Feature
• General Alarm Motion Detection; Mask Alarm
• Exceptions Alarm IP Address Conflict
• Linkage Method Trigger Warmlight; Trigger Capture; Alarm Output
• Scene
• Unicast; FTP
• System Compatibility P2P(Mutually exclusive with Profile G); ONVIF(Profile S/T) ; SDK; CGI; Milestone; RTSP
• Moblie Client EasyLive Plus
• Built-in Mic Yes
• Simple Chinese/Traditional Chinese/English/Spanish/Korean/Italian/Turkish/Russian/Thai/French/
• Polish/Dutch/Hebrew/Arabic/Vietnamese/German/Ukrainian/Portuguese/Albanian

Specifications

• Tc-c34qn 2ENA-4
• Up to 4MP,2688×1520@25fps
• S+265/h.265/h.264b/h.264m/h.264h
• Color:0.02Lux@(F1.6,AGC ON),B/W:0Lux with IR
• IR range up to 50m
• Operating conditions -30℃~60℃(-22℉~140℉), ≤95%RH
• DC12V±25%,Max. 6.5W, PoE:IEEE 802.3af,Max. 7W
• IP67
• Image Sensor 1/2.9"CMOS
• Min. Illumination Color:0.02Lux@(F1.6,AGC ON),B/W:0Lux with IR
• Shutter Time 1s~1/100000s
• WDR 120dB
• S/N >40dB
• Angle Adjustment 0~360°(P); 0~80°(T); 0~360°(R)
• Lens
• Lens Type Fixed focal lens
• Focal Length 2.8mm
• Lens Mount M12
• Aperture Range F1.6
• Aperture Type Fixed
• Field of View 100.1°(H); 54.3°(V); 113.9°(D)
• DORI Distance Detect:56.0m
• Observe:22.2m
• Recognize:11.2m
• Identify:5.6m
• IR LEDs 2
• IR Distance Up to 50m
• Wavelength 850nm
• White LEDs 2
• Whitelight Distance 15m
• Video Compression S+265/H.265/H.264B/H.264M/H.264H
• Video Bit Rate 32k~6Mbps
• Audio Compression G.711A/G.711U/ADPCM_D
• Audio Sampling Rate 8kHz/32kHz/48kHz
• Main Stream PAL:25fps(2688×1520, 2560×1440, 2304×1296, 1920×1080, 1280×720)
• NTSC:24fps(2688×1520, 2560×1440), 30fps(2304×1296, 1920×1080, 1280×720)
• Sub Stream PAL:25fps(704×576, 704×288, 640×360, 352×288)
• NTSC:30fps(704×480, 704×240, 640×360, 352×240)
• 3D DNR Yes
• 2024.06.24
• ROI 8 rectangular static areas
• characters per region; 16*16/32*32/48*48/64*64
• Privacy Mask 4 black static areas
• Rules of Behavior Analyse In 1
• 2
• Remote Connection ≤2
• Client Easy7 VMS
• Web IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+
• Communication Interface 1*RJ-45 (10/100 Base-T)
• Web Client Language 19 languages
• Operating Temperature -30℃~60℃(-22℉~140℉)
• Operating Humidity ≤95%RH
• Storage Temperature -30℃~60℃(-22℉~140℉)
• Storage Humidity 10%~95%RH(non-condensing)
• Power Supply DC12V±25%,Max. 6.5W; PoE:IEEE 802.3af,Max. 7W
• Protection Surge4000V; ESD6000V; IP67
• Boundary Dimensions 164(L)73(W)73(H)mm
• Package Dimensions 180(L)90(W)95(H)mm
• GrossWeight 0.3Kg
