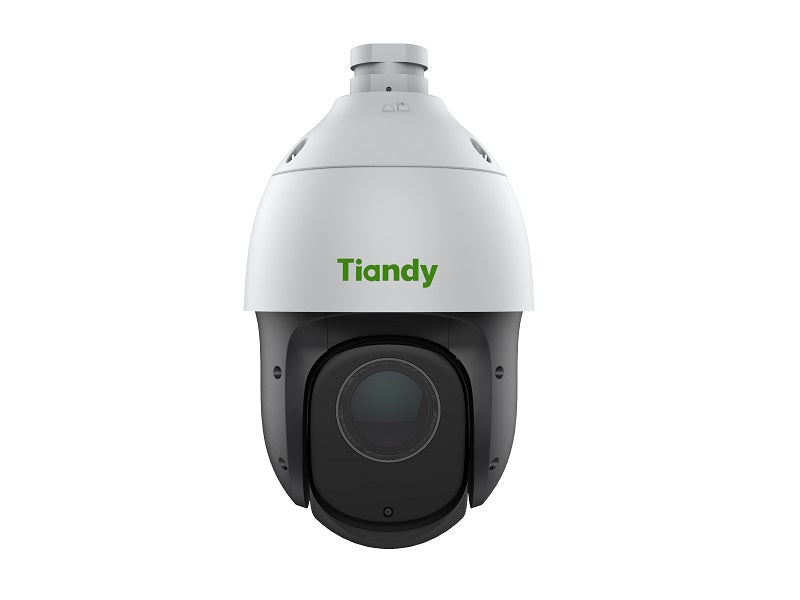

Tiandy Ip 2mp Ptz 23x Camera

ROI 7 Dynamic Areas for Both Main and Sub Stream. OSD 5 regions(Each region can have a maximum of 127 characters ,up to 1 line);.

Key features

• Built-in Micro SD card slot,up to 512 GB
• Support smart surveillance
• Support human/vehicle classification
• Day&Night IR-cut filter with auto switch (ICR)
• Smart IR Yes
• Focus Control Auto/Semi-auto/Manual
• Pan&Tilt
• Pattern 8,each with 600s memory or 1000 orders
• Scheduled Task Preset,Cruise,Scan,Pattern
• North Point Yes(Manual setting)
• Illuminator
• IR Irradiation Angle Yes
• Compression Standard
• Image
• Max. Resolution 2MP,1920`d71080@30fps
• BLC Yes
• HLC Yes
• AGC Yes
• White Balance Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock
• White Balance
• Defog Yes
• Flip Normal/Horizontal Mirror/Vertical Mirror/Inverted Flip
• Regional Exposure Yes
• Regional Focus Yes
• Demist Yes
• Feature
• General Alarm Motion Detection; Mask Alarm; Alarm Input
• Exceptions Alarm Voltage Alarm; Disk Full; Disk R/W Error; Recording Exception; IP Address Conflict; MAC Address
• Conflict; FTP Server Exception ; Network cable disconnected
• Linkage Method Send Email; Trigger Sound; Trigger Recording; Trigger Capture; Notify Surveillance Center; Alarm
• Video Analytics Human/Vehicle Classification; Tripwire; Double Tripwire; Perimeter; Object Abandon; Object Missing;
• Heatmap; Video Abnormal; Audio Abnormal
• ANR Yes
• Protocols HTTP; HTTPS; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP v1v2v3; DHCP; DNS; DDNS; Easy DDNS; NTP;
• SMTP; TLS v1.2; SSL; 802.1x; QoS; IPv4; IPv6; PPPoE; SSH; Unicast; Multicast; ARP; RTP; SRTP; FTP;
• Sftp
• System Compatibility P2P; ONVIF(Profile S/T/G/M); SDK; CGI; Milestone; RTSP; RTMP
• User/Host Up to 32 users. 4 user levels
• Moblie Client EasyLive Plus

Specifications

• Tc-h324s (23x/i/e/v3.0)
• Up to 2MP,1920`d71080@30fps
• Color:0.001lux@ (F1.5,AGC ON),B/W:0lux with IR
• S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG
• Optical zoom 23X
• IR range up to 150m
• Operating conditions -30℃~65℃(-22℉~149℉), ≤95%RH
• DC12V'b110%, PoE:IEEE 802.3at
• IP66
• Image Sensor 1/2.8"CMOS
• Min. Illumination Color:0.001lux@ (F1.5,AGC ON),B/W:0lux with IR
• Shutter Time 1s~1/100000s
• WDR 120dB
• S/N 42dB
• Lens
• Focal Length 5mm~115mm
• Zoom Speed <5s
• Aperture Range F1.5~F3.0
• Aperture Type Auto(P-Iris)
• Field of View 55.8`b0~3.2`b0(H); 32.2`b0~1.8`b0(V); 61`b0~3.64`b0(D)
• Close Focus Distance 1000mm~1500mm
• DORI Distance Detect:1351m Observe:536m Recognize:270m Identify:135m
• Pan Range 360`b0
• Pan Speed Manual Speed:0.1`b0`a1`ab80`b0/s
• Preset Speed:80`b0/s
• Tilt Range -16`b0~90`b0 (Default -3`b0~90`b0)
• Tilt Speed Manual Speed:0.1`b0`a1`ab80`b0/s
• Preset:80`b0/s
• 3D Position Yes
• Preset 500
• Cruise 16,up to 32 presets per cruise
• Scan 8
• Power-off Memory Yes
• IR LEDs 7
• IR Distance Up to 150m
• Wavelength 850nm
• Video Compression S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG
• Video Bit Rate 32Kbps~16Mbps
• 2024.06.24
• Audio Compression G.711A/G.711U/ADPCM_D/AAC_LC
• Audio Sampling Rate 8KHz/32KHz/48KHz
• Main Stream PAL:25fps(1920`d71080,1280`d7720,640`d7480,704`d7576)
• NTSC:30fps(1920`d71080,1280`d7720,640`d7480,704`d7480)
• Sub Stream PAL:25fps(704`d7576,704`d7288,640`d7360,352`d7288)
• NTSC:30fps(704`d7480,704`d7240,640`d7360,352`d7240)
• Third Stream PAL:25fps(352`d7288)
• NTSC:30fps(352`d7240)
• 3DNR Yes
• 16*16/24*24/32*32/48*48/64*64/adaptable size; Vector/Lattice
• Remote Connection ≤2
• Client Easy7 VMS
• Web IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+
• Communication Interface 1*RJ45 (10/100Base-T)
• Material Metal+plastic
• Boundary Dimensions 161mm(D)x276mm(H)
• Package Dimensions 260(L)260(W)465(H)mm
• GrossWeight 3.8kg
• NetWeight 2.1kg
