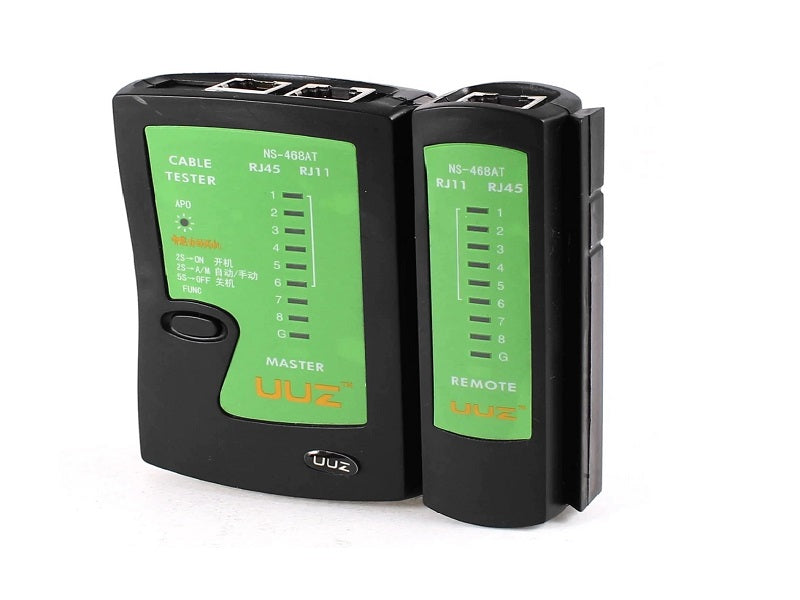

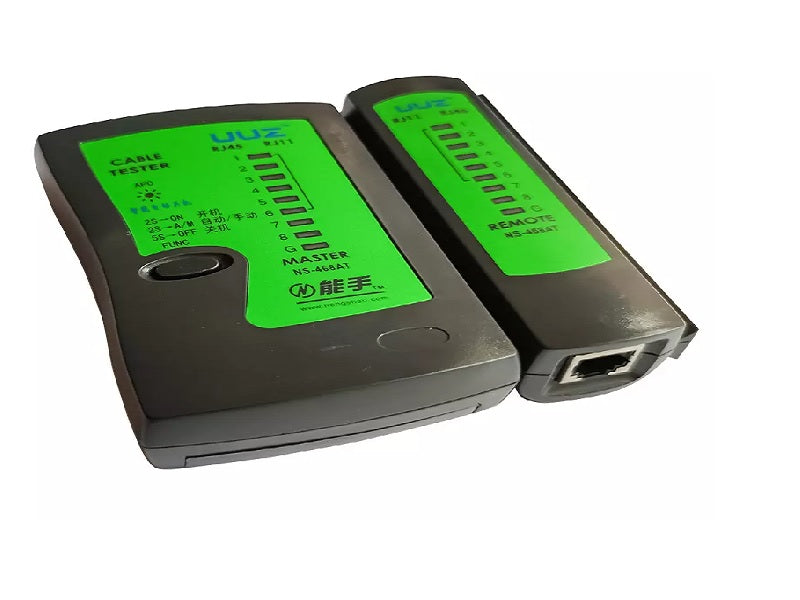

UUZ Network Cable Tester

Network is widely used in industrial automation, building, and factory systems. Easily identify cables and wires without worrying about unnecessary cable damage due to the high quality ethernet cable. It can be used for all kinds of lan cables, and the signal is stable, not afraid of falling off. This is a highperformance multichannel device, which can easily adapt the equipment with the use of interface for network signal. The cable is made of high quality abs material, which has good heat resistance and high strength. This network cord cable tester can help you quickly and easily check the condition of your home, office or school. The network cable is designed to help eliminate network damage due to ethernet cables. The product has a high frequency range, stable performance and can be used with different network cables. The tester is suitable for all kinds of network cables, and supports highdefinition audio and video. This cable is a very convenient and practical tool for quick networking of the network. Design for the testing of the UTP and screened for the opens, shorts, reversals, mis-wiring and so on, this tester allows one person to quickly test and identify up to different hour runs from the one locations.

Key features

• This ethernet cable tester quickly and easily checks for cable continuity, mis-wiring, open, short, straight-through or cross pinning.
• Functions
• Suitable for RJ11/RJ45/BNC/1394 cable test.
• Judge continuity of the cables or wires.
• Track the cables or wires, and diagnose the break point.
• Receive the tone signal on the wires (telephone line).
• Identify the state in the working telephone line (clear, ring, busy).
• Send a single solid tone or dual alternating tone to the object cables or wires.
• Track cable or wires
• Use sender (switch to tone )and receiver
• Connected the test leads to the pair, or attach one test lead to group and another test lead to either side of the line. Move the Receiver close to and along the pair (or the kine ). Reception of the tone indicates the track.
• Note: Do not connect to any active circuit in this mode.

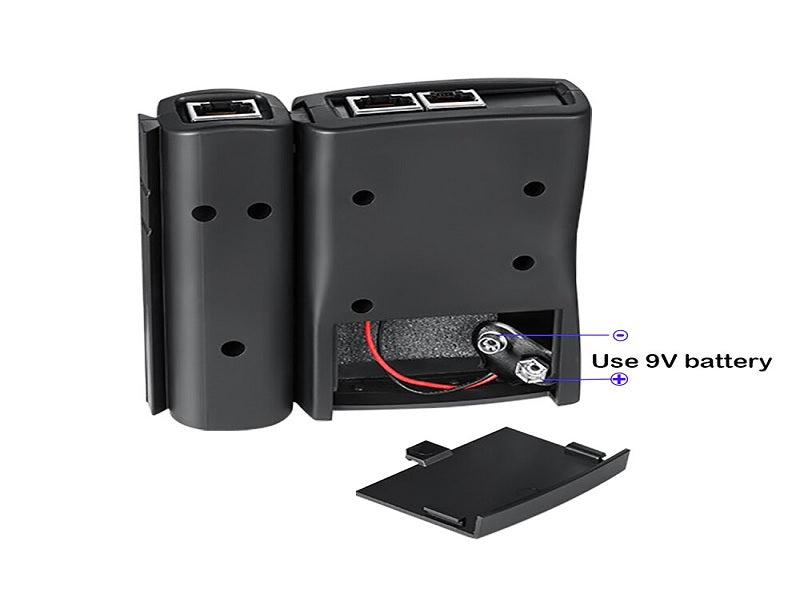

• A. Sender battery repalacement
• Remove the screw on the back case, remove the back case, and replace the exhausted battery with a new one of 9V(6F22). Rejoin the back case and install the screw.
• B. Receiver battery replacement
• Remove the screw on the battery compartment, remove the battery cover, and replace the exhuasted battery with a new one of 9V(6F22). Rejoin the cover and install the screw.

Specifications

• Battery replacement
