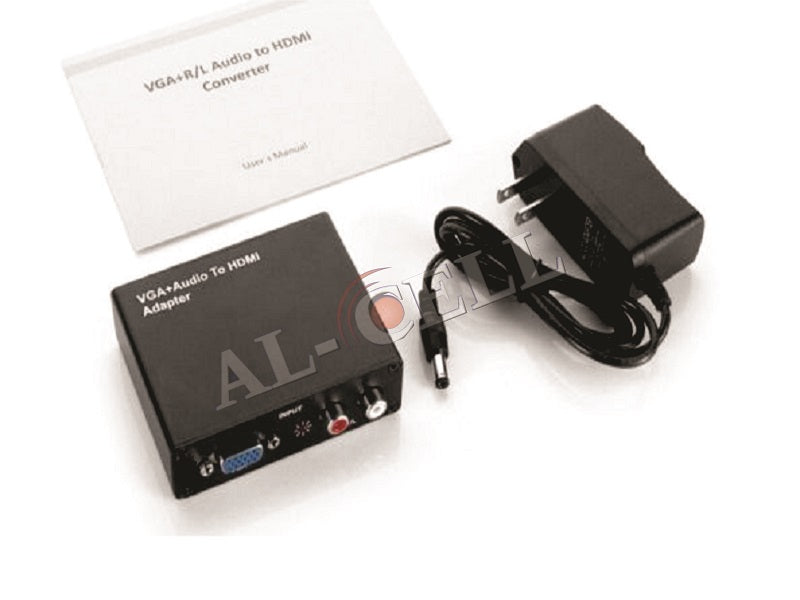

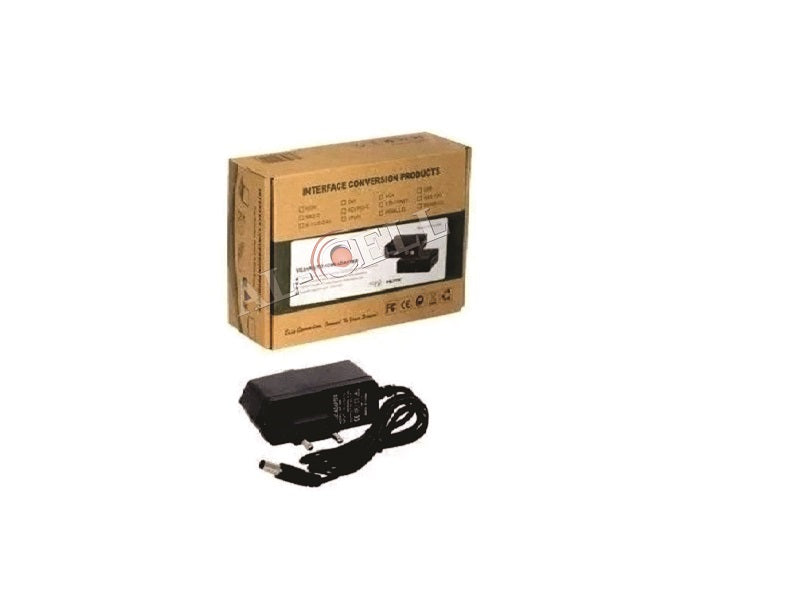

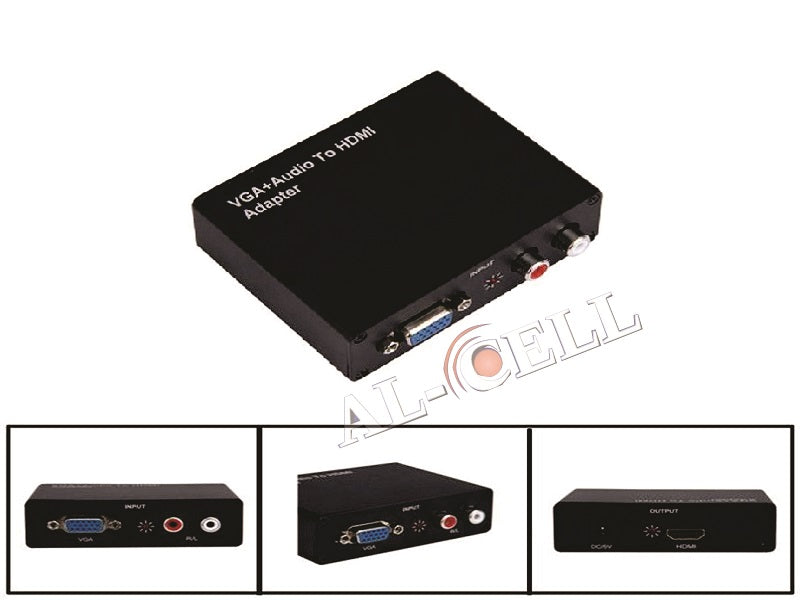

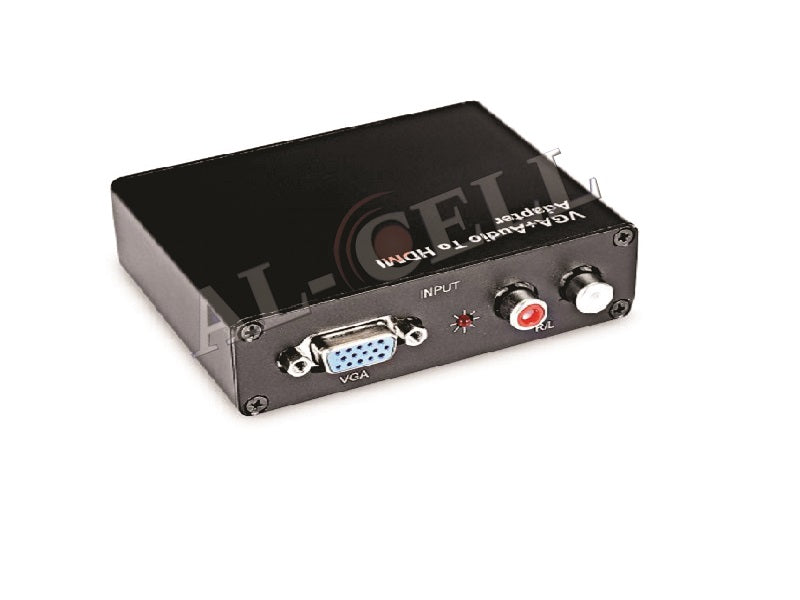

VGA + R/L To Hdmi Adapter

Our device offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environment. One VGA+R/L input signal convert to one HDMI sink devices.

Key features

• HDMI output : Support up to 1080P, same forant as input
• Support CEC
• LED indication : when source or sink is working, LED relative to is light
• Support output up to 20 meters AWG26 cable length
• No loss of quality
• Install in minutes
• Operation and connecting
• Connect VGA+R/L from VGA source devices into Converter input
• Connect one cable from HDMI display (monitor or projector) into Converter input
• Connect 5V power supply to the HDCVGA101 Converter
• HDMI resolution : Support up to 1080P, same forant as input
• Power adapter format : input :AC (50Hz, 60Hz) 100V-240V, Output: DC5V/1A
• Operating Humidity range `85 5 to 90% RH ( No Condesation)

Specifications

• Support video input : VGA analog
• Support audio input : R/L analog
• Need DC5V/2A power supply
• HDCVGA0101 VGA to HDMI converter
• VGA Input : Support up to SXGA/SGA/UGA (50/60/70 Hz)
• Audio Input : R/L Analog
• Max transmission bandwidth : 5.1 Gbps
• Input Video Signal : 0.5-2.0 Volts p-p
• Output DDC Signal : 5 Volts p-p (TTL)
• Max working currebt : 600mA
• Operating Temperature range `85 (-15 to 55°C)
• Dimension (LxWx H) : 90x70x33(mm)
• Weight : 155g
