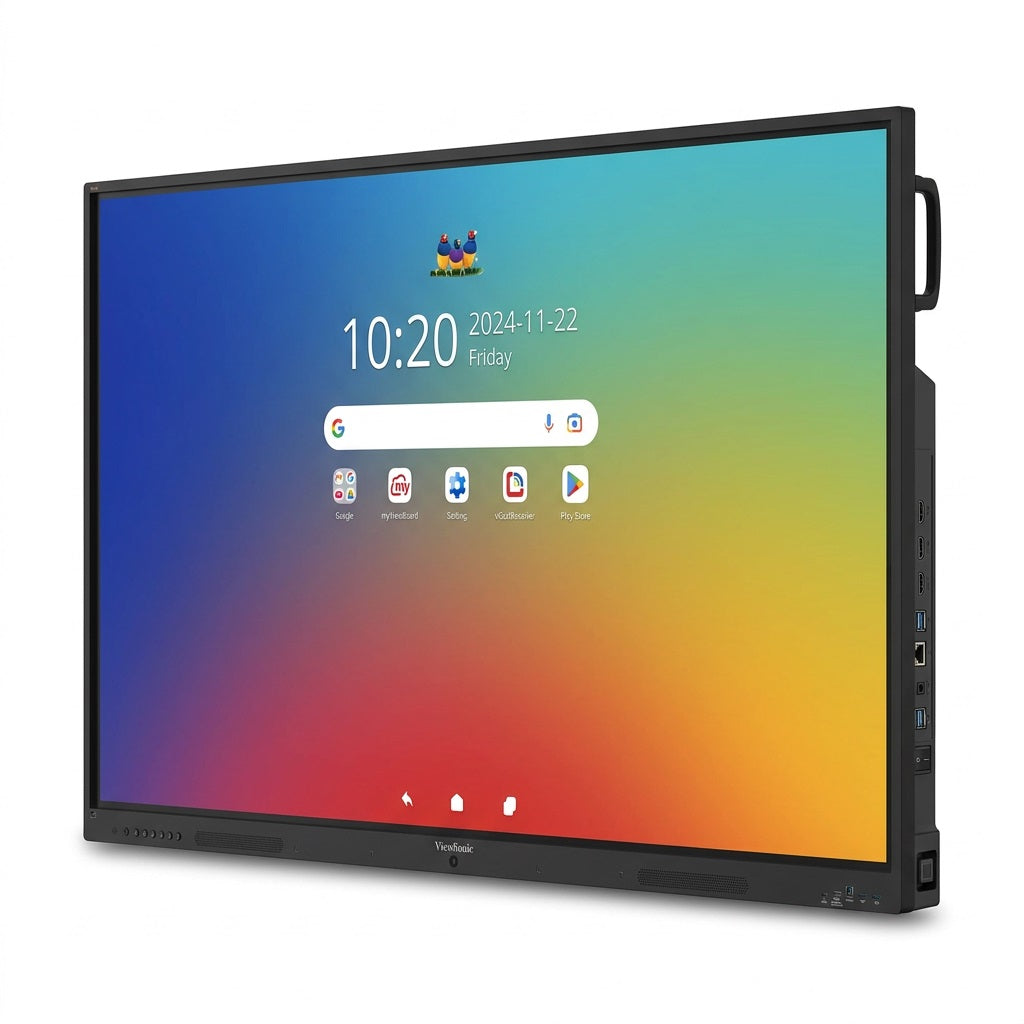

ViewSonic IFP7535-1-1C 75 Inch 4K UHD ED

Experience powerful, smooth, and reliable interactive learning with the ViewSonic ViewBoard IFP7553-1 75-Inch Interactive Display. Designed for modern classrooms, training centres, and collaborative workspaces, this advanced interactive display combines stunning 4K UHD visuals, responsive multi-touch technology, and an EDLA-certified Android 16 platform to create an engaging and productive learning environment.

Powered by an octa-core CPU with 8GB RAM and 128GB internal storage, the IFP7553-1 delivers responsive performance for presentations, digital whiteboarding, educational applications, and collaborative activities. With secure access to Google Play apps, teachers can easily access the tools they need to deliver interactive lessons.

The integrated ViewSonic Education Software suite includes myViewBoard for annotation, AirSync for wireless presentation, and Manager for device management. Built-in ambient light and PIR motion sensors help optimize screen brightness, conserve energy, and support efficient classroom operation.

Featuring up to 64 touch points, palm rejection, anti-glare glass, and a powerful 50W front-facing soundbar, the ViewSonic ViewBoard IFP7553-1 is an ideal solution for schools, universities, boardrooms, and professional training environments.

Key Features

75-Inch 4K UHD Display: Delivers detailed visuals with a resolution of 3840 × 2160.

EDLA-Certified Android 16: Provides secure access to Google Play and compatible Android applications.

Octa-Core Processor: Supports smooth operation for presentations, whiteboarding, and collaborative tasks.

8GB RAM and 128GB Storage: Provides memory and storage for applications and classroom content.

64-Point Multi-Touch: Supports collaborative interaction with up to 64 simultaneous touch points.

Ultra Fine Touch Technology: Offers responsive IR touch recognition with palm rejection.

Anti-Glare 9H Surface: Helps reduce reflections and provides a durable surface for frequent use.

Integrated 50W Soundbar: Features front-facing speakers for clear audio during lessons and presentations.

USB-C Connectivity: Front USB-C supports up to 65W Power Delivery, while rear USB-C supports up to 15W.

Multiple Connectivity Options: Includes HDMI, DisplayPort, VGA, USB, RJ45, optical audio, and RS232 connections.

Wireless Presentation: AirSync supports wireless screen sharing.

Education Software: Includes myViewBoard for Android, ViewSonic Manager, and ViewSonic Launcher.

Smart Sensors: Ambient light and PIR sensors help manage brightness and energy consumption.

OPS PC Slot: Supports compatible optional slot-in computing modules.

Technical Specifications

Specification

Details

Brand

ViewSonic

Series

ViewBoard IFP35-1

Model

IFP7553-1

Screen Size

75 inches

Display Type

TFT LCD with DLED backlight

Display Resolution

3840 × 2160 (4K UHD)

Aspect Ratio

16:9

Brightness

450 nits

Contrast Ratio

5000:1 maximum with DCR enabled

Response Time

6.5 ms

Viewing Angle

178° horizontal / 178° vertical

Display Colours

1.07 billion (8-bit + FRC)

Backlight Life

50,000 hours

Surface

Anti-glare, 9H hardness

Processor

Octa-core CPU

RAM

8GB

Internal Storage

128GB

Operating System

EDLA-certified Android 16

Touch Technology

Ultra Fine Touch Technology (IR)

Touch Points

Up to 64

Touch Resolution

32767 × 32767

Palm Rejection

Yes

Speakers

50W maximum (2 × 25W)

VESA Mounting

800 × 400 mm

Power Consumption

92.44W operating; less than 0.5W off

Energy Star

Version 8.0

EEI Rating

D

Operating Temperature

0°C to 40°C

Operating Humidity

20%–80% RH, non-condensing

Connectivity

Connection

Quantity and Details

HDMI Input

3 × HDMI 2.1, 4K at 60Hz

HDMI Output

1 × HDMI 2.1, 4K at 60Hz

VGA Input

1

DisplayPort Input

1

Audio Input

1

Audio Line-Out

1

Optical Audio Output

1 × SPDIF

RS232

1

MicroSD Slot

1 × TF card slot

RJ45 Ethernet

2

USB-A

5 ports

USB-B

2 ports for touch/data connections

USB-C

2 ports with DisplayPort 1.2 and Power Delivery

OPS Slot

1

Included Software

myViewBoard for Android: Digital whiteboarding and annotation.

myViewBoard for Windows: Pro annotation software embedded in a compatible VPC.

AirSync: Wireless screen sharing and presentation.

ViewSonic Manager: Device management for supported environments.

ViewSonic Launcher: Integrated interface for accessing display functions.

Dimensions and Weight

Specification

Details

Product Dimensions (W × H × D)

1709 × 1020 × 98.2 mm

Packaging Dimensions

1853 × 1144 × 176 mm

Net Weight

38.9 kg

Gross Weight

45.9 kg

Package Contents

1 × Power cable (3 metres; plug type varies by region)

1 × USB touch cable (3 metres)

2 × Passive touch pens

1 × HDMI cable (3 metres)

1 × Remote control

2 × AAA batteries

1 × Quick Start Guide with compliance statement

4 × Wall-mount screws

Warranty card inclusion may vary by regional package.

Compatible Slot-In PCs

The display supports the following compatible ViewSonic slot-in PC models:

VPCF5-W33-G1

VPC37-W53-G1

VPC35-W53-G1

VPC-A31-O1

VPC11-C33-G1

VPC13-C33-G1

VPC15-C53-G1

Slot-in PCs are optional and may be sold separately.

Ideal Applications

Schools, colleges, and universities

Interactive classroom teaching

Corporate boardrooms and meeting rooms

Staff training and workshops

Collaborative presentations

Digital whiteboarding and group projects

Short Description

The ViewSonic ViewBoard IFP7553-1 75-Inch Interactive Display features 4K UHD resolution, EDLA-certified Android 16, an octa-core CPU, 8GB RAM, 128GB storage, and up to 64-point multi-touch functionality. With integrated educational software, wireless presentation, a 50W soundbar, USB-C connectivity, and smart sensors, it is designed for interactive learning and professional collaboration.
