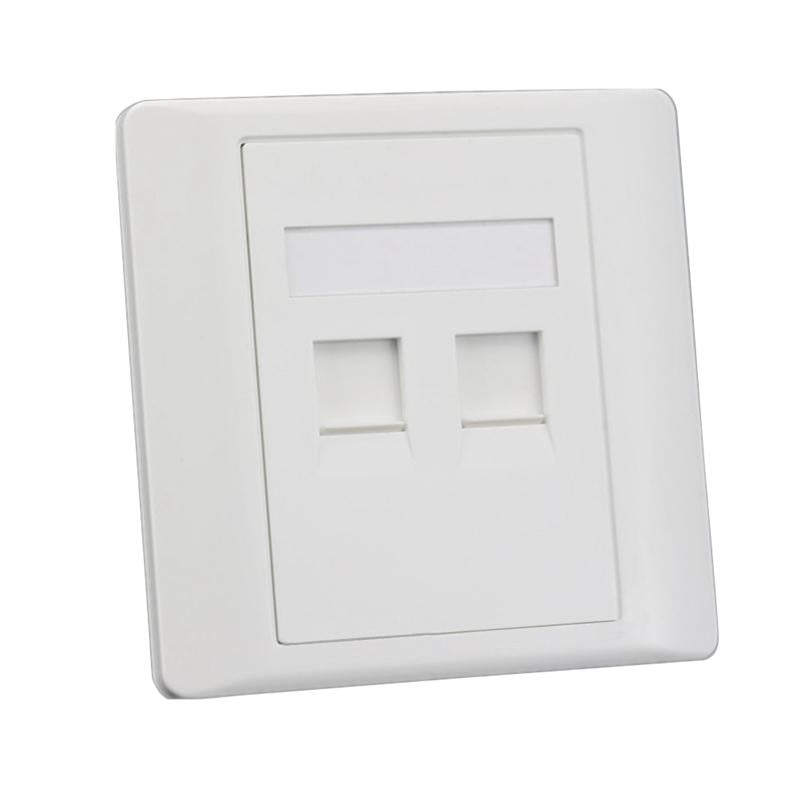

Double RJ45 network wall faceplate, angled view showing two keystone port openings

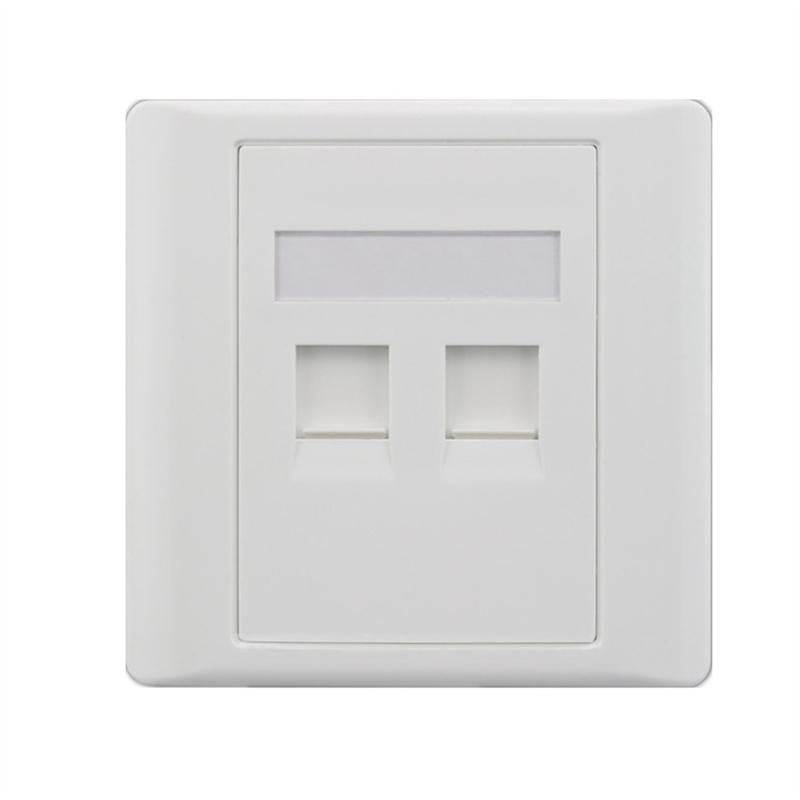

Double RJ45 network wall faceplate, straight-on front view with blank label strip

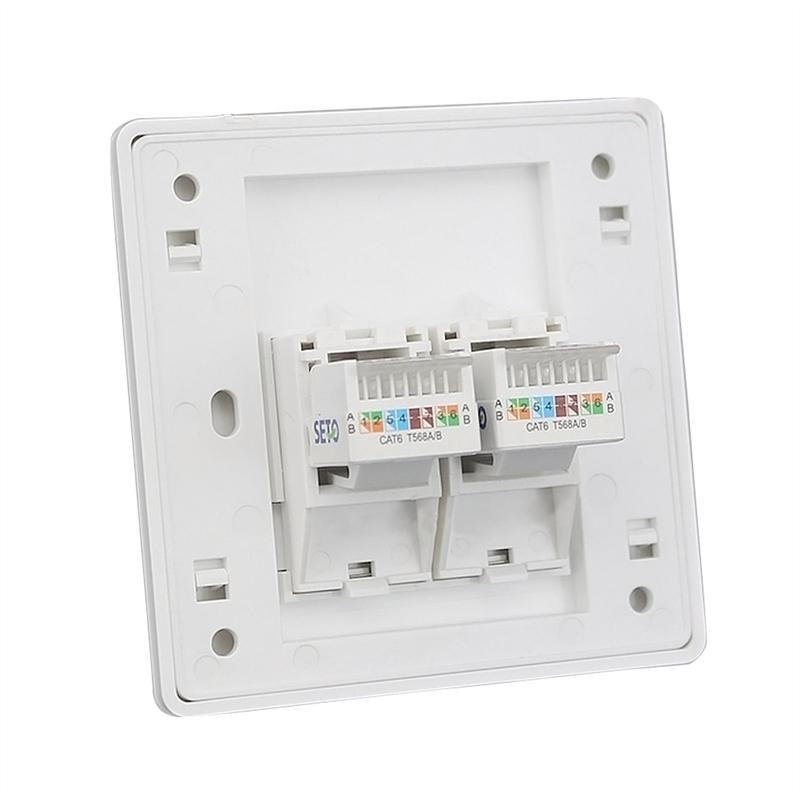

Double RJ45 network wall faceplate rear view showing two CAT6 keystone jacks fitted

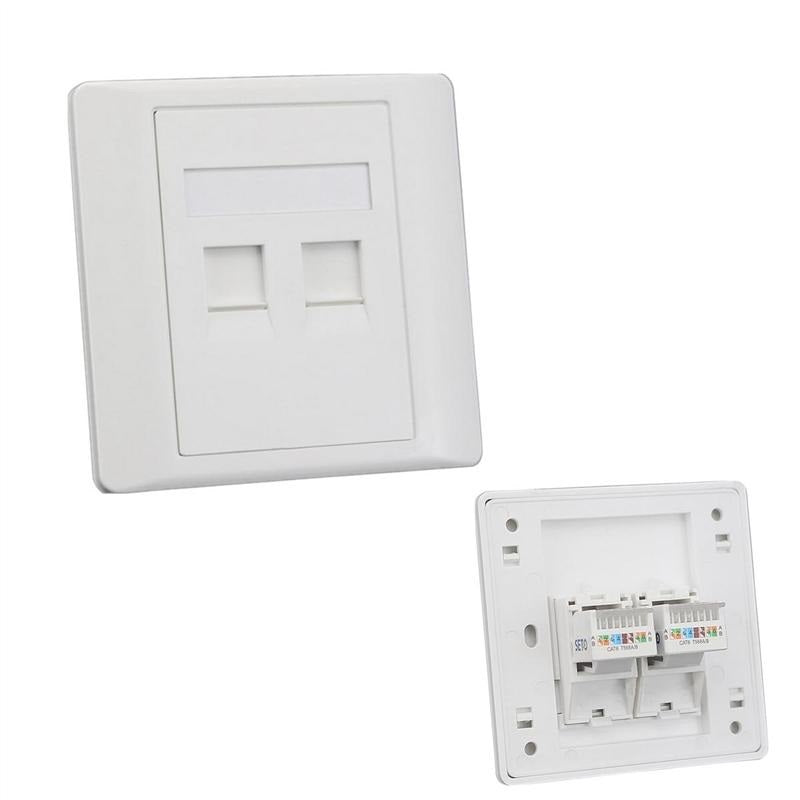

Double RJ45 network wall faceplate shown front and rear with keystone jacks wired

Double RJ45 Network Wall Faceplate 86x86mm - Keystone Jack Outlet Plate, White

Alcell
R 30
Estimated delivery 1–3 working days
In stock
FAST NATIONWIDE DELIVERY
Reliable delivery, every order
Quantity
In stock
  • Interest Free Payments available
  • Hassle Free Returns within 7 days
  • 6-month limited warranty
Price: R 30

Description

Faceplates are designed to provide optimal outlet separation to reduce alien cross talk. Part of the Premium 5e cabling system & System 6 cabling system.

Key features

  • Slide-in designation labels allow users to easily identify connections at the outlet.
  • Bestnet faceplates available in Bright White colour.
  • Fits into most single gang boxes for wall mounting.
  • Built-In shutter to prevent dust.
  • Includes head screws to secure cover to base
  • Intensity : 15kV(DC) / min.
  • Fit for RJ45 keystone jack and outlet plates

Specifications

  • Material : ABS
  • Standards : ISO/IEC 11801
  • Dimension : 86 x 86mm
  • Environment temperature : 25-45 degree Celsius
  • Relative humidity : 85% RH at 30
  • Atmosphere pressure : 70-106kPa
  • Insulated resistance : 2 x 10M/500V DC

Frequently Bought Together Frequently bought

Product Information

Categories Electrical / Specials
Type Double faceplate (RJ45)
Color Bright White
Material ABS
Standards ISO/IEC 11801
Dimensions 86 x 86 mm
Operating Temp 25-45 degrees C
Humidity 85% RH at 30 C
Atmosphere 70-106 kPa
Insulated Resistance 2 x 10M / 500V DC
Intensity 15kV (DC) / min
Compatibility RJ45 keystone jack and outlet plates
Mounting Fits single gang boxes
