ZATECH 9U Swing 500+100 Server Cabinet – Wall Mount Network Rack
Full Product Description

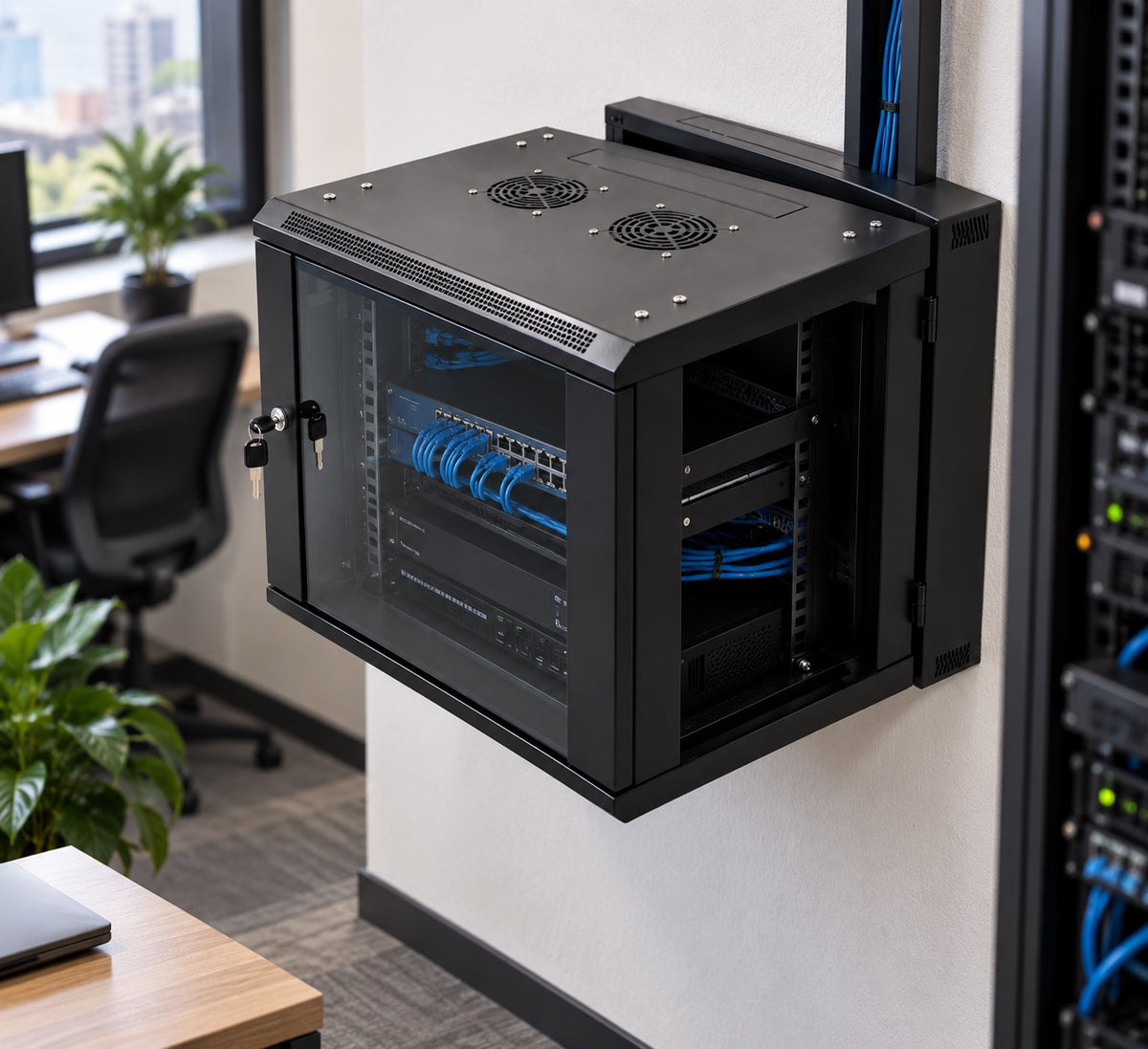

The ZATECH 9U Swing 500+100 Server Cabinet is a professional wall-mount network enclosure designed for organising and protecting 19-inch networking, CCTV, telecommunications and IT equipment.

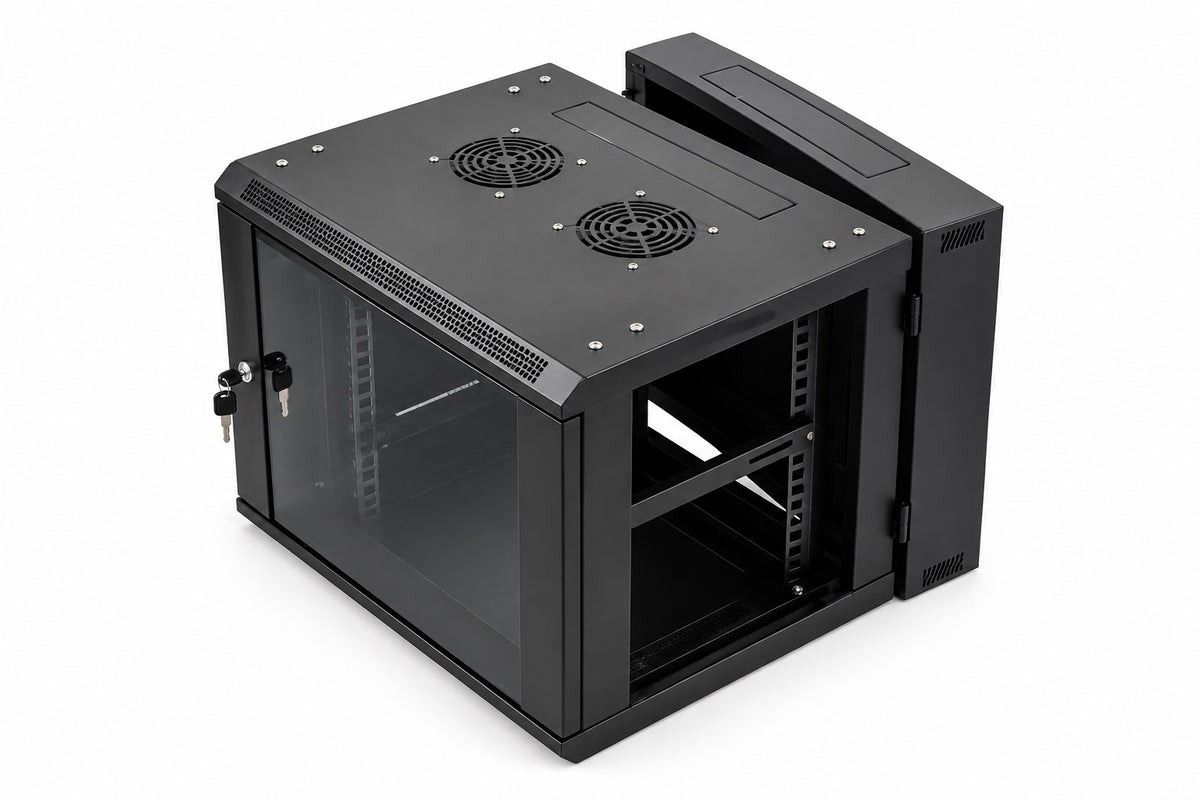

The cabinet uses a dual-section swing design, consisting of a 500mm main cabinet section plus a 100mm rear swing section. This provides convenient rear access to installed equipment, cabling and connections without requiring the entire cabinet to be removed from the wall. Comparable 9U dual-section cabinets use an overall 600mm width and approximately 500mm cabinet height.

Designed around the standard 19-inch rack format, the 9U cabinet is suitable for compatible equipment such as network switches, patch panels, CCTV equipment, fibre equipment, routers and other rack-mountable devices.

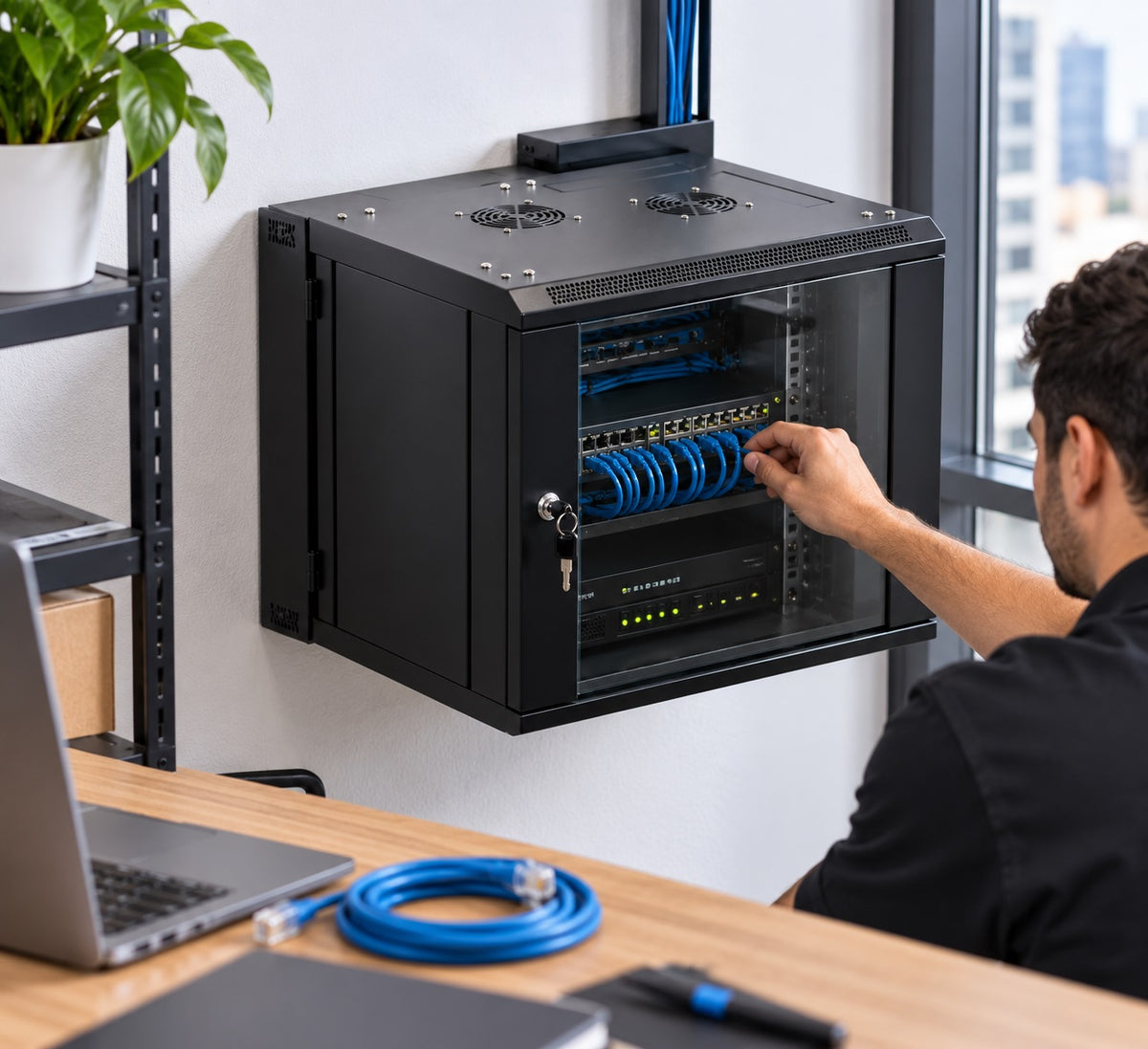

The swing-out rear section is especially useful during installation and maintenance because technicians can access the rear of installed equipment and cable connections more easily.

A tempered/toughened glass front door provides visibility of installed equipment while helping protect it against unwanted access. Comparable ZATECH swing cabinets are listed with tempered-glass front doors and ventilated panels.

Cable-entry points provide convenient routing of network, CCTV, fibre and power cabling into the enclosure. Dual-section 500+100 cabinet designs typically provide cable entry from the top and bottom and provision for optional cooling fans.

The ZATECH 9U Swing Cabinet is an excellent choice for CCTV installations, network rooms, offices, retail environments, schools, warehouses and structured-cabling installations where secure wall-mounted equipment organisation is required.

Key Features
Brand: ZATECH
9U Server / Network Cabinet
19-Inch Rack Format
Wall-Mount Design
500mm Main Section + 100mm Swing Section
Dual-Section Cabinet Design
Swing-Out Rear Section
Convenient Rear Equipment Access
Tempered Glass Front Door
Designed for Network & CCTV Equipment
Suitable for Patch Panels
Suitable for Network Switches
Cable Management Access
Ventilation Provision
Professional Black Cabinet Design
Suitable for IT & Telecommunications
Ideal for CCTV Installations
Suitable for Structured Cabling
Full Specifications
Specification Details
Brand ZATECH
Product Type Swing Server / Network Cabinet
Rack Capacity 9U
Rack Standard 19 Inch
Installation Type Wall Mount
Cabinet Design Dual Section / Swing
Main Section Depth 500mm
Rear Swing Section 100mm
Combined Depth Approx. 600mm
Typical Width 600mm
Front Door Tempered / Toughened Glass
Cable Entry Yes
Application Networking, CCTV, IT & Telecommunications

A standard 9U 500+100 dual-section cabinet is specified at approximately 600mm wide × 600mm overall depth × 500mm high, although the exact ZATECH carton/product dimensions should be confirmed from the physical cabinet before using them for freight calculations.

500+100 Swing Design

The 500+100 configuration means:

500mm – main equipment cabinet section
100mm – rear swing / wall-mount section

The rear section allows the main cabinet body to swing away from the wall, providing easier access to cables and the rear connections of installed equipment.

Suitable Equipment

The cabinet can accommodate compatible 19-inch rack equipment such as:

Network switches
Patch panels
CCTV network equipment
Fibre patch panels
Routers
Cable-management panels
Power distribution equipment
Other compatible 19-inch rack accessories
Ideal For

CCTV Installations • Network Rooms • Offices • Retail Stores • Schools • Warehouses • Server Rooms • IT Installations • Structured Cabling • Telecommunications

What`s in the Box
1 × ZATECH 9U Swing 500+100 Server Cabinet
Cabinet mounting / rack hardware as supplied
