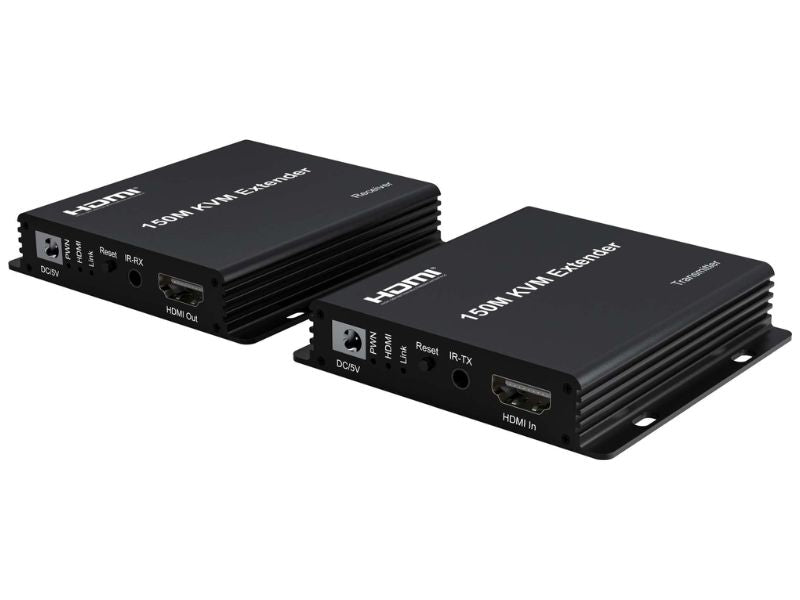

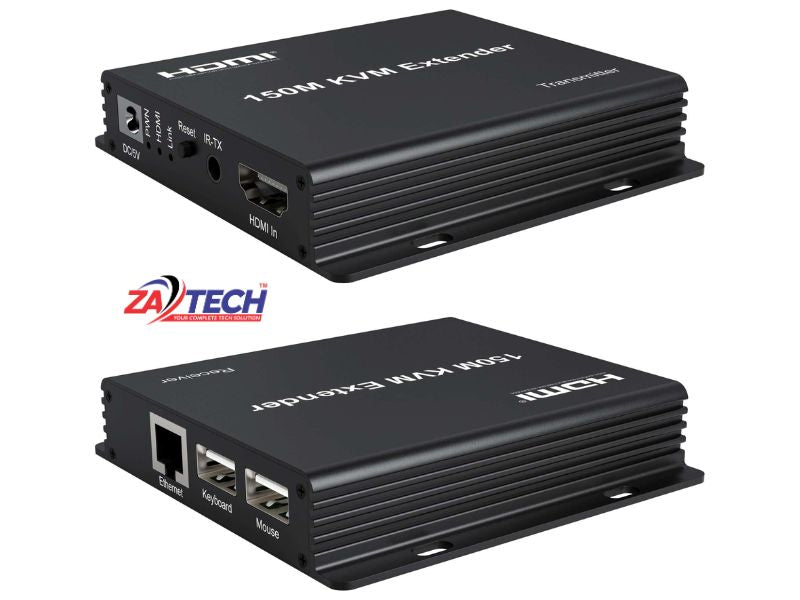

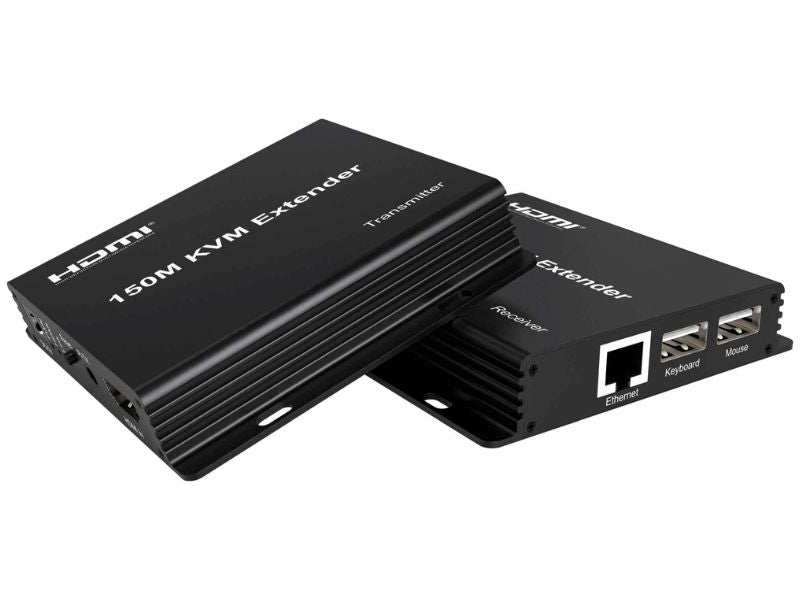

ZATECH Hdmi 150M Kvm Extender

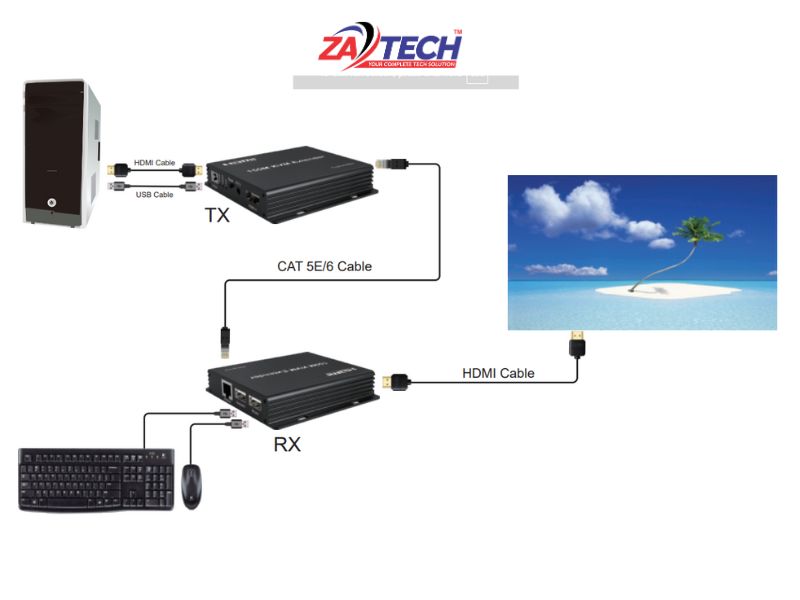

ZATECH HDMI KVM Extender – 150M over Cat5e/6, Full HD 1080p. The Extender uses single cat5e or cat6(recommended) cables instead of HDMI cable to transmit high definition signal up to 150 meters, cutting down the cost. The Extender is designed to supply for long distance transmission of high definition signal.

Key features

• Support USB mouse and keyboard extension
• Support point-to-point mode and cascade connection mode;
• Low power consumption, low temperature and high safety'a3`bb
• Support IR remote control;
• Support USB mouse and keyboard extension;
• The design of pure hardware, plug and play, no need for additional software.
• Resolutions ...................................................................................... 480P/720P/1080
• Support video color format `85.`85`85`85`85`85`85`85`85`85`85`85`85`85`85.`85...... 8bit YCbYCr/RGB
• Max baud rate `85`85`85`85`85`85.`85`85.`85`85`85`85`85`85`85.`85`85`85`85.`85`85`85`85`85`85`85... 1Gbps
• Input HDMI cable distance `85`85`85`85.`85................ ≤10m AWG26 HDMI standard cable
• Output HDMI cable distance ................................ ≤15m AWG26 HDMI standard cable
• Power adapter format ..........`85. Input AC (50HZ, 60HZ) 100V-240V; output: DC5V/1A

Specifications

• USB- remote over cat5e/cat6
• Support 150m long distance transmission;
• 1 x Transmitter
• 1 x Receiver
• 2 x 5V power adapters
• 1 x IR cable
• 1 x USB cable male to male
• 1 x User’s Manual
