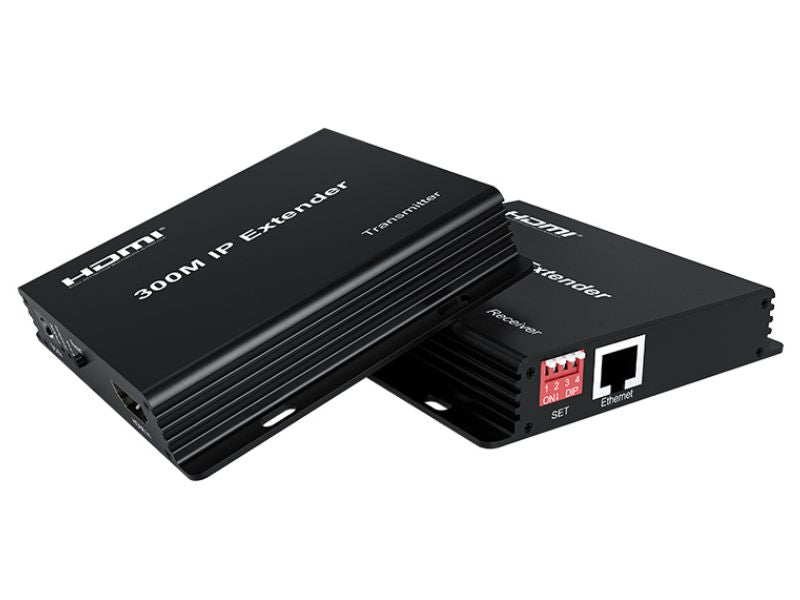

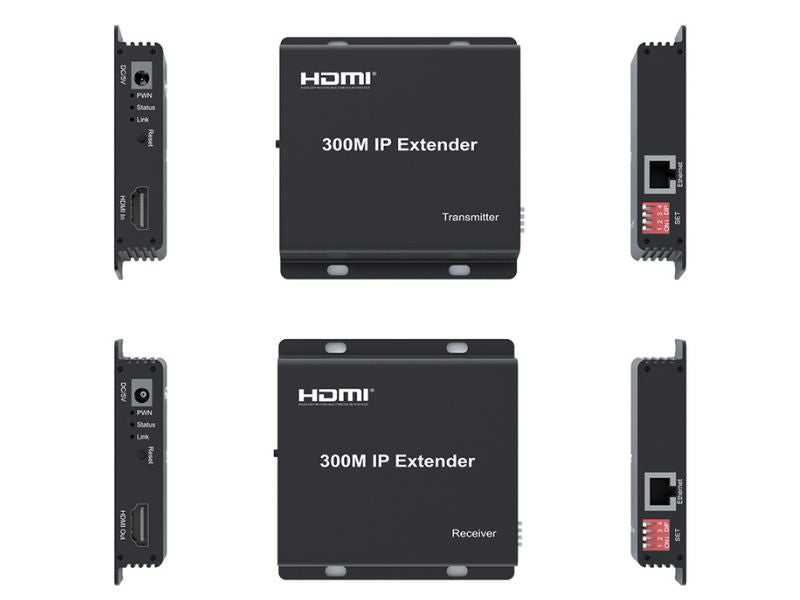

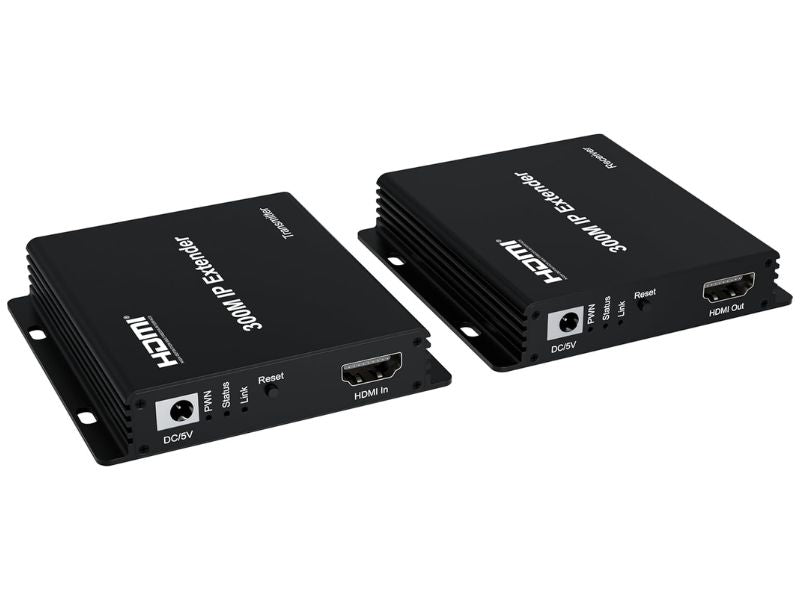

ZATECH Hdmi 300M Ip Extender

300M HDMI IP Extender is based on TCP/IP standard. It transmits your HD. display with the high resolution up to 300 meters away from your DVD or computer.

Key features

• Charger included
• 1080P HDMI KVM Extender Muitlpoint Connect Network Switch
• source by using one CAT5e/6 cable. At the same time, it’s convenient to transmit
• HDMI audio and video source by point-to-point mode, point-to-multipoint, multipoint-to
• multipoint mode and cascade connection mode
• Decoding Mode MJPEG

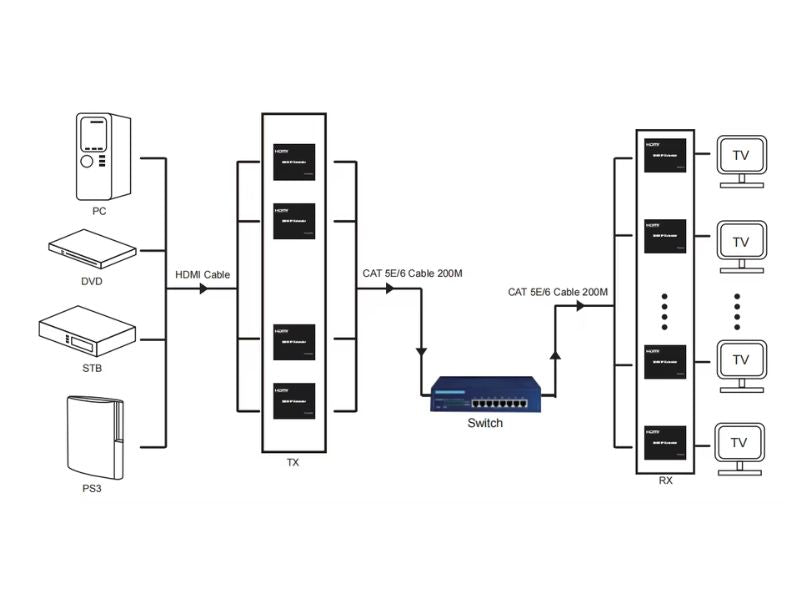

• Support point-to-point mode, point-to-multipoint mode, multipoint-to-multipoint mode
• The design of pure hardware, plug and play, no need for additional software
• Resolutions ...................................................................................... 480P/720P/1080P
• Audio .............................................................. Sample rate:32kHz,44.1kHz and 48kHz
• Power adapter format ..........`85. Input AC (50HZ, 60HZ) 100V-240V; output: DC5V/1A
• The max working current ..`85`85`85`85`85...`85`85`85`85`85...`85`85... TX 450mA'a3`acRX 400mA
• Storage Temperature/Humidity .................. -10℃-70℃/5%-90%RH(no condensation)
• HDMI 300M extender over IP is used in audio-visual conference, command and control
• center, ticketing platform, home theater, multi-media teaching, conference system and so on

Specifications

• Support HDCP1.4
• and cascade connection mode'a3`bb
• 802.3 Ethernet standard'a3`bb
• Size(L-W-H) .............................................................................................. 90*91*19mm
• Weight ............................................................................................................. 120g x 2
• Operating Temperature/Humidity ................. 0℃-45℃/10%-80%RH(no condensation)
• 1 x Transmitter
• 1 x Receiver
• 2 x 5V power adapters
• 1 x User’s Manual
