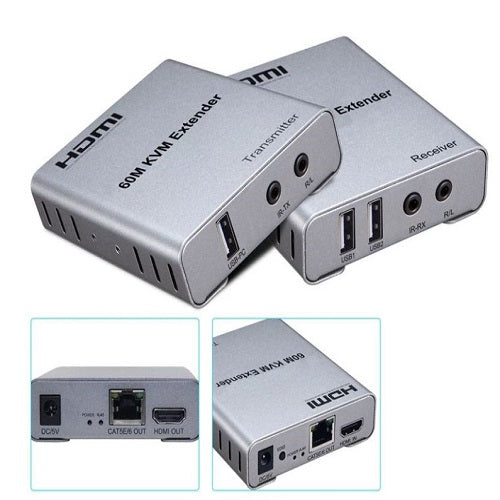

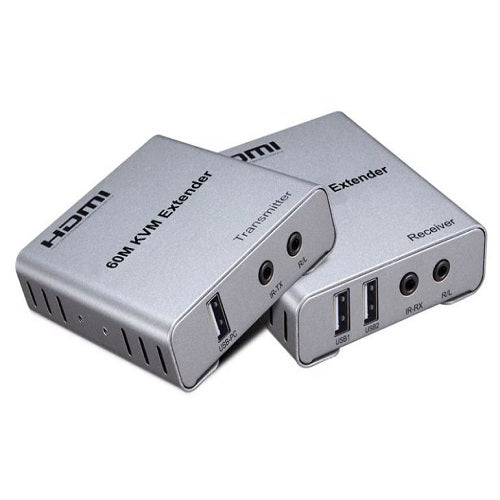

ZATECH Hdmi 60M Kvm Extender With Audio
GENERICon orders over R 500
When do I get it?
Estimated delivery times depend on where you are. Your exact date is confirmed at checkout.
| Delivery destination | Delivery time |
|---|---|
| Cape Town, Durban, Johannesburg & Pretoria | 2–4 working days |
| Regional areas | 5–6 working days |
| Remote areas | 3–7 working days |
- Interest Free Payments available
- Hassle Free Returns within 7 days
- 6-month limited warranty
Description

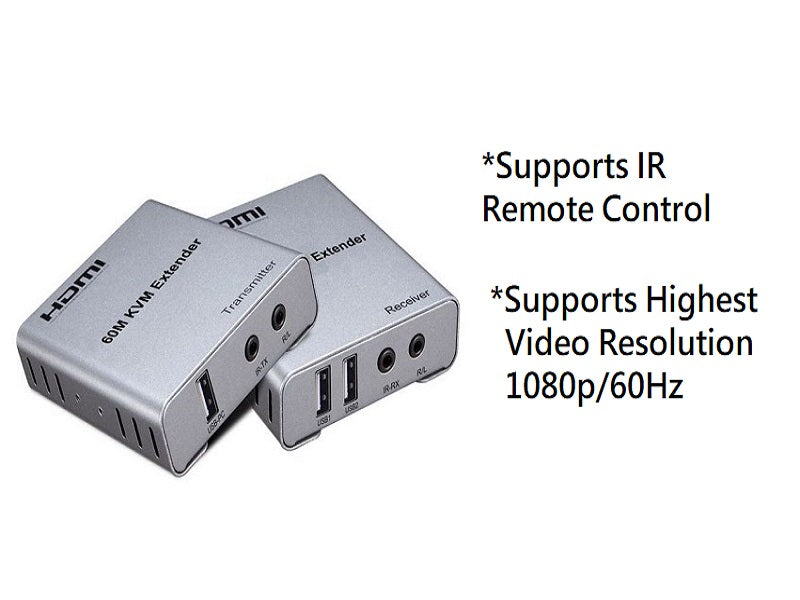

Supports the highest resolution up to 1080P/60Hz. 60M long-distance transmission. Both the transmitter and receiver support 3.5MM left and right channel audio output. Low power consumption, low temperature, high safety. Support infrared IR control. Support USB mouse and keyboard extension. Product name: KVM single network extender. CAT5e or CAT6 cable length between the receiving end and the transmitting end: up to 60 meters. Input HDMI cable length: less than or equal to 10m AWG26 standard HDMI cable.
Key features
- Output HDMI cable length: less than or equal to 15m AWG26 standard HDMI cable
- Application scenarios: HDMI cable extenders are mostly used in audio-visual conferences, command and control centers, ticketing platforms, home theaters, multimedia teaching, conference systems, etc.
Specifications
- USB- remote over cat5e/cat6
- HDMI input: 1080p/1080i/720p/576p/576i/480p/480i
- HDMI output: 1080p/1080i/720p/576p/576i/480p/480i
- Maximum transmission bandwidth: 150MHz
- Maximum transmission rate: 4.5Gbps
- Input video signal: 0.5~1.5Volts p-p
- Output DDC signal: 5Volts p-p (TTL)
- Maximum working current TX: 300mA
- Maximum working current RX: 300mA
- Power specification: Input: AC (50Hz, 60Hz) 100V-240V
- Output: DC 5V/1A
- Operating temperature range: (-15 to +45 Celsius)
- Operating humidity range: 5 to 90RH (no condensation)
- 1 x Extender Transmitter
- 1 x Extender Receiver
- 1 x IR Emission Line
- 1 x IR Receiving Line
- 2 x Power Adapter
- 1 x Instruction Manual
Frequently Bought Together Frequently bought
Product Information
| Categories | Generic / Networking / Specials |
| Brand | Zatech |
| Type | HDMI KVM Extender with Audio |
| Transmission Distance | Up to 60m |
| Cable | CAT5e/CAT6 |
| Resolution | 1080p/60Hz |
| Max Bandwidth | 150MHz |
| Max Transmission Rate | 4.5Gbps |
| Power Input | AC 100-240V, 50/60Hz |
| Power Output | DC 5V/1A |
| Max Working Current | 300mA (TX/RX) |
| Operating Temperature | -15 to +45 Celsius |
| Operating Humidity | 5 to 90% RH |
| Audio Output | 3.5mm L/R |
| Features | IR Control, USB Mouse/Keyboard Extension |
| Barcode | ZA-KVMEXTHDMI-60M |
Customer reviews
Works but with Some Caveats
These work quite well and do not have a lot of KB and mouse input lag which some of my other KVM extenders have. One issue I do find is the lack of a monitor output on the transmitter side and sometimes the GPU does not output a signal. The receiver unit is also a bit picky regarding mouse types and I have a few mice that do not work with the receiver. It also does not work with any of my KVM switches so I have to use a dedicated mouse and keyboard.
The device is working perfectly fine
fast delivery and product wrks good
kvm extender
tested it with 20m cable worked great no real lag , no need to have noisy pc in same room.
Great product
Product works as advertised. Quality is great and there is no delay. As stated, USBs work for a keyboard and mouse but unfortunately they do not work with other USB devices.
great devices
the devices are easy to use, the lights to indicate the signal are very useful. did the job I needed perfectly.
-
Works but with Some Caveats
These work quite well and do not have a lot of KB and mouse input lag which some of my other KVM extenders have. One issue I do find is the lack of a monitor output on the transmitter side and sometimes the GPU does not output a signal. The receiver unit is also a bit picky regarding mouse types and I have a few mice that do not work with the receiver. It also does not work with any of my KVM switches so I have to use a dedicated mouse and keyboard.
-
The device is working perfectly fine
-
fast delivery and product wrks good
-
kvm extender
tested it with 20m cable worked great no real lag , no need to have noisy pc in same room.
-
Great product
Product works as advertised. Quality is great and there is no delay. As stated, USBs work for a keyboard and mouse but unfortunately they do not work with other USB devices.
-
great devices
the devices are easy to use, the lights to indicate the signal are very useful. did the job I needed perfectly.
-
good
very good for cctv installation
