ZATECH HDMI Exten…

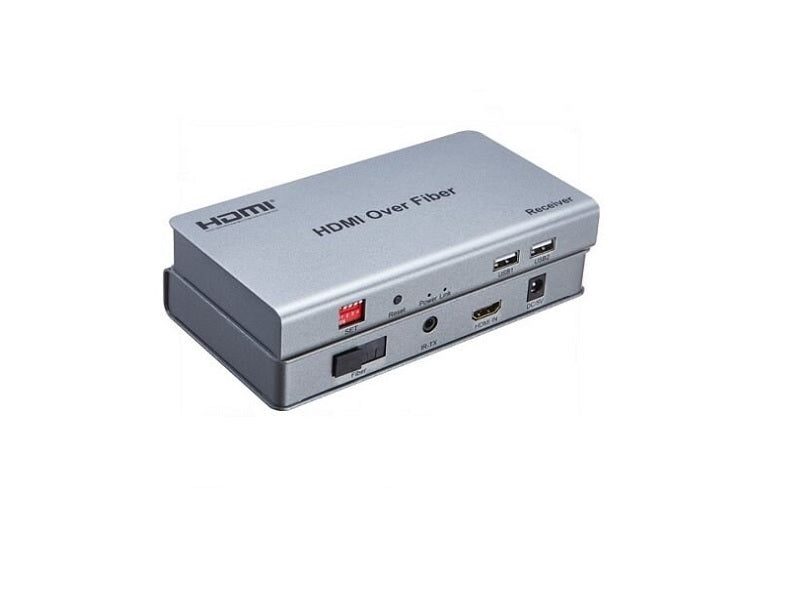

Zatech HDMI over Fibre extender unit showing its USB and fibre optic ports

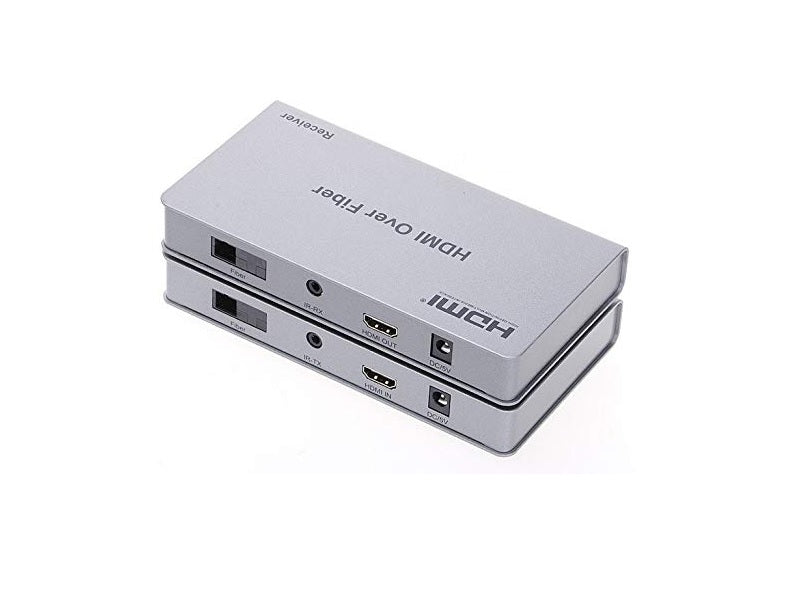

Stacked transmitter and receiver units showing HDMI in/out and fibre ports

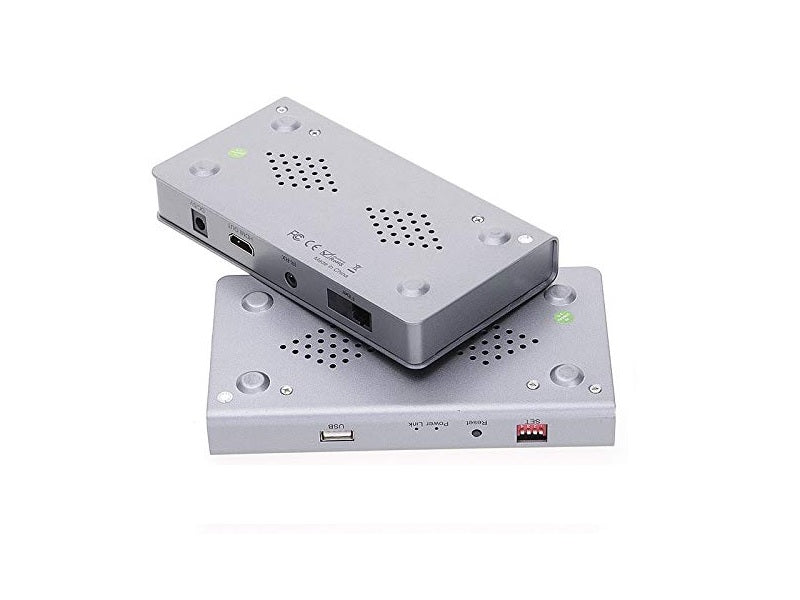

Underside view of the units showing the USB port and DIP switch settings

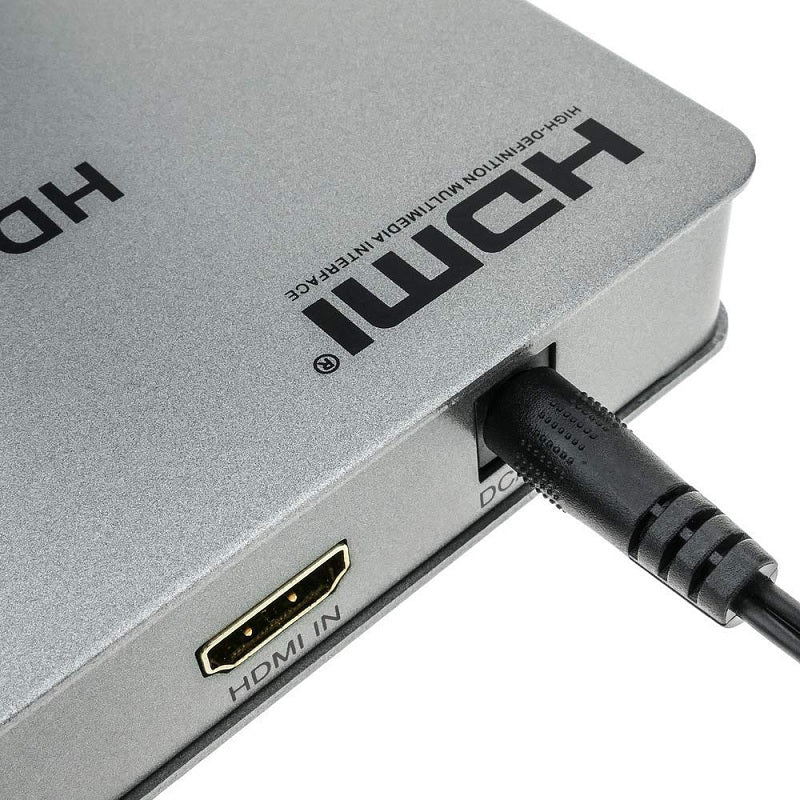

Close-up of the unit's HDMI logo, HDMI In port and DC power connector

ZATECH HDMI Extender 20km over Fibre - 1080p, USB & IR, SC Single/Multi Mode

SUPPORT MULTIPOINT TO POINT IR CON 1080P

ZATECH
R 6,310
Estimated delivery 1–3 working days
In stock
FAST NATIONWIDE DELIVERY
Reliable delivery, every order
Quantity
In stock
  • Interest Free Payments available
  • Hassle Free Returns within 7 days
  • 12-month limited warranty
Flexible payments from only R 1,051.66 over 2–6 instalments
Price: R 6,310

Description

Support point-to-point mode, multipoint-to-multipoint mode and cascade connection mode. Support one way IR extension.

Key features

  • Support signal mode fiber and multi mode fiber transmit
  • Pure hardware design, plug and play, do not need to install additional software Specifications:
  • HDMI, USB and IR video extender.
  • It consists of a loc moduleand a remote module that are connected by multimode or single mode fiber optic cable.
  • Maximum distance point to point: 20 Km.
  • Local module connectors: HDMI input, USB input (type B-female) for keyboard/mouse, IR emitter connector (minijack 3.5mm female), fiber optic connector (SC-female), and 5 VDC power connector (DC- jack-female).
  • Remote module connectors: HDMI output for rem screenote, 2 USB outputs (keyboard/mouse), IR receiver connector (minijack 3.5mm female), fiber optic connector (SC-female), and 5 VDC power connector (DC-jack-female).
  • Compatible with USB 1.1 and USB 2.0.
  • Resolution 480p, 720p and 1080p.

Specifications

  • Support multipoint TO point IR CON 1080P
  • Support HDMI1.3/HDCP1.1&1.2
  • Compatible with HDMI 1.3 and HDCP 1.1/1.2

Frequently Bought Together Frequently bought

Product Information

Warranty 12-month limited warranty
Categories Networking / Specials / ZATECH / ZATECH Networking
Brand ZATECH
Type HDMI/USB/IR Extender over Fibre
Max Distance 20 km point-to-point
Fibre Type Single mode / Multi mode
Fibre Connector SC-female
Resolutions 480p, 720p, 1080p
HDMI 1.3
HDCP 1.1/1.2
USB Compatibility USB 1.1 and 2.0
Modes Point-to-point, multipoint-to-multipoint, cascade
IR Extension One way
Power Input 5 VDC
SKU ZA-EXTHDMI-20KM-FIB
