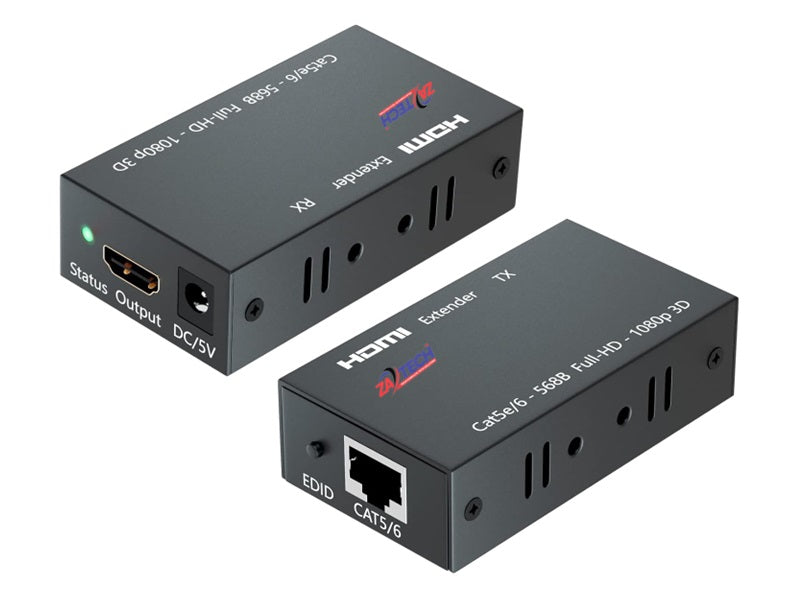

Zatech HDMI Extender 60m over Cat5e/Cat6 - 1080p, EDID Switch, 150MHz
Zatech HDMI Extender 60m over Cat5e/Cat6 - 1080p, EDID Switch, 150MHz
Zatech
R 242R 269
Estimated delivery
1–3 working days
In stock
FAST NATIONWIDE DELIVERY
Reliable delivery, every order
Reliable delivery, every order
Quantity
In stock
When do I get it?
Estimated delivery times depend on where you are. Your exact date is confirmed at checkout.
| Delivery destination | Delivery time |
|---|---|
| Cape Town, Durban, Johannesburg & Pretoria | 1–3 working days |
| Regional areas | 5–6 working days |
| Remote areas | 3–7 working days |
- Interest Free Payments available
- Hassle Free Returns within 7 days
- 6-month limited warranty
Flexible payments from
only
R 40.33
over 2–6 instalments
Description

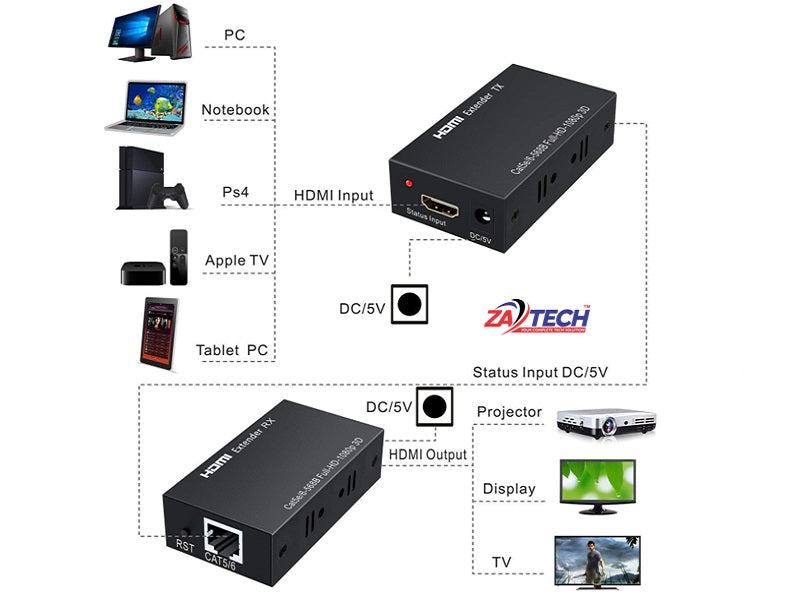

This allows you to extend an HDMI signal using a CAT5e cable. This is done so that you can connect the HDMI signal over a long distance. It can support a 60m long CAT5e cable.
Key features

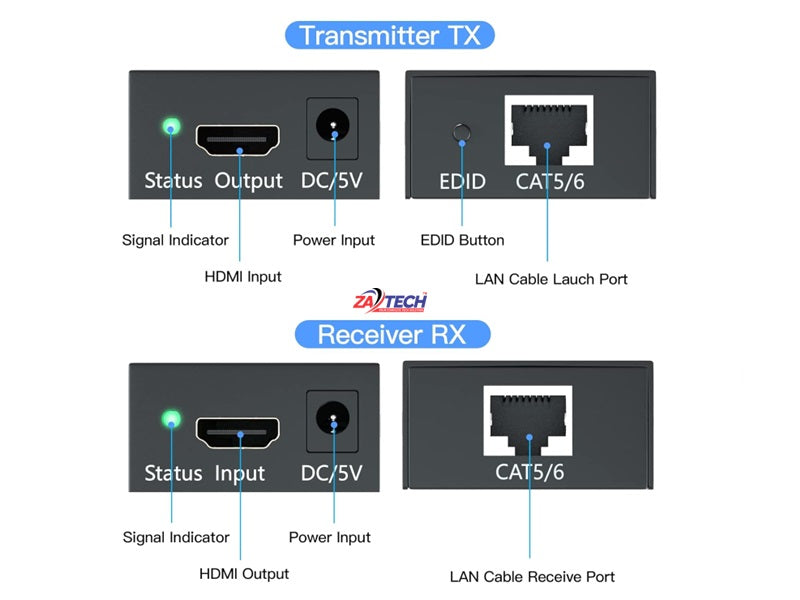

- The HDMI receiver (RX) has an HDMI output.
- The HDMI transmitter (TX) has an HDMI input.
- The EDID button on the HDMI transmitter allows you to switch between 720p and 1080p.
- It has an LED light indicator to tell you if there is signal.
- It is lightweight and portable.

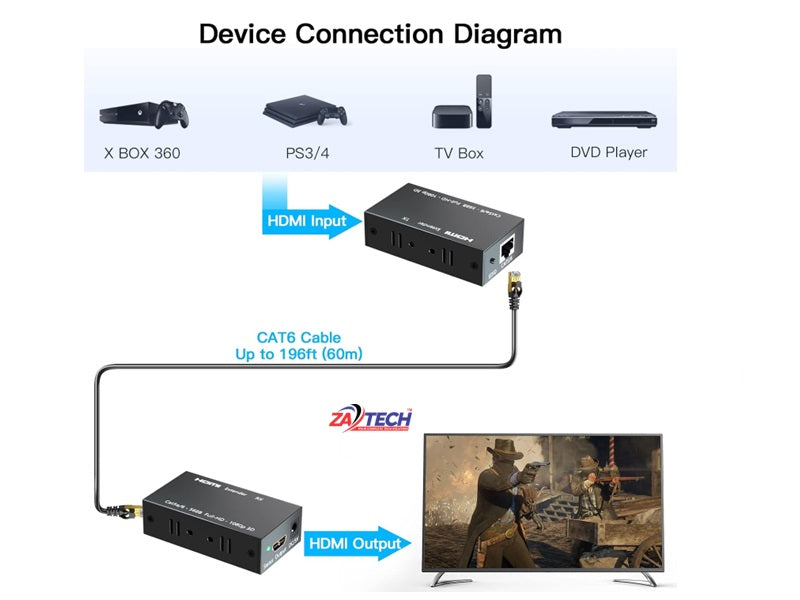

- Supports a 60m CAT5e/6 cable between the HDMI transmitter and HDMI receiver.
- HDMI transmitter input cable distance to source device is 10m HDMI cable.
- HDMI receiver output cable distance to display device is 15m HDMI cable.
- Power adapter format for transmitter input is AC 50HZ,60HZ at 100V-240V.
- Power adapter format for receiver output is DC 5V/1A.
- Maximum baud rate is 4.5Gbps.
- Supports Input video signal of 0.5~1.5Volts p-p.
- Output DDC signal is 5Volts p-p (TTL).
- HDMI transmitter and HDMI receiver maximum working current are both 300mA.
Specifications
- HDMI input supports 1080p/1080i/720p/576p/576i/480p/480i.
- HDMI output supports 1080p/1080i/720p/576p/576i/480p/480i.
- Maximum bandwidth is 150MHz.
Frequently Bought Together Frequently bought
IP-COM ANT12-5G360 5GHz 12dBi Dual Polarity Omni Antenna - 360°, 2x2 MIMO, RP-SMA
In stockR 1,456 R 1,599IP-COM G2210P-8-120W 9GE+1SFP Cloud Managed PoE Switch - 8x PoE+, 120W, 20Gbps
In stockR 1,456 R 1,499IP-COM M20-8G-PoE 9-Port Gigabit Cloud Managed PoE Router - 110W, 8 PoE+, VPN (M20-8G-PoE)
In stockR 1,456 R 1,499
Product Information
| Categories | Networking / Specials |
| Brand | Zatech |
| Type | HDMI Extender over CAT5e/CAT6 |
| Max Distance | 60 m CAT5e/CAT6 |
| TX Input Cable | 10 m HDMI |
| RX Output Cable | 15 m HDMI |
| Resolutions | 1080p/1080i/720p/576p/576i/480p/480i |
| EDID Switch | 720p / 1080p |
| Bandwidth | 150 MHz |
| Baud Rate | 4.5 Gbps |
| Input Signal | 0.5-1.5 V p-p |
| Output DDC Signal | 5 V p-p (TTL) |
| TX Power Input | AC 100-240V, 50/60Hz |
| RX Power Input | DC 5V/1A |
| Max Working Current | 300 mA (TX and RX) |
