ZATECH ZA-HMSB-4K…
3% OFF

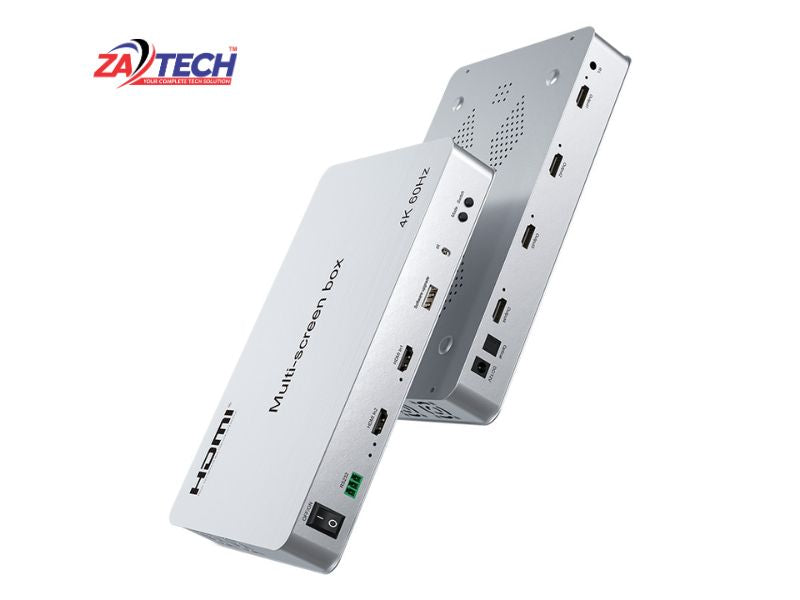

Zatech ZA-HMSB-4K multi-screen box, angled view of front input and rear output ports

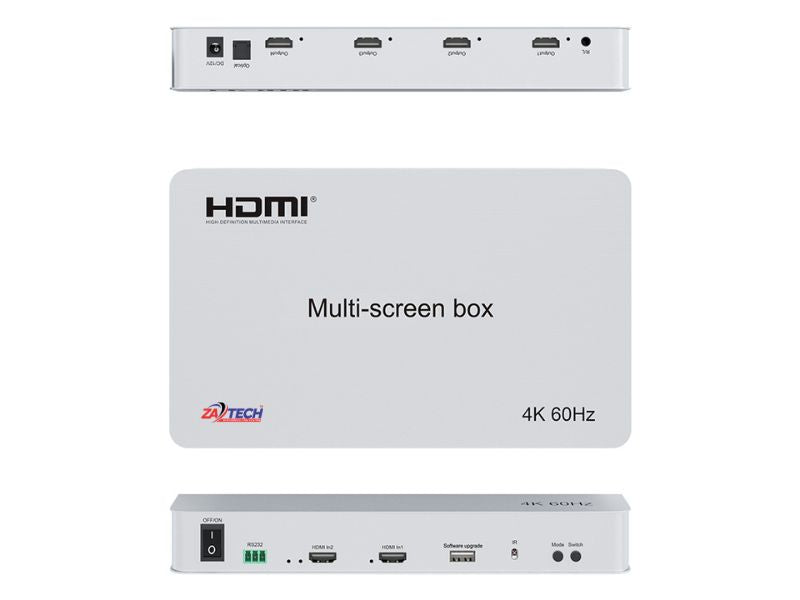

Zatech ZA-HMSB-4K multi-screen box shown in top, front and rear panel views with port labels

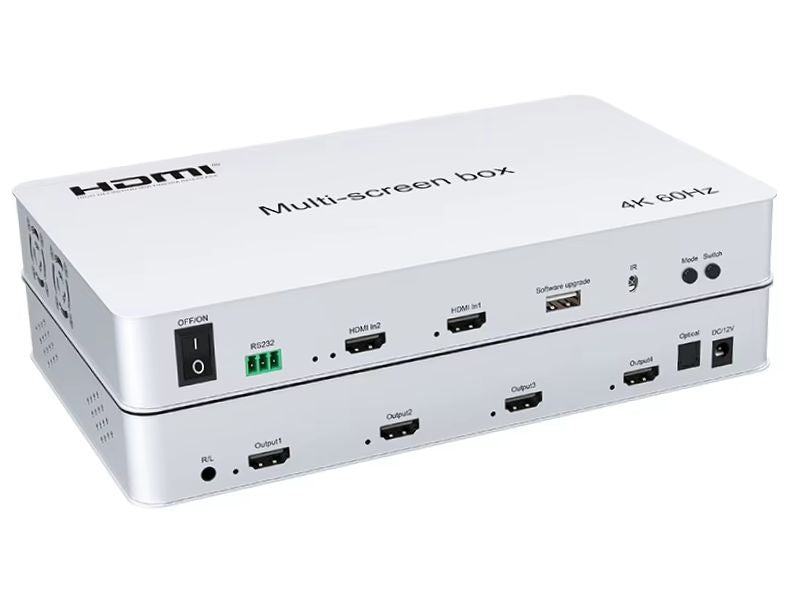

Zatech ZA-HMSB-4K multi-screen box front and rear panels stacked at an angle

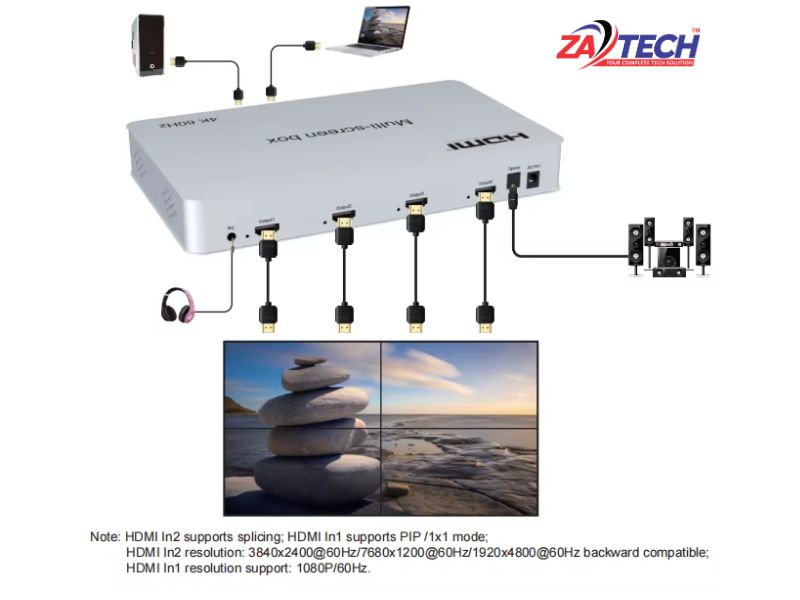

Diagram of ZA-HMSB-4K multi-screen box wired to a laptop and PC producing a 2x2 video wall

ZATECH ZA-HMSB-4K HDMI Multi-Screen Box - 4K@60Hz, 2x2 Video Wall, PIP, RS232

ZATECH
R 4,854R 4,999
Estimated delivery 1–3 working days
In stock
FAST NATIONWIDE DELIVERY
Reliable delivery, every order
Quantity
In stock
  • Interest Free Payments available
  • Hassle Free Returns within 7 days
  • 12-month limited warranty
Flexible payments from only R 809.00 over 2–6 instalments
Price: R 4,854

Description

ZATECH 4K 60Hz Multi-Screen Box - Video Wall Box with PI. 1x2 / 1x3 / 1x4 / 2x2 Video Wall Controller with PIP & Split Modes.

Key features

  • Multi-screen system is an industrial-grade high-performance product specially developed for small-scale LCD splicing screen,multi-channel projection fusion and other scenarios. With the HDMI input and the HDMI output interface. Simple installation, easy to debug, plug and play.
  • Super-high resolution,
  • support 4 HDMI outputs with each resolution maximum 1920 x1080p@60hz;
  • Point to point, no stretching, no deformation, no need to compress the input source, clear picture;
  • Support two HDMI inputs, HDMI IN2 is 4K@60Hz, HDMI IN1 is 1080P@60Hz (Signal source select IN2, only in 2x2 mode have picture in picture (PIP) function):
  • Support four HDMI outputs, one 3.5mm stereo output, and a fiber audio output;
  • Support the power-off-memory function;
  • Support 2x2 splicing, easy to operate, plug and play

Specifications

  • Support RS232 protocol;
  • 1 x Multi-Screen box
  • 1 x Remote
  • 1 x Power adapter
  • 1 x User manual

Frequently Bought Together Frequently bought

Product Information

Warranty 12-month limited warranty
Categories Networking / New Arrivals / Specials / ZATECH / ZATECH Networking
Brand ZATECH
Type 1x2 / 1x3 / 1x4 / 2x2 Video Wall Controller
Max Resolution 1920 x 1080p @ 60Hz per output
HDMI Inputs 2 (IN2: 4K@60Hz, IN1: 1080P@60Hz)
HDMI Outputs 4
Audio Outputs 3.5mm stereo + fiber audio
Control RS232 protocol, remote
Features PIP, 2x2 splicing, power-off memory
In The Box Multi-Screen box, remote, power adapter, manual
SKU ZA-HMSB-4K
