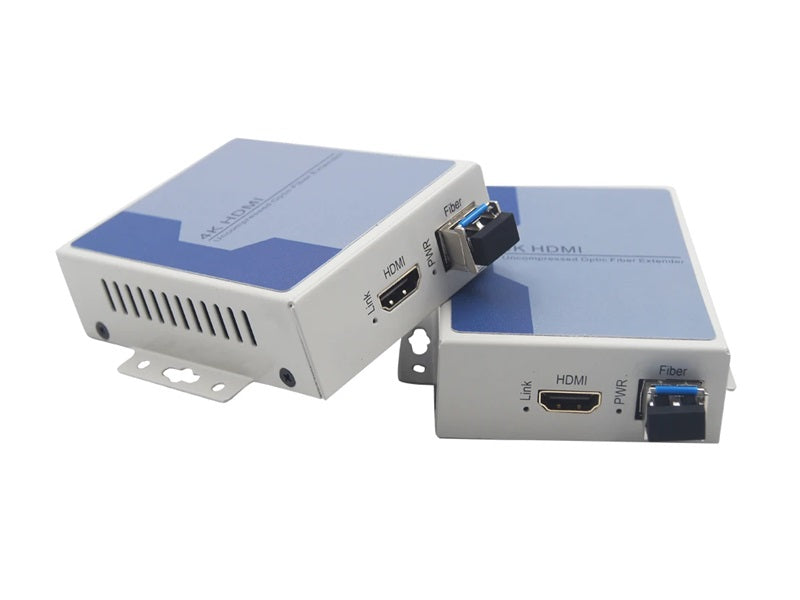

FIBRE 4K - Hdmi Coverter Single Fibre

Experts in fiber optic communications, digital security, and network transmission. Supports 7.1 channels and LPCM, Dolby TrueHD, DTS-HD Master Audio.

Key features

• Single mode SC
• HDMI cable
• Optical transmitter
• Optical transceiver
• This HDMI fiber extender can convert HDMI high-definition signals into optical signals and transmit them up to 10 kilometers away, and then restore them to HDMI high-definition signals to connect to the display. It is compatible with HDMI devices on the market, supports up to 4K60Hz ultra-high-definition video transmission, has EDID transparent transmission and EDID management functions, and can also support RS232 or USB1.1 transparent transmission.
• Used in various long-distance transmission scenarios.
• Using a single-mode optical fiber cable, 4K ultra-high-definition video signals can be transmitted 10 kilometers away.
• 4K ultra-high-definition video signals can be transmitted 300~500 meters through a multi-mode optical fiber cable (50/125`b5m/OM3).
• Supports up to 7.1 channels and LPCM, Dolby TrueHD, DTS-HD Master Audio.
• Support EDID transparent transmission and EDID management, compatible with various HDMI display devices,
• Support RS232 transparent transmission, baud rate support range 110~115200bps.
• Easy installation, plug and play
• mouse
• keyboard
• PWR power indicator light, using 5V power supply, always on after power on
• TV or LED screen
• Link HDMI interface light, always on when the transmitter has HDMI signal input
• USB receiver Link light, lights up when there is transmitter video input after the optical fiber is connected. Transmitter single layer, need to use USB straight cable to connect to computer or host end
• The receiver has 2 USB ports, which can be connected to a keyboard or mouse
• For safety reasons, non-professionals are not allowed to open the product casing:
• 2 When the product is powered on, pay attention to the dangers of strong electricity and safety protection:
• Please select the correct power adapter to power this device and confirm whether it meets the requirements of this device before use:
• Do not use the device in a humid environment to prevent water from entering the device through the casing, which may damage the device:
• Please turn on the power after the line connection is completed:
• When the product is powered on, please do not plug or unplug the connection cable unless there are special circumstances:
• Do not use the device in dusty and electromagnetic radiation-prone places, or in high-temperature and poorly ventilated places:
• Please do not place heavy objects on the device to avoid accidents:
• It is recommended to use the device indoors, and a waterproof box is recommended for outdoor use.
• 4K (10G) HDMI high-definition optical transceiver x 1 pair

Specifications

• 4K (10G) HDMI High Definition Optical Transceiver
• Support protocol: HDMI1.4a
• 4K2K@60Hz(4:2:0)
• 4K2K@30Hz
• 1080P@120Hz
• 1080P 3D@60Hz
• Single mode transmission: 0-10KM Multimode transmission: 300m~500m
• Optical module: 10G (10G) optical module
• SFP optical module: support hot plug

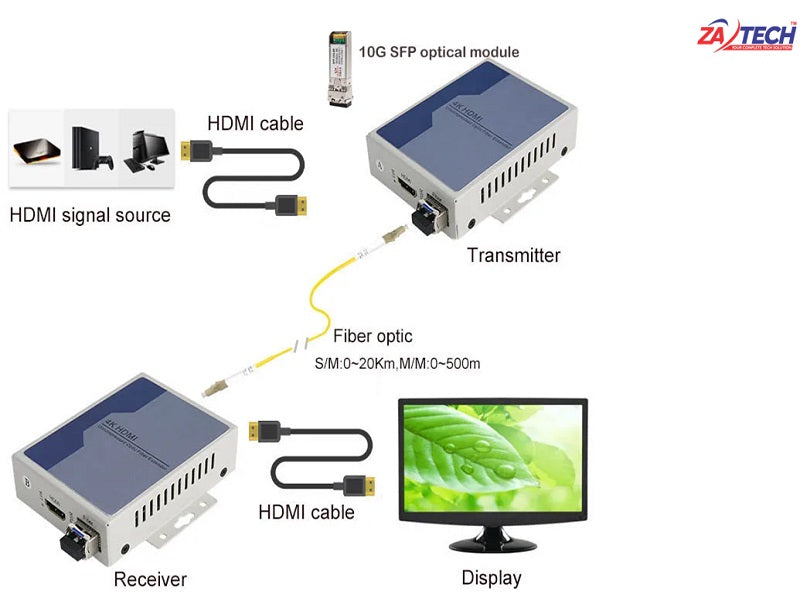

• 1: Link diagram
• 4K player
• 20 kilometers of optical fiber
• Power supply type: External power supply
• Power input voltage: AC100V~240V 50/60Hz
• Machine power connector: DC socket
• Machine working voltage: 5V
• Machine power consumption: 10%
• Storage temperature: -40~70℃
• Working temperature: -10~55℃
• Working humidity: 5%~90% without condensation
• Dimensions: 95`d770`d725mm
• Weight: 0.5kg (body)
• Body color: Metal, Milky white
• Supported resolution up to 4K2K@60Hz (4:2:0), 4K2K@30Hz,
• 1080P@120Hz, and 1080P 3D@60Hz.
• Support HDMI1.4a.
• Interface definition and indicator status
• Finie SFP fiber interface, 10G bandwidth
• Package Contents User Manual x1
• 5V2A power supply x2
