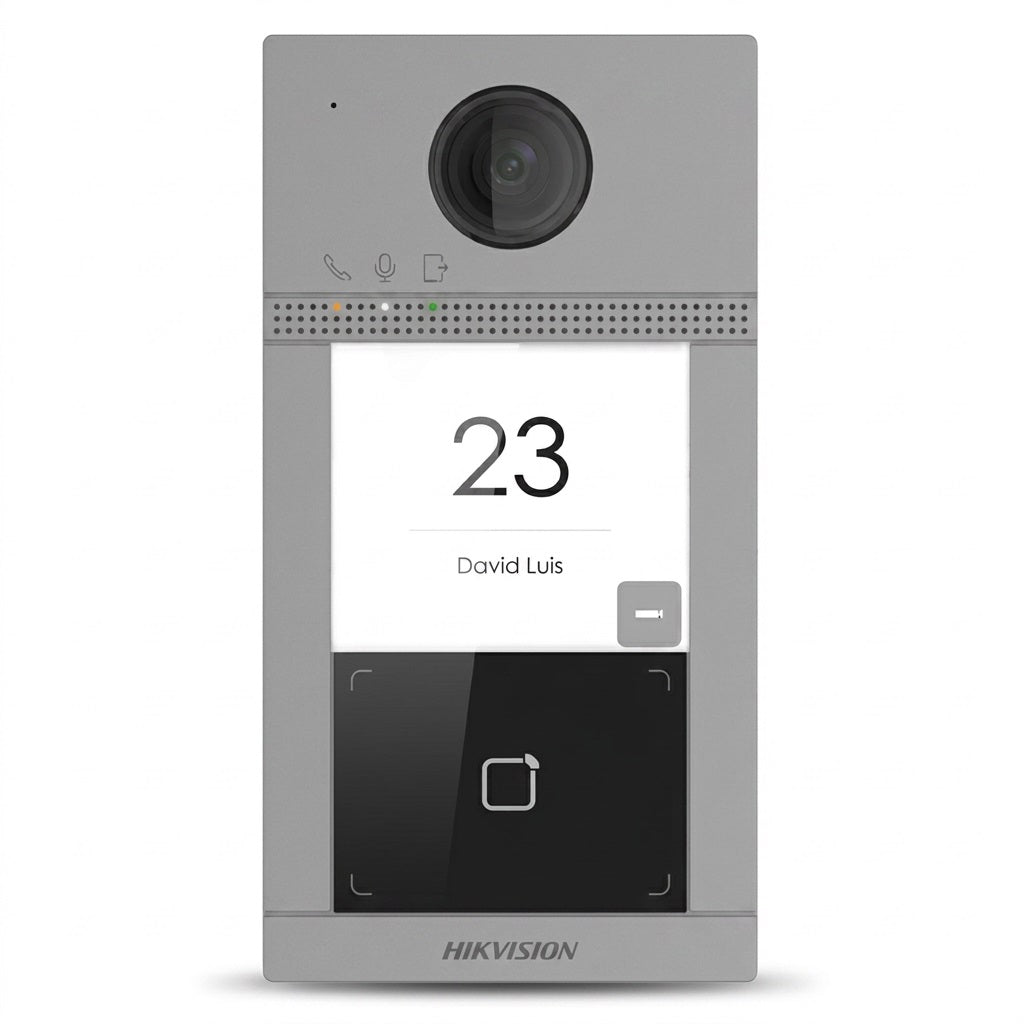

HIKVISION 1 Button Metal Villa Door

1 Button Metal Villa Door Station
2 MP camera with IR supplement
One nametag button calling design for easier calls
Built-in card reader module
Standard PoE power supply
IK08 & IP65 higher protection level with aluminum alloy material
Convenient Hik-Connect APP mobile control

System parameters
Operation system
Linux
ROM
32 MB
RAM
256 MB
Processor
Embeded high performance processor
Display parameters
Screen size
/
Operation method
/
Type
/
Resolution
/
Video parameters
Lens
1
Resolution
Main stream:1920 × 1080p and 1280 × 720p

Sub stream: 640 × 480p

FOV
Horizontal: 124° Vertical: 75°
Wide dynamic range (WDR)
Digital WDR/76.9 dB
Supplement light
IR light, up to 3 m
Video compression standard
H.264; H.265; MJPEG
Audio parameters
Audio input
1 built-in omnidirectional microphone
Audio compression standard
G.711 U`a1`a2G.711 A`a1`a2Opus`a1`a2AAC-LD`a1`a2AAC-LC`a1`a2G.726`a1`a2G.722.1
Audio output
1 built-in loudspeaker
Audio compression bitrate
64 Kbps
Audio quality
Noise suppression and echo cancellation
Volume adjustment
Adjustable
Capacity
User capacity
2000
Card capacity
10000
Linked indoor station capacity
1 (main indoor station)
Sub door station capacity
16
Network parameters
Network protocol
TCP/IP, RTSP, IPV6, ONVIF
Wi-Fi
IEEE802.11b, IEEE802.11g, IEEE802.11n
Bluetooth
/
3G/4G
/
Received frequency
2.4 to 2.4835 GHz
Transmitted frequency
2.4 to 2.4835 GHz
Bandwidth
20/40 MHz
Frequency power
802.11b:15 dBm +/- 1.5 dBm

802.11g:15 dBm +/- 1.5 dBm

802.11n(ht20):14 dBm +/- 1.5 dBm

802.11n(ht40):12 dBm +/- 1.5 dBm

Authentication
Card reading frequency
13.56 MHz
Device interfaces
Alarm input
4
Network interface
1 RJ-45, 10/100 Mbps self-adaptive
TAMPER
1
Exit button
2
RS-485
1
USB
/
Wiegand
/
TF card
Reserved
Alarm output
/
Lock control
2 relays, Max. 30 VDC 2 A
Door contact input
2
General
Button
1 physical button
Installation
Surface mounting
Indicator
3
Net weight: 0.370 kg

Gross weight: 0.637 kg

Protective level
IP65, IK08
Working temperature
-40 °C to 53 °C(-40 °F to 127.4 °F)
Working humidity
10% to 95% (no-condensing)
Dimension (W × H × D)
174 mm × 91 mm × 29 mm (6.9" × 3.6" × 1.1")
Battery
/
Application environment
Outdoor
Power consumption
`a3¼ 10 W
Language
English, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan), Latin American Spanish
