Hikvision 16CH ColorVu eDVR CCTV Kit with 1TB eSSD & Zatech RG59 Rolls

• Hikvision 16-Channel ColorVu eDVR CCTV Kit is a complete surveillance solution designed for powerful, efficient, and reliable security. It includes 16 x 2MP Smart Hybrid ColorVu cameras that deliver clear 1080p full-color video day and night, equipped with an F1.0 aperture and Smart Hybrid Light technology offering flexible white light and IR illumination up to 20 meters. Each camera features built-in audio via coaxial cable, 3D DNR noise reduction, and a durable IP67 weatherproof housing, making it suitable for indoor and outdoor use.
• The advanced 16CH Hikvision eDVR comes with a built-in 1TB eSSD drive, providing faster, more durable, and energy-efficient storage compared to traditional HDDs, scene-adaptive bitrate control, and H.265 compression for maximum efficiency. To ensure easy installation and stable performance, the kit includes 2 x 100m ZATECH RG59 cable rolls, a ZATECH power supply, along with BNC and DC connectors. This all-in-one package is ideal for homes, offices, or large properties that demand 24/7 professional-grade color surveillance.

Camera

• Image Sensor2 MP CMOS
• Max. Resolution1920 (H) × 1080 (V)
• Min. Illumination0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter TimePAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
• Day & NightICR
• Angle AdjustmentPan: 0 to 360 ,Tilt: 0 to 90 ,Rotate: 0 to 360
• Signal SystemPAL/NTSC
• Lens
• Lens Type2.8 mm and 3.6 mm fixed focal lens
• Focal Length & FOV2.8 mm, horizontal FOV: 105 , vertical FOV: 56 , diagonal FOV: 126 3.6 mm, horizontal FOV: 84 , vertical FOV: 46 , diagonal FOV: 98
• Lens MountM12
• Microphone
• Pickup DistanceIn a radius of up to 5 m
• Amount1
• Illuminator
• Supplement Light TypeIR,White Light
• Supplement Light RangeIR: Up to 20 m,White Light: Up to 20 m
• Image
• Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
• Image SettingsBrightness, Sharpness, Anti-banding, AGC
• Frame RateTVI: 1080p @25 fps/30 fpsCVI: 1080p @25 fps/30 fpsAHD: 1080p @25 fps/30 fpsCVBS: PAL/NTSC
• Day/Night ModeAuto/Color
• Wide Dynamic Range (WDR)Digital WDR
• Noise Reduction3D DNR/2D DNR
• Image EnhancementDWDR,BLC,HLC,Global
• White BalanceAuto, Manual
• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS

eDVR

• Motion Detection 2.0
• Human/Vehicle AnalysisDeep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;Quick search by object or event type is supported
• Video and Audio
• IP Video Input2-chUp to 5 MP resolutionSupport H.265+/H.265 IP cameras
• Analog Video Input16-chBNC interface (1.0 Vp-p, 75 ), supporting coaxitron connection
• HDTVI Input1080p25, 1080p30, 720p25, 720p30
• AHD Input1080p25, 1080p30, 720p25, 720p30
• HDCVI Input1080p25, 1080p30, 720p25, 720p30
• CVBS InputSupport
• HDMI Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• Video Output ModeHDMI/VGA simultaneous output
• Audio Input16-ch via coaxial cable
• Audio Output1-ch via HDMI
• Synchronous Playback16-ch
• Recording
• Video CompressionH.265 Pro/H.265
• Encoding Resolution1080p Lite/720p/720p Lite/WD1/4CIF/CIF/QVGA
• Frame RateMain stream:1080p Lite/720p/WD1/4CIF@25 fps (P)/30 fps (N)Note:1080p Lite/720p is 15 fps by defaultSub-stream:For 1080p and 720p stream access: CIF/QVGA@15 fps
• Video BitrateAccording to the actual scene, scene-adaptive bitrate control technology would automatically allocates appropriate bitrate to ensure the stability of recording period.
• Stream TypeVideo, Video & AudioNote: In order to protect privacy, the device will only record video (without audio) by default. If you want to record audio, you shall manually enable audio recording. For operation details, refer to the user manual.
• Audio CompressionG.711u
• Audio Bitrate64 Kbps
• Network
• Total Bandwidth96 MbpsIncoming bandwidth: 8 Mbps
• Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP , HTTPS
• Remote Connection128
• Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
• Auxiliary Interface
• CapacityBuilt-in 1024 GB eSSD (960 GB available)Note:The device can store about 2 weeks videos for 16-ch analog cameras (default parameters), this estimation is for reference only.
• Alarm In/OutN/A
• USB InterfaceRear panel: 2 × USB 2.0

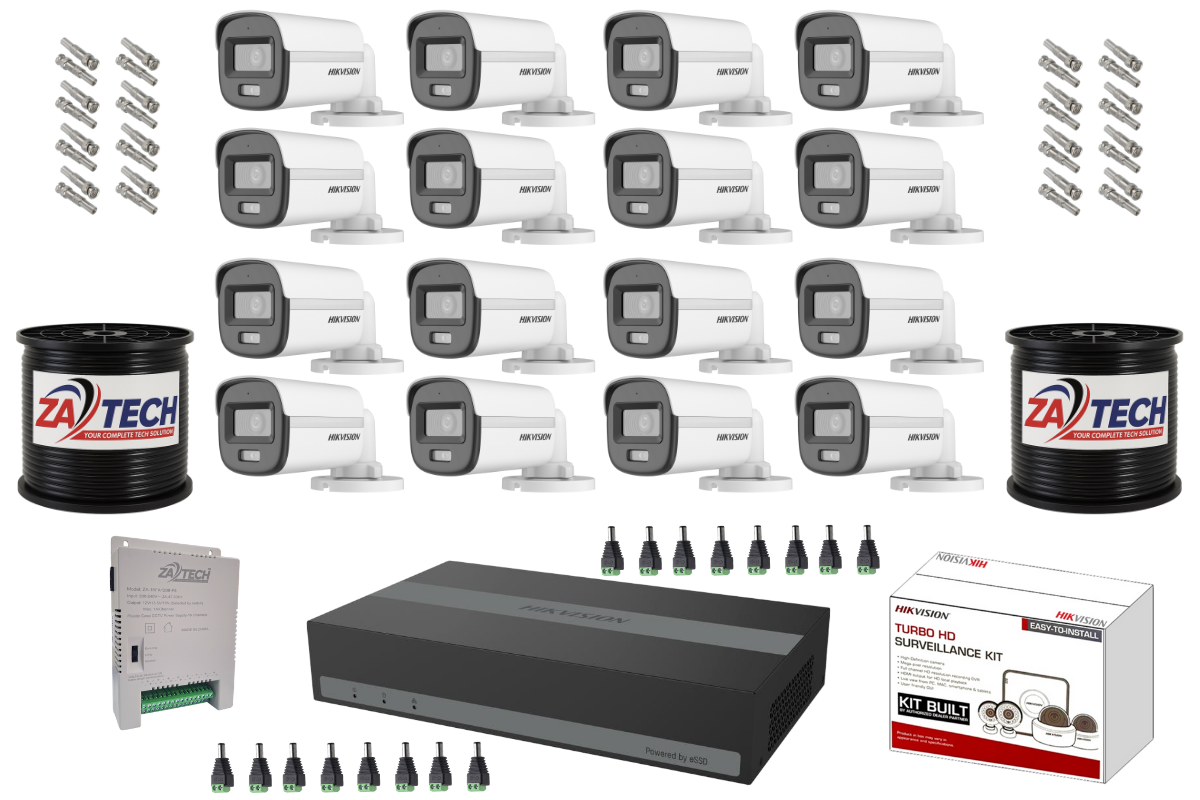

What's in the box

• 16 x Camera
• 1 x eDVR
• 2 x Zatech 100m RG59 Rolls
• 1 x Zatech 16ch power supply
• 16 x connector
• 32 x BNC connectors
