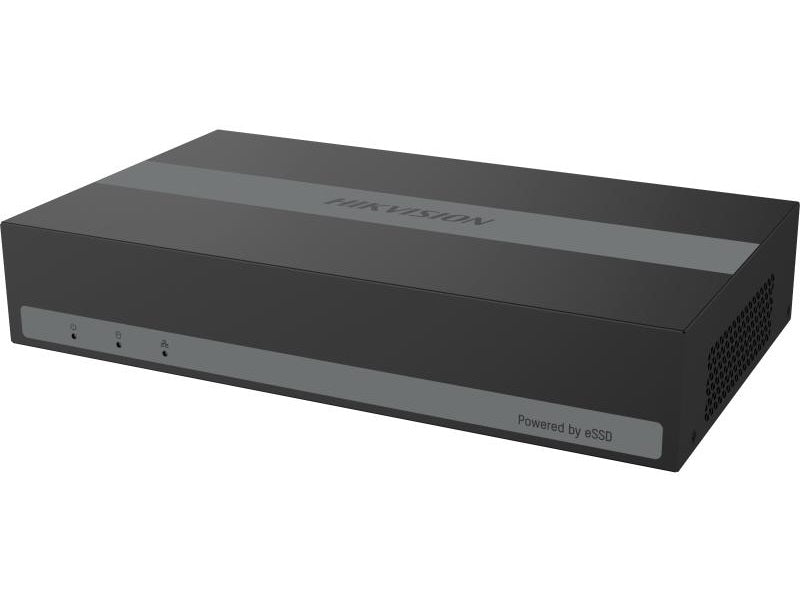

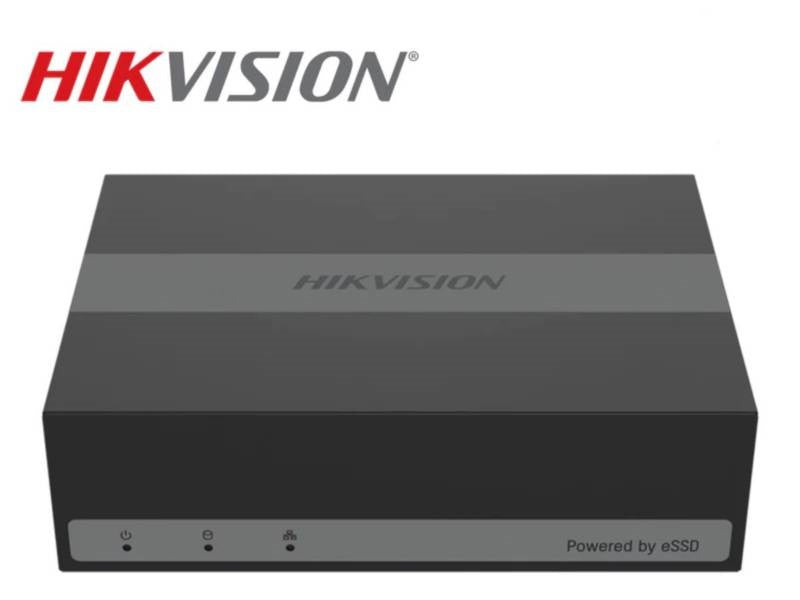

Hikvision 16Ch E-Dvr Built In 1Tb Ssd

Enhance your surveillance system with the HIKVISION DS-E16HGHI-B DVR, powered by cutting-edge eSSD technology for enhanced performance and reliability. This 16-channel DVR features deep learning-based motion detection, scene-adaptive bitrate control, and low power consumption, making it an ideal solution for efficient and intelligent video recording. eSSD Technology: Ensures superior performance and reliability.

Key features

• HIKVISION DS-E16HGHI-B 16-ch 1080pLite 1U H.265 eSSD DVR
• Deep Learning Motion Detection 2.0: Classifies human and vehicle targets, significantly reducing false alarms from non-relevant objects.
• Scene-Adaptive Bitrate Control: Optimizes video compression for stable recording.
• Low Power Consumption: Energy-efficient operation.
• 1080p Lite Encoding: Up to 15 fps for clear and detailed video.
• Human/Vehicle Analysis: Utilizes deep learning for accurate target classification and reduced false alarms.
• Quick Search: Supports searching by object or event type for faster retrieval.
• IP Video Input: 2 channels, up to 5 MP resolution, supports H.265+/H.265 IP cameras.
• Analog Video Input: 16 channels, BNC interface, supports coaxitron connection.
• HDMI Output: 1 channel, up to 1920 `d7 1080/60 Hz
• VGA Output: 1 channel, up to 1920 `d7 1080/60 Hz
• Audio Input/Output: 16 channels via coaxial cable, 1 channel via HDMI
• Recording
• Sub-Stream: For 1080p and 720p stream access: CIF/QVGA@15 fps
• Network Protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP™, HTTPS
• Network Interface: 1 RJ45 10/100 Mbps self-adaptive Ethernet interface
• Built-in Storage: 1024 GB eSSD (960 GB available), stores approximately 2 weeks of video for 16-ch analog cameras (default settings).
• Operating Temperature: -10 `b0C to 45 `b0C (14 `b0F to 113 `b0F)
• Dimensions (W `d7 D `d7 H): 235 `d7 146.6 `d7 46.6 mm (9.25 `d7 5.77 `d7 1.83 inch)

Specifications

• Ds-e16hghi-b
• Motion Detection 2.0
• HDTVI: 1080p25, 1080p30, 720p25, 720p30
• AHD: 1080p25, 1080p30, 720p25, 720p30
• HDCVI: 1080p25, 1080p30, 720p25, 720p30
• CVBS: Supported
• Video Compression: H.265 Pro/H.265
• Encoding Resolution: 1080p Lite/720p/720p Lite/WD1/4CIF/CIF/QVGA
• Main Stream: 1080p Lite/720p/WD1/4CIF@25 fps (P)/30 fps (N)
• Audio Compression: G.711u
• Audio Bitrate: 64 Kbps
• Total Bandwidth: 96 Mbps
• Remote Connections: Up to 128
• USB Interface: 2 `d7 USB 2.0 (rear panel)
• Alarm In/Out: Not available
• Power Supply: 12 VDC, 1 A
• Power Consumption: ≤ 9.5 W (with eSSD)
• Operating Humidity: 10% to 90%
• Weight: ≤ 0.5 kg (with eSSD, 1.1 lb.)
