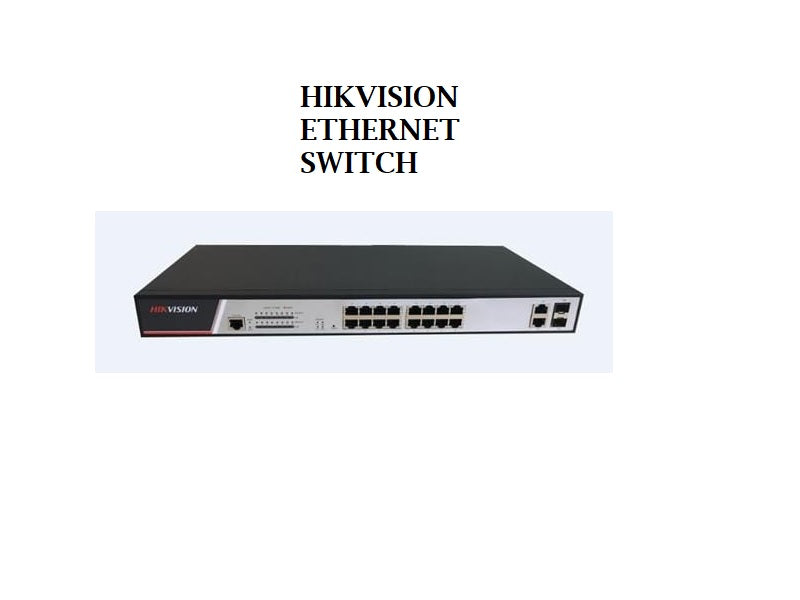

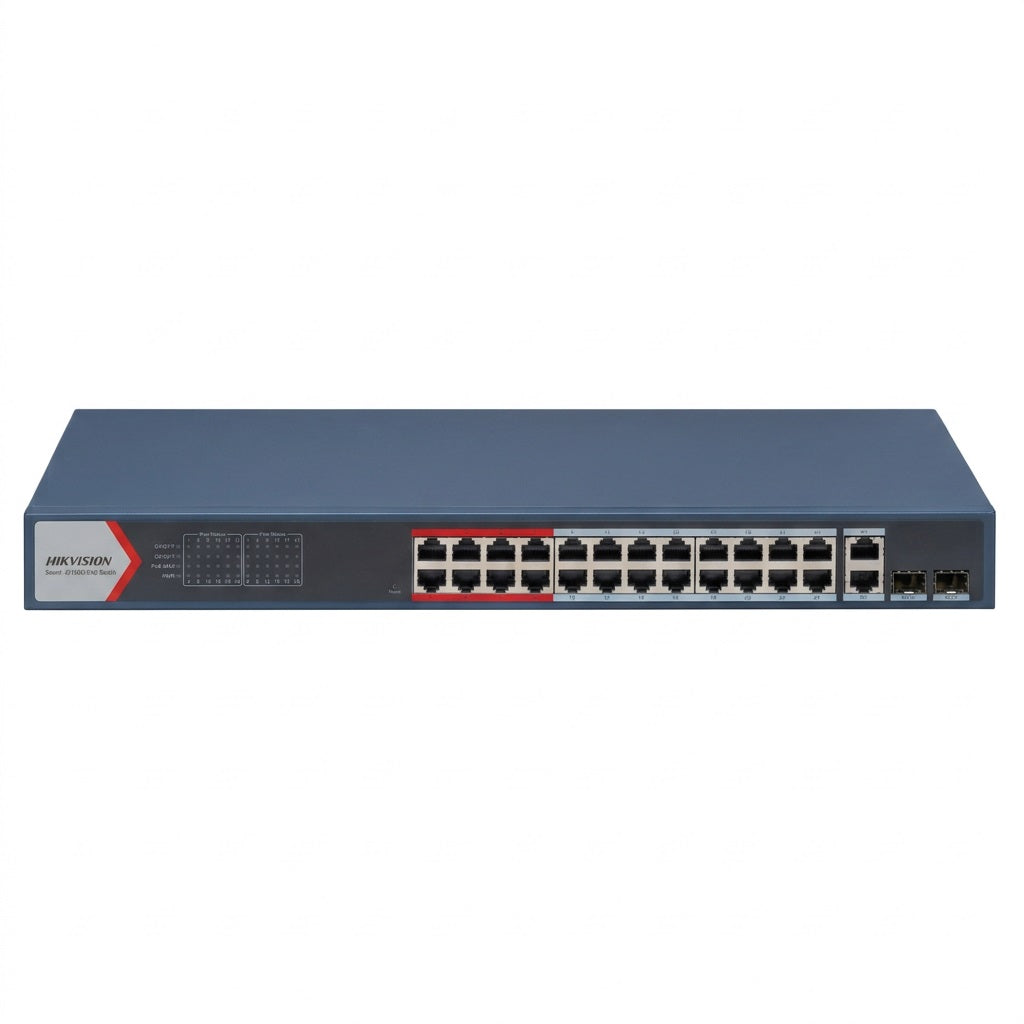

Hikvision 24Port 2Port Gigabi Poe Switch

The Hikvision 24-Port Fast Ethernet Smart PoE Switch is a reliable network solution designed for CCTV surveillance systems, IP cameras and business networks. Featuring 24 × 10/100 Mbps PoE ports and 2 Gigabit combo ports, it provides convenient connectivity and power delivery for multiple network devices through a single Ethernet cable.

With a powerful 370W PoE budget, support for IEEE 802.3af/at standards and up to 300 metres of long-range PoE transmission, this switch is ideal for larger surveillance installations where extended camera coverage is required.

Smart management features such as PoE Watchdog, VLAN, loop prevention, cable detection and remote management via Hik-Partner Pro help simplify installation, troubleshooting and ongoing network maintenance.

Key Features

24 PoE Ports: 24 × 10/100 Mbps Fast Ethernet ports for connecting and powering IP cameras and other compatible PoE devices.

2 Gigabit Combo Ports: Additional uplink connectivity for connecting to a router, NVR or network backbone.

370W PoE Power Budget: Supports multiple PoE devices across the network.

IEEE 802.3af/at Support: Compatible with standard PoE and PoE+ devices.

Up to 300m Long-Range PoE: Extends transmission distance on ports 1–24, depending on the camera model and cable condition.

PoE Watchdog: Automatically detects unresponsive cameras and restarts them to help restore connectivity.

VLAN Support: IEEE 802.1Q VLAN configuration helps segment network traffic and improve network management.

STP/RSTP Loop Prevention: Helps prevent network loops and communication disruptions.

Cable Detection: Detects cable faults, including open circuits and short circuits, and estimates cable length.

6kV Surge Protection: Helps protect the switch against electrical surges.

VIP Ports: Ports 1–8 receive preferential data forwarding when bandwidth resources are insufficient.

Port Isolation: Helps improve network security by restricting communication between isolated ports.

Remote Management: Manage ports, monitor PoE usage, view topology and restart devices through Hik-Partner Pro.

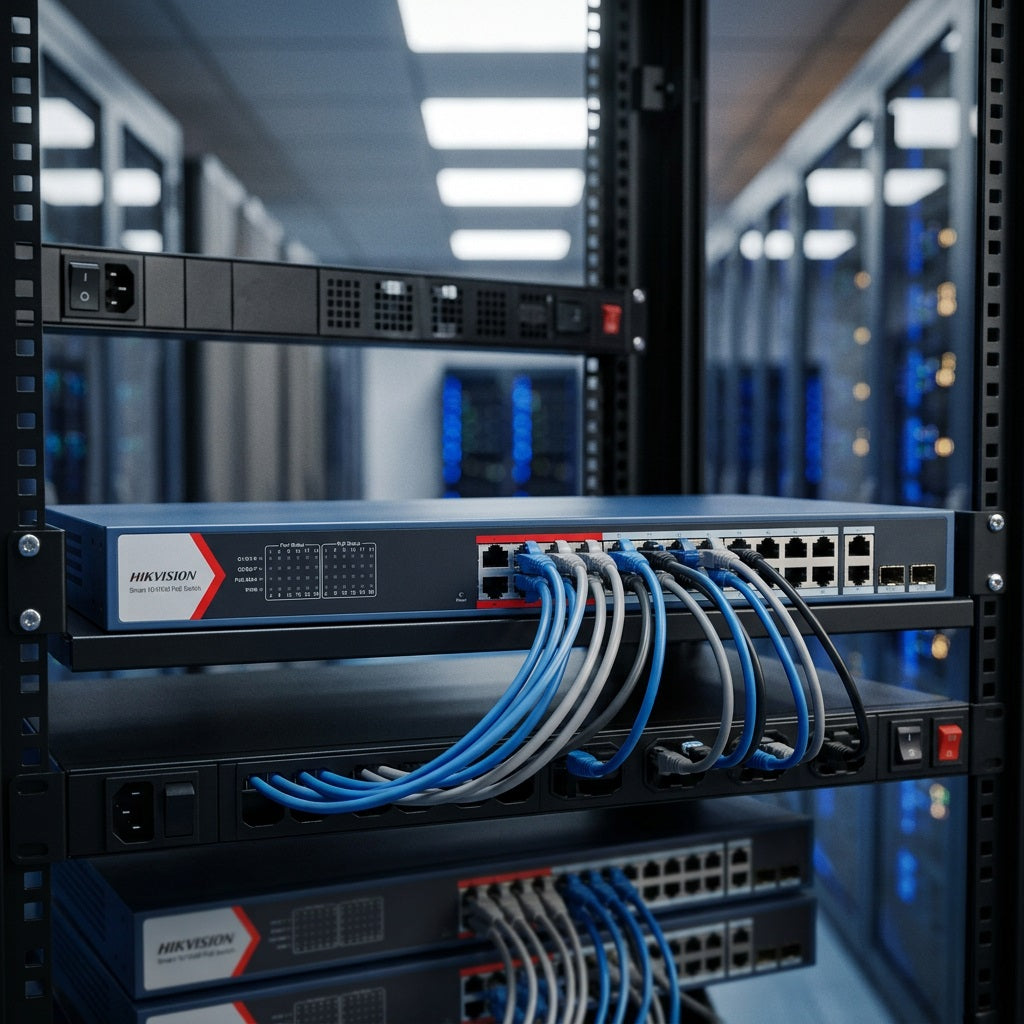

Rack-Mount Design: Metal housing with mounting ears for convenient installation in a compatible rack.

Technical Specifications

Specification

Details

Brand

Hikvision

Product Type

Smart PoE Network Switch

Network Ports

24 × 10/100 Mbps PoE

Uplink Ports

2 × Gigabit combo

Switching Capacity

14.8 Gbps (whole-device performance)

Port Switching Performance

8.8 Gbps

Packet Forwarding Rate

11.01 Mpps (whole-device performance)

Port Packet Forwarding Rate

6.55 Mpps

MAC Address Table

16K

Internal Cache

4 Mbits

PoE Standards

IEEE 802.3af / IEEE 802.3at

PoE Ports

Ports 1–24

Maximum PoE Power per Port

30W

Total PoE Power Budget

370W

Long-Range PoE

Up to 300m

VLAN

IEEE 802.1Q, up to 4094 VLANs

Loop Prevention

IEEE 802.1D STP, IEEE 802.1w RSTP

Link Aggregation

Static, 1 aggregation group

QoS

Port priority, SP/WRR scheduling, DSCP-based policy

Port Isolation

Ports 1–26

DHCP Snooping

Supported

Cable Detection

Supported

Port Mirroring

Supported

LLDP

IEEE 802.1ab

Remote Management

Web interface, Hik-Partner Pro, Hik-Central Pro

Surge Protection

6kV

Housing Material

Metal

Installation

Rack-mount

Power Supply

100–240V AC, 50/60Hz, max. 6.3A

Maximum Power Consumption

400W

Idle Power Consumption

30W

Dimensions (W × H × D)

440 × 44 × 220.8mm

Net Weight

2.83kg

Gross Weight

3.8kg

Operating Temperature

0°C to 45°C

Storage Temperature

-40°C to 85°C

Operating Humidity

5%–95%, non-condensing

Relative Humidity

5%–95%, non-condensing

Ideal Applications

IP CCTV camera installations

Commercial and office surveillance networks

Retail stores, warehouses and business premises

Network installations requiring PoE-powered devices

Surveillance systems requiring remote monitoring and troubleshooting

What`s in the Box?

1 × Hikvision 24-Port Smart PoE Switch

Rack-mounting ears and associated mounting accessories, as supplied

Power cable and documentation, subject to the manufacturer`s package contents
