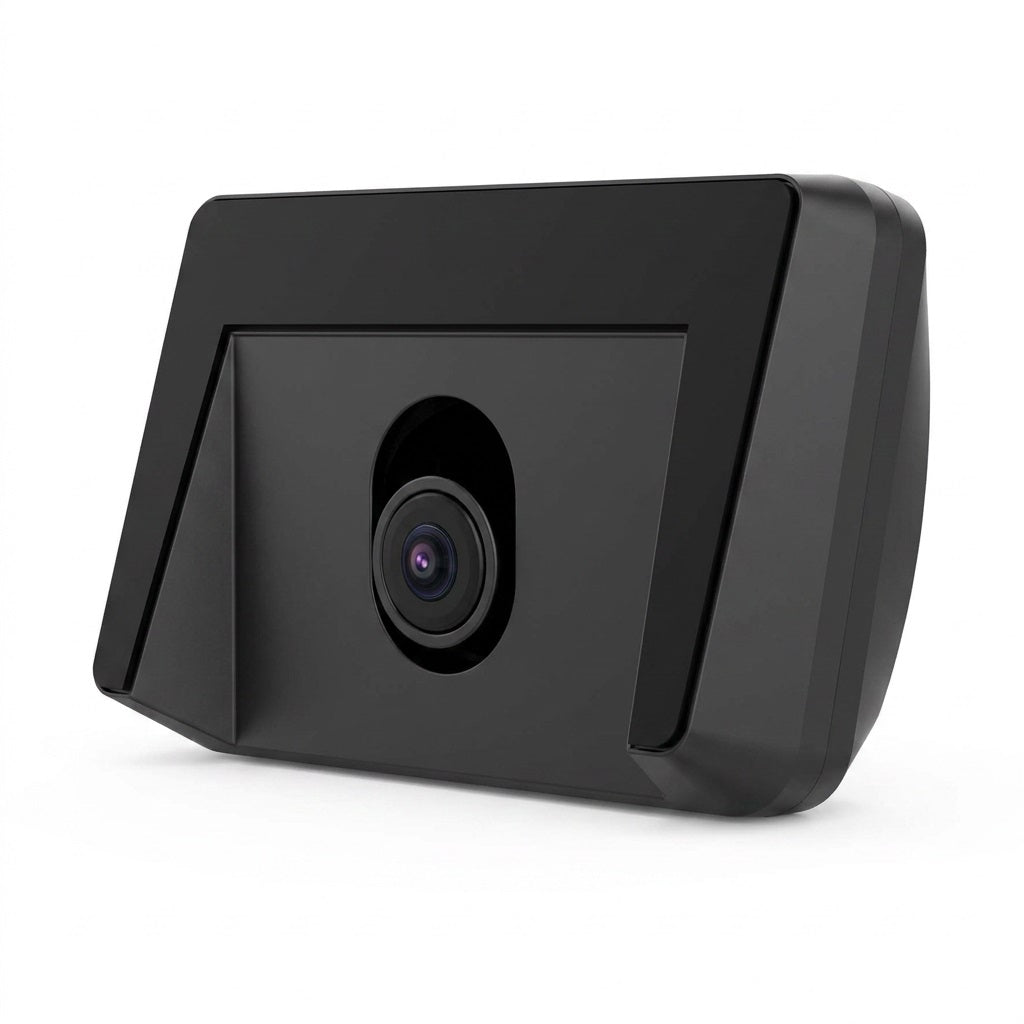

HIKVISION 2Mp Mobile Color Camera 2.1Mm

AE-VC259T
Adopts progressive scan CMOS to prevent motion image aliasing
Supports HD coaxial output with the resolution 1080P
Min. illumination: 0.1 Lux @(F1.2, AGC ON)
Supports auto electronic shutter to adapt to different environment
Supports auto electronic gain and self-adaption to light
Adopts shock-proof design and aviation output plug

Camera
Image Sensor
Progressive Scan CMOS
Min. Illumination
0.1 Lux@(F1.2, AGC ON)
Shutter Speed
1/25 s to 1/30,000 s
Day & Night
Color
Lens
Lens Type
Fixed focal lens, 2.1mm
Focal Length & FOV
2.1 mm, horizontal: 127°, vertical: 73°, diagonal: 144°
Lens Mount
M12
Video
Frame Rate
1080P@25 fps
Wide Dynamic Range (WDR)
96 dB
SNR
42 dB
Interface
Video Output
1 Vpp Composite Output (aviation plug)
Interface Type
1: video, 2: empty, 3: power, 4: ground
General
Product Dimension
89.3 mm × 63.2 mm ×34.9 mm (3.5"×2.5" ×1.4" )
Power Supply
9 to 16 V DC
Power Consumption
Max. 1 W
Startup and Operating Conditions
-40 °C to 75 °C (-40 °F to 167 °F), 90%
Approx. 91 g
