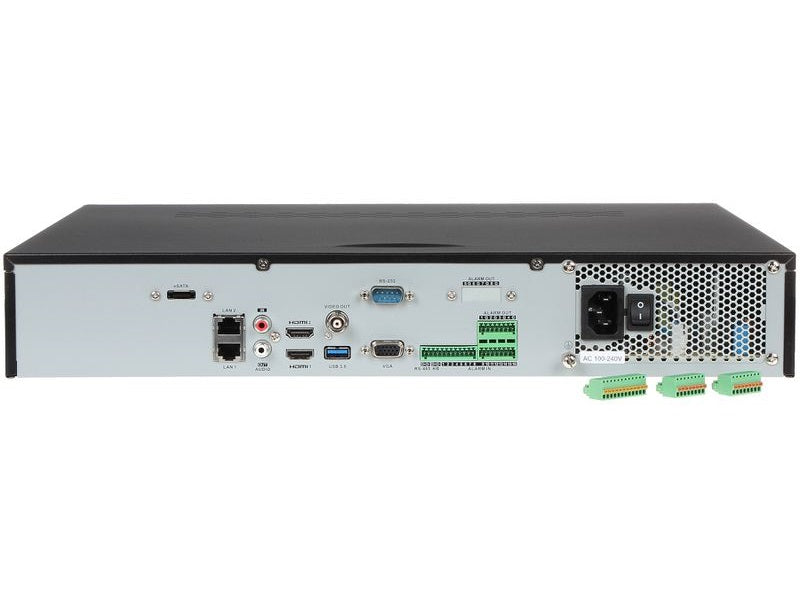

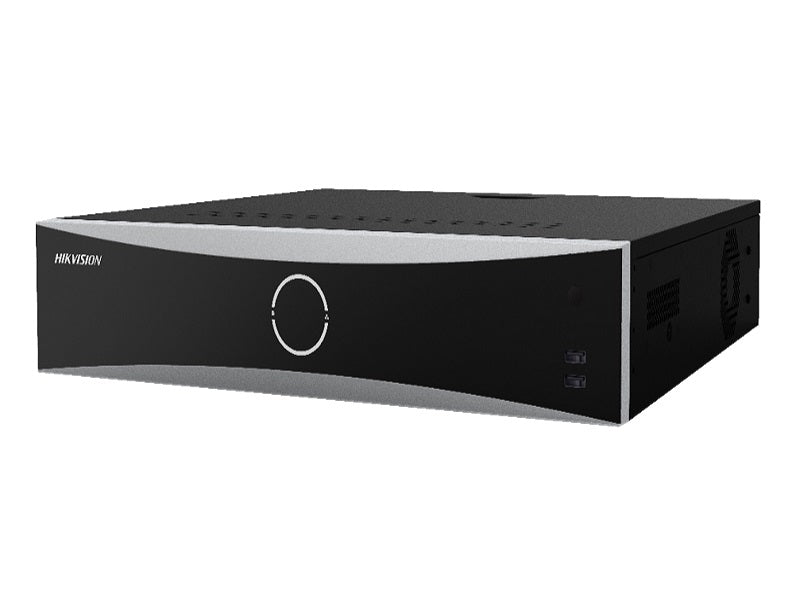

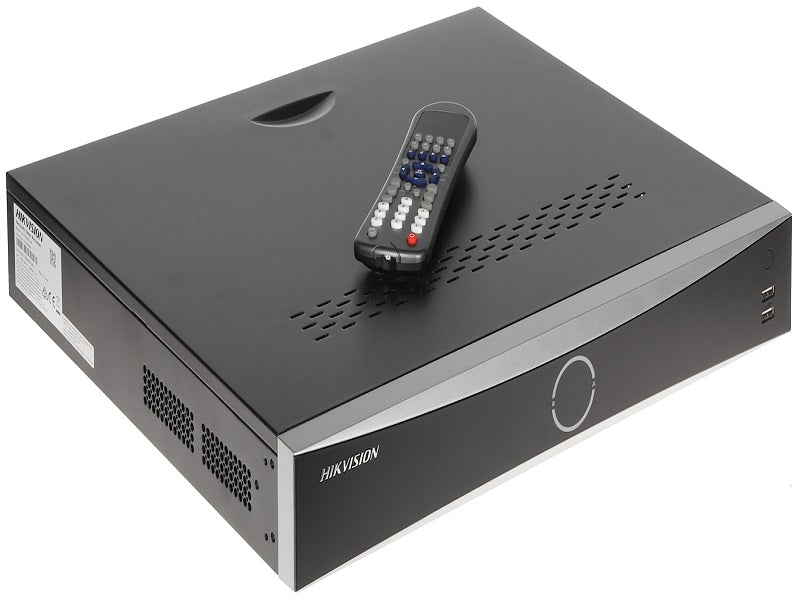

HIKVISION 32Ch 4K Acusense Nvr 4 Sata

Up to 16 face picture libraries, with up to 10,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 150 MB). 1-ch human face capture (HD network camera, up to 4 MP, H.264/H.265).

Key features

• Intelligent analytics based on deep learning algorithm
• Up to 4-ch facial recognition for video stream
• Up to 8-ch facial recognition for face picture
• Up to 8-ch IP speakers can be connected
• Intelligent Analytics
• AI by Device
• Engine
• Facial Recognition
• Facial Detection and Analytics
• Face picture comparison, human face capture, face picture search
• Face Attributes
• Face Picture Library
• Face Picture Comparison (Captured from Camera)
• Facial Detection and Analytics Performance
• By Device
• Perimeter Protection
• Up to 4-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm;
• Anpr
• Vehicle Attributes
• Plate Attributes
• : 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.
• Incoming Bandwidth
• Outgoing Bandwidth
• 4K (3840 `d7 2160)/60Hz, 4K (3840 `d7 2160)/30Hz, 2K (2560 `d7 1440)/60Hz, 1920 `d7 1080/60Hz, HDMI1/VGA simultaneous output
• 1-ch, BNC (1.0 Vp-p, 75 `d9), resolution: PAL: 704 `d7 576, NTSC: 704 `d7 480
• Decoding
• Decoding Format
• Recording Resolution
• 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 mp/1080p/uxga/720p/vga /4cif/dcif/2cif/cif/qcif
• Synchronous Playback
• Live View Window Division
• Aux Port Window Division
• Decoding Capability
• Dual-Stream Recording
• Support
• Stream Type
• Remote Connection
• Tcp/ip, dhcp, ipv4, ipv6, DNS, ddns, NTP, rtsp, sadp, smtp, snmp, NFS, iscsi, isup, upnp™, http, https, onvif(version 2.2), otap
• API
• Compatible Browser
• Sata
• Up to 10 TB capacity for each disk
• eSATA
• Alarm In/Out
• Front panel: 2 `d7 USB 2.0; Rear panel: 1 `d7 USB 3.0
• GUI Language
• 100 to 240 VAC, 50 to 60 Hz
• Consumption
• Working Temperature
• 10 `b0C to 55 `b0C (14 `b0F to 131 `b0F)
• Working Humidity
• Chassis
• 445 `d7 400 `d775 mm ( 17.5"`d7 15.7" `d7 3.0")
• CE
• EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4

Specifications

• Ds-7732nxi-i4/s
• H.265+/H.265/H.264+/H.264 video formats
• Up to 4-ch perimeter protection
• Up to 32-ch IP camera inputs
• Up to 32-ch 1080p decoding capability
• 4-ch face picture comparison alarm
• Motion Detection 2.0
• 16-ch
• Up to 12 rules in total
• Up to 12 MP resolution
• 160 Mbps
• 256 Mbps
• HDMI 1 Output
• HDMI 2 Output
• 1920 `d7 1080/60Hz,HDMI2/VGA independent output
• 1-ch, 1920 `d7 1080/60Hz,
• HDMI1/VGA simultaneous output
• 1-ch, RCA (Linear, 1 K'd9)
• 1-ch, RCA (2.0 Vp-p, 1 K'd9)
• H.265+/h.265/h.264+/h.264/mpeg4
• 1/2/4/6/8/9/16
• 16-ch @ 1080p (30 fps)
• G.711ulaw/G.711alaw/G.722/G.726/MP2L2
• 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• 128
• ONVIF(Version 2.5), RTSP
• RS-485 (half-duplex), RS-232, Keyboard
• 4 SATA interfaces supporting hot-plug
• Capacity
• 1 eSATA interface
• 16/4
• Ctrl 12V
• DC 12V
• ≤ 30 W (without HDD)
• 10% to 90%
• 19-inch rack-mounted 1.5U chassis
• Dimension (W `d7 D `d7 H)
• ≤ 5.6 kg (12.3 lb)
