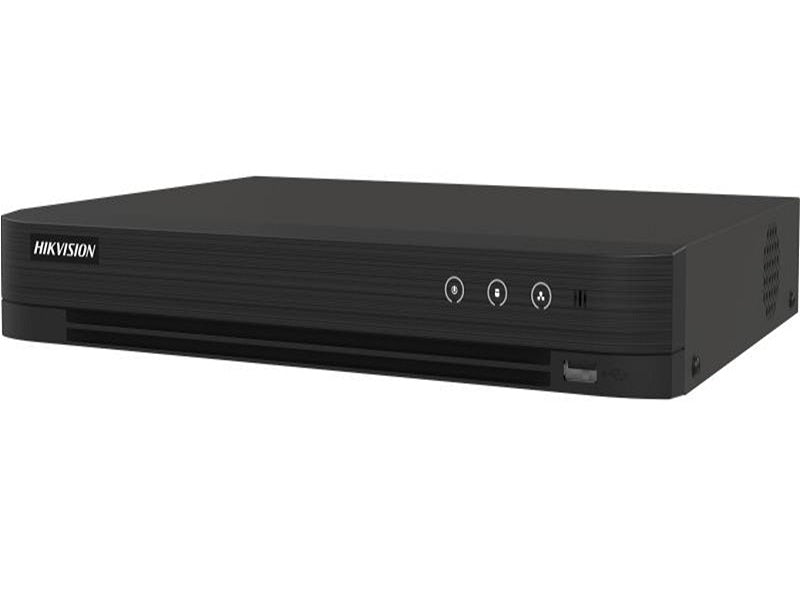

Hikvision iDS-7204HQHI-M1/S 4-Channel 1080p AcuSense DVR - H.265 Pro+, Single HDD

False alarm reduction through human and vehicle target classification based on deep learning. Up to 6 network cameras can be connected.

Key features

• 4 channels and 1 HDD 1U AcuSense DVR
• Encoding ability up to 1080p @ 15 fps
• Recording
• Encoding Resolution
• 4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
• 4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
• Dual-Stream
• Support
• Stream Type
• 2-ch (up to 6-ch), each up to 4 Mbps
• 4-ch;BNC interface (1.0 Vp-p, 75 `d9), supporting coaxitron connection
• 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,
• Pal/ntsc
• Synchronous Playback
• 4 MP, 3 MP, 1080p30, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps
• : The 3 MP signal input is only available for channel 1 of iDS-7204HQHI-M1/S, for channel 1/2 of iDS-7208HQHI-M1/S, and for channel 1/2/3/4 of iDS-7216HQHI-M1/S.
• 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
• 1-ch, RCA (2.0 Vp-p, 1 K'd9),4-ch via coaxial cable
• 1-ch, RCA (2.0 Vp-p, 1 K'd9) (using the first audio input)
• TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Remote Connection
• Sata
• Up to 10 TB capacity for each disk
• Alarm In/Out
• N/A
• Consumption
• Working Temperature
• 10 °C to +55 °C (+14 °F to +131 °F)
• Working Humidity
• 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)

Specifications

• Ids-7204hqhi-m1/s
• 4-ch 1080p 1U H.265 AcuSense DVR
• Efficient H.265 pro+ compression technology
• 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
• H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps
• 1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
• For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
• WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)
• 32 Kbps to 6 Mbps
• G.711u
• 64 Kbps
• 1-ch (up to 5-ch)
• Up to 6 MP resolution
• Support H.265+/H.265/H.264+/H.264 IP cameras
• 1024 × 768/60Hz, HDMI/VGA simultaneous output
• 1-ch, BNC (1.0 Vp-p, 75 `d9),
• resolution: PAL: 704 × 576, NTSC: 704 × 480
• 4-ch
• 1-ch, RCA (Linear, 1 K'd9)
• 32
• 1, RJ45 10M/100M self-adaptive Ethernet interface
• 1 SATA interface
• Capacity
• RS-485 (half-duplex)
• 2 × USB 2.0
• 12 VDC, 1.5A
• ≤ 18 W
• 10% to 90%
• Dimension (W × D × H)
• ≤ 1.16 kg (2.6 lb)
