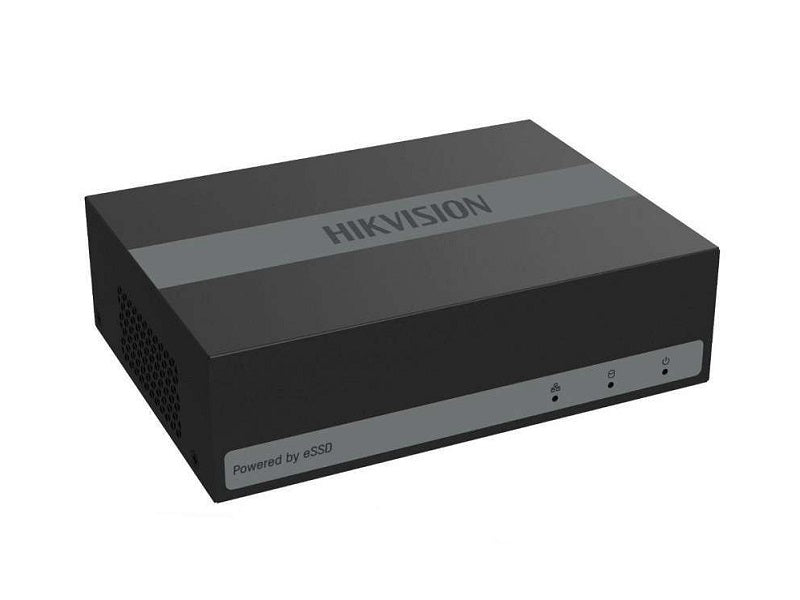

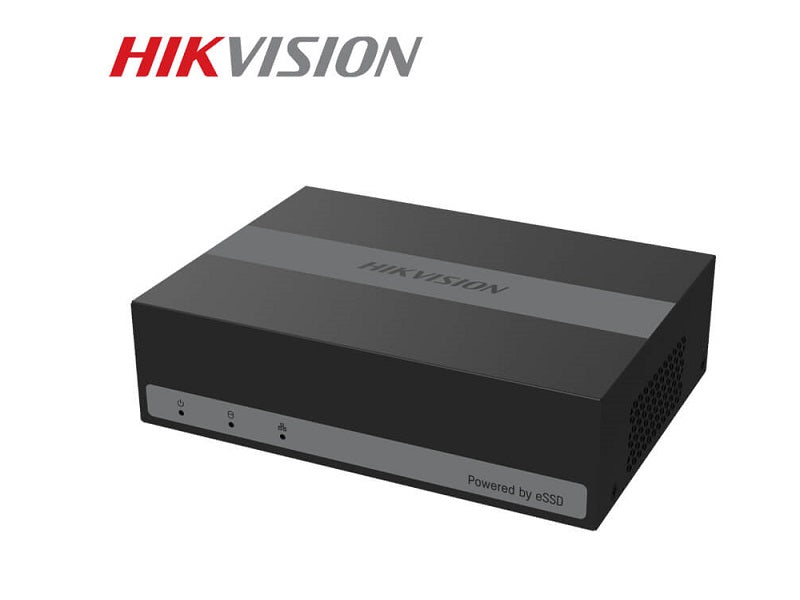

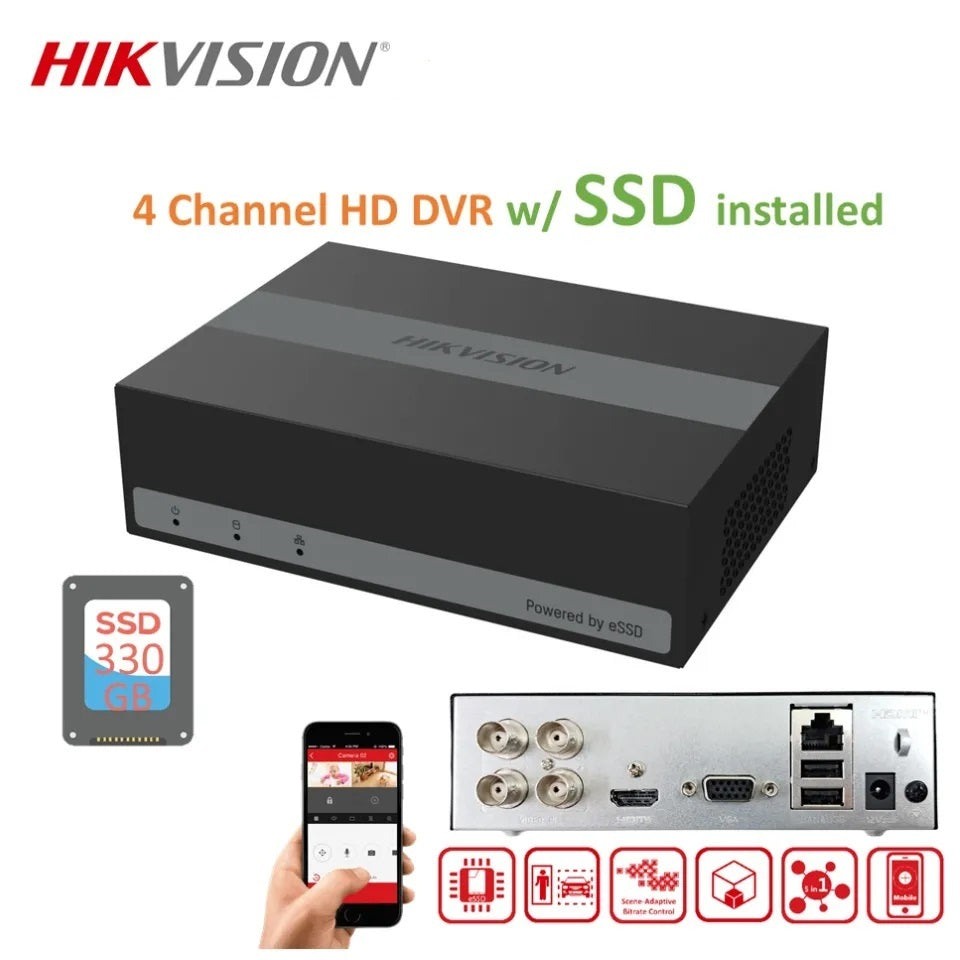

Hikvision DS-E04HQHI-B 4-Channel eDVR - 4MP/5MP, Built-In 512GB SSD, H.265+, AcuSense

Deep learning based human and vehicle targets classification of Motion Detection 2.0. Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;.

Key features

• Powered by eSSD technology
• Deep learning-based perimeter protection
• Scene-adaptive bitrate control video compression
• Low power consumption
• Human/Vehicle Analysis
• Quick search by object or event type is supported;
• Recording
• Encoding Resolution
• Frame Rate
• 4 MP Lite@15 fps; 1080p Lite/720p/WD1/4CIF@25 fps (P)/30 fps (N)
• 4 MP Lite@15 fps; 1080p Lite/720p Lite/WD1/4CIF@25 fps (P)/30 fps (N)
• According to the actual scene, scene-adaptive bitrate control technology would automatically allocates appropriate bitrate to ensure the stability of recording period.
• Stream Type
• Note: In order to protect privacy, the device will only record video (without audio) by default. If you want to record audio, you shall manually enable audio recording. For operation details, refer to the user manual.
• BNC interface (1.0 Vp-p, 75 `d9), supporting coaxitron connection
• 5 MP@20 fps, 3K@20 fps, 4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps
• 4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
• Support
• 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• Synchronous Playback
• Total Bandwidth
• Remote Connection
• TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP™, HTTPS
• The device can store about 2 weeks videos for 4-ch analog cameras (default parameters), this estimation is for reference only
• Alarm In/Out
• N/A
• Consumption
• Working Temperature
• 10 °C to 45 °C (14 °F to 113 °F)
• Working Humidity
• 151 × 121 × 46 mm (5.94 × 4.76 × 1.81 inch)

Specifications

• 4-ch 4MP Lite 1U H.265 eSSD DVR
• Up to 3K/5MP Lite@12 fps encoding capability
• Motion Detection 2.0
• H.265 Pro/H.265
• 4MP Lite/1080p/1080p Lite720p/WD1/4CIF/CIF
• 1080p/720p@15 fps; WD1/4CIF@25 fps (P)/30 fps (N)
• For 720p stream access: 720p/WD1/4CIF@25 fps (P)/30 fps (N)
• WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)
• G.711u
• 64 Kbps
• 1-ch
• Up to 6 MP resolution
• Support H.265+/H.265 IP cameras
• 4-ch
• 4-ch via coaxial cable
• 1-ch via HDMI
• 72 Mbps
• Incoming bandwidth: 4 Mbps
• 32
• 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
• Capacity
• Built-in 512 GB eSSD (480 GB available)
• Rear panel: 2 × USB 2.0
• 12 VDC, 1 A
• ≤ 5.4 W (with eSSD)
• 10% to 90%
• Dimension (W × D × H)
• ≤ 0.5 kg (with eSSD, 1.1 lb.)
