Hikvision 4CH eDVR Dome CCTV Kit with 1TB Built-in SSD and Zatech RG59 Cable

Hikvision 4CH Dome Turret eDVR CCTV Kit is a high-efficiency, full-featured solution for small businesses, homes, and offices. It includes 4 × 2MP Smart Hybrid Light dome cameras that offer full HD 1080p clarity, Smart IR for up to 20m night vision, and white light for color images in low-light conditions.The 4-channel DVR comes with a built-in 1TB eSSD, delivering faster performance, silent operation, and reduced power consumption compared to traditional hard drives. The kit also includes 100m Zatech RG59 coaxial cable, a Hikvision 4CH power supply, and DC/BNC connectors-giving you everything needed for a reliable, clean installation.

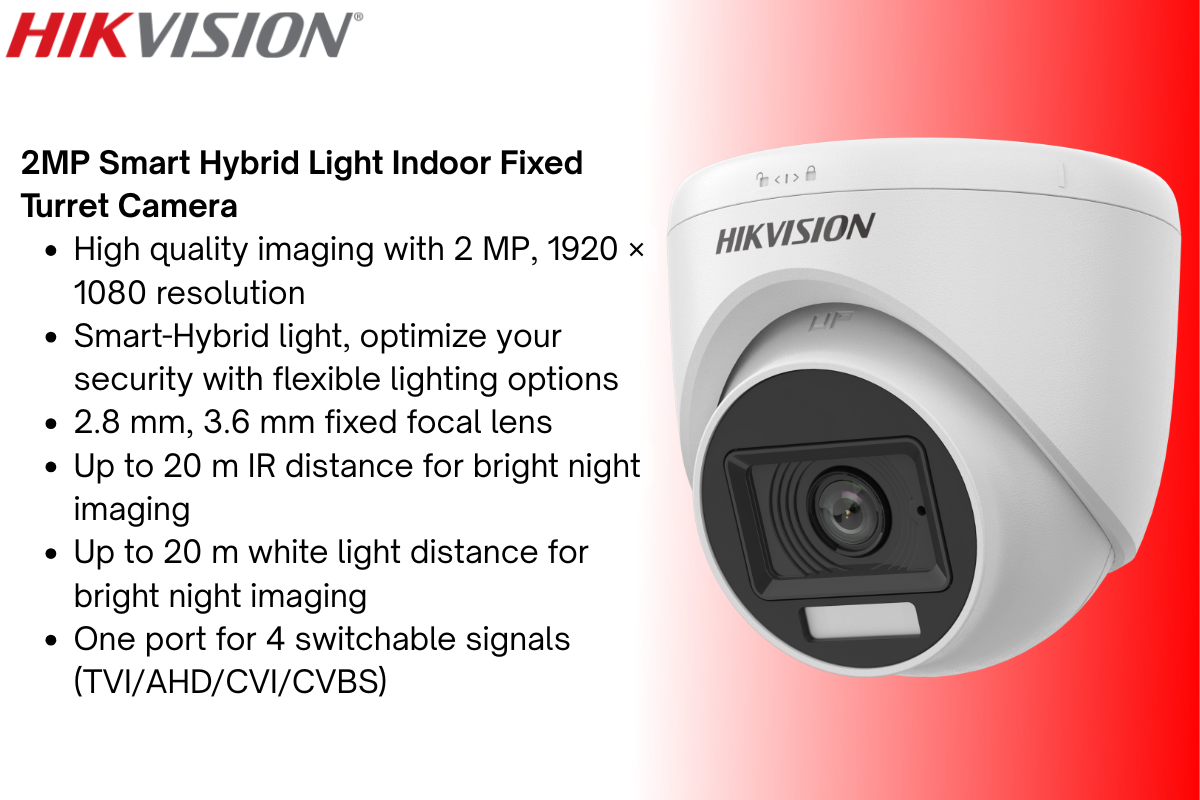

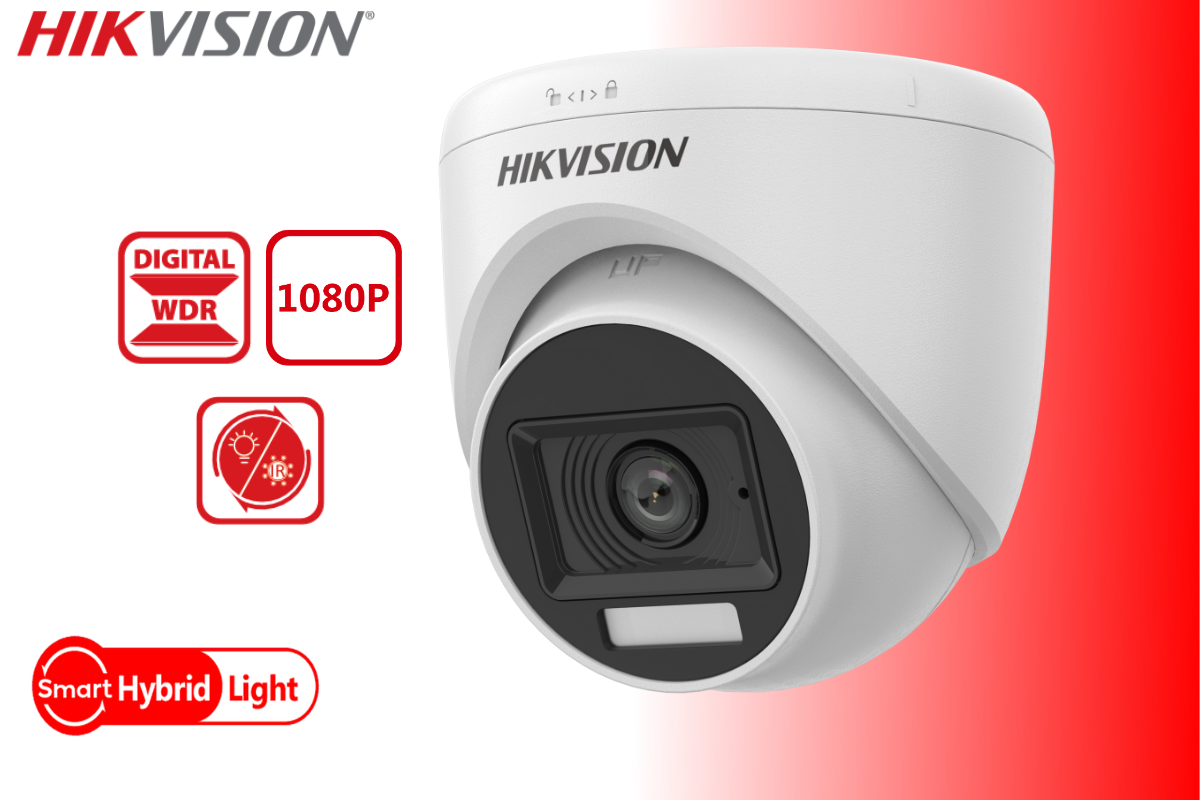

Camera

• Image Sensor2 MP CMOS
• Max. Resolution1920 (H) × 1080 (V)
• Min. Illumination0.02 Lux @ (F2.2, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
• Day & NightICR
• Angle AdjustmentPan: 0 to 360 , Tilt: 0 to 75 , Rotate: 0 to 360
• Signal SystemPAL/NTSC
• Lens
• Lens Type2.8 mm, 3.6 mm fixed focal lens
• Focal Length & FOV2.8 mm, horizontal FOV: 97 , vertical FOV: 54 , diagonal FOV: 113 3.6 mm, horizontal FOV: 77 , vertical FOV: 43 , diagonal FOV: 90
• Lens MountM12
• Illuminator
• Supplement Light RangeIR : Up to 20 mWhite Light : Up to 20 m
• Supplement Light TypeSmart, IR, White Light
• Image
• Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
• Image SettingsBrightness, Sharpness, Smart IR
• Frame RateTVI: 1080p @ 30 fps, 1080p @ 25 fpsAHD: 1080p @ 30 fps, 1080p @ 25 fpsCVI: 1080p @ 30 fps, 1080p @ 25 fpsCVBS: PAL/NTSC
• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementDWDR/BLC/HLC/Global
• White BalanceAuto/Manual
• AGCYes
• Day/Night ModeAuto/Color
• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS/eDVR
• Motion Detection 2.0
• Human/Vehicle AnalysisDeep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;Quick search by object or event type is supported
• Video and Audio
• IP Video Input1-chUp to 1080p resolutionSupport H.265+/H.265 IP cameras
• Analog Video Input4-chBNC interface (1.0 Vp-p, 75 ), supporting coaxitron connection
• HDTVI Input1080p25, 1080p30, 720p25, 720p30
• AHD Input1080p25, 1080p30, 720p25, 720p30
• HDCVI Input1080p25, 1080p30, 720p25, 720p30
• CVBS InputSupport
• HDMI Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• Video Output ModeHDMI/VGA simultaneous output
• Audio Input4-ch via coaxial cable
• Audio Output1-ch via HDMI
• Synchronous playback4-ch
• Recording
• Video CompressionH.265 Pro/H.265
• Encoding Resolution1080p Lite/720p/720p Lite/WD1/4CIF/CIF/QVGA
• Frame RateMain stream:1080p Lite/720p/720p Lite/WD1/4CIF@25 fps (P)/30 fps (N)Note:1080p Lite/720p is 15 fps by defaultSub-stream:4CIF@15 fps; CIF/QVGA@25 fps (P)/30 fps (N)
• Video BitrateAccording to the actual scene, scene-adaptive bitrate control technology would automatically allocates appropriate bitrate to ensure the stability of recording period.
• Stream TypeVideo, Video & AudioNote: In order to protect privacy, the device will only record video (without audio) by default. If you want to record audio, you shall manually enable audio recording. For operation details, refer to the user manual.
• Audio CompressionG.711u
• Audio Bitrate64 Kbps
• Network
• Total Bandwidth64 MbpsIncoming bandwidth: 4 Mbps
• Remote Connection32
• Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP , HTTPS
• Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
• Auxiliary Interface
• CapacityBuilt-in 1024 GB eSSD (960 GB available)Note:The device can store about 8 weeks videos for 4-ch analog cameras (default parameters), this estimation is for reference only.
• USB InterfaceRear panel: 2 × USB 2.0
• Alarm In/OutN/A

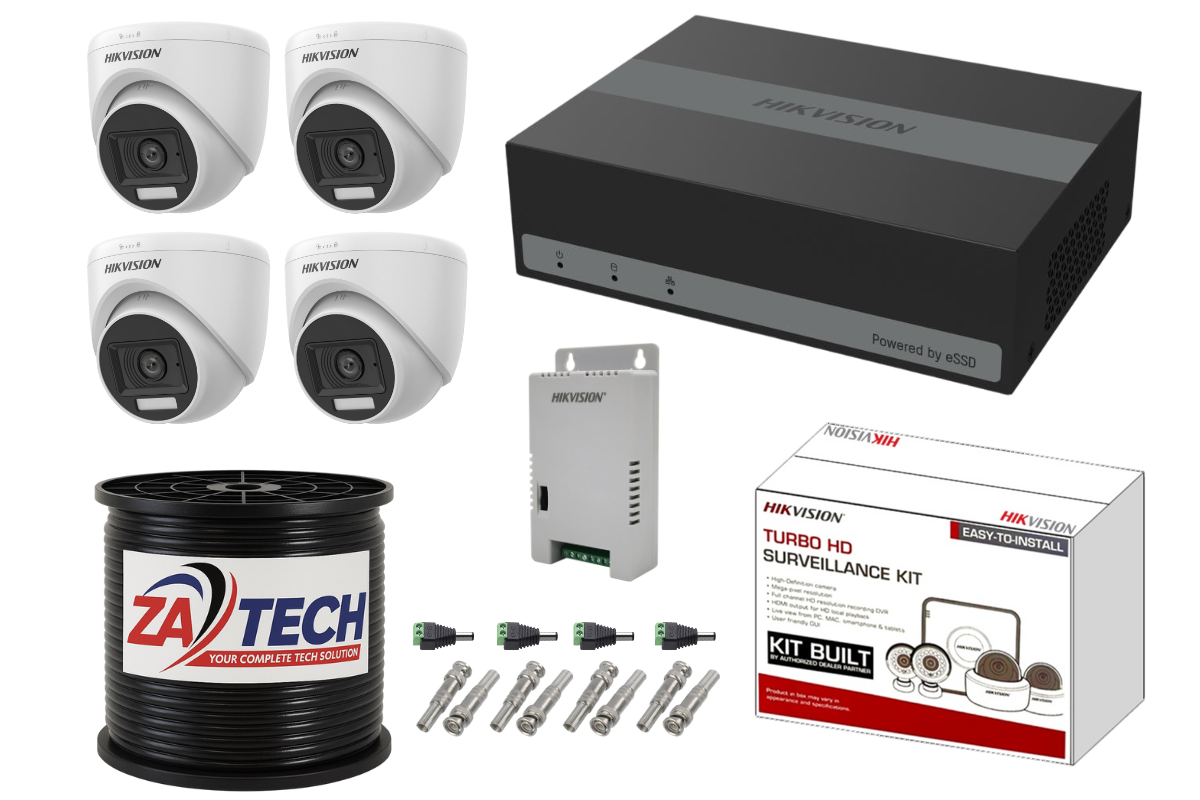

What's in the box

• 4 x Hikvision Camera

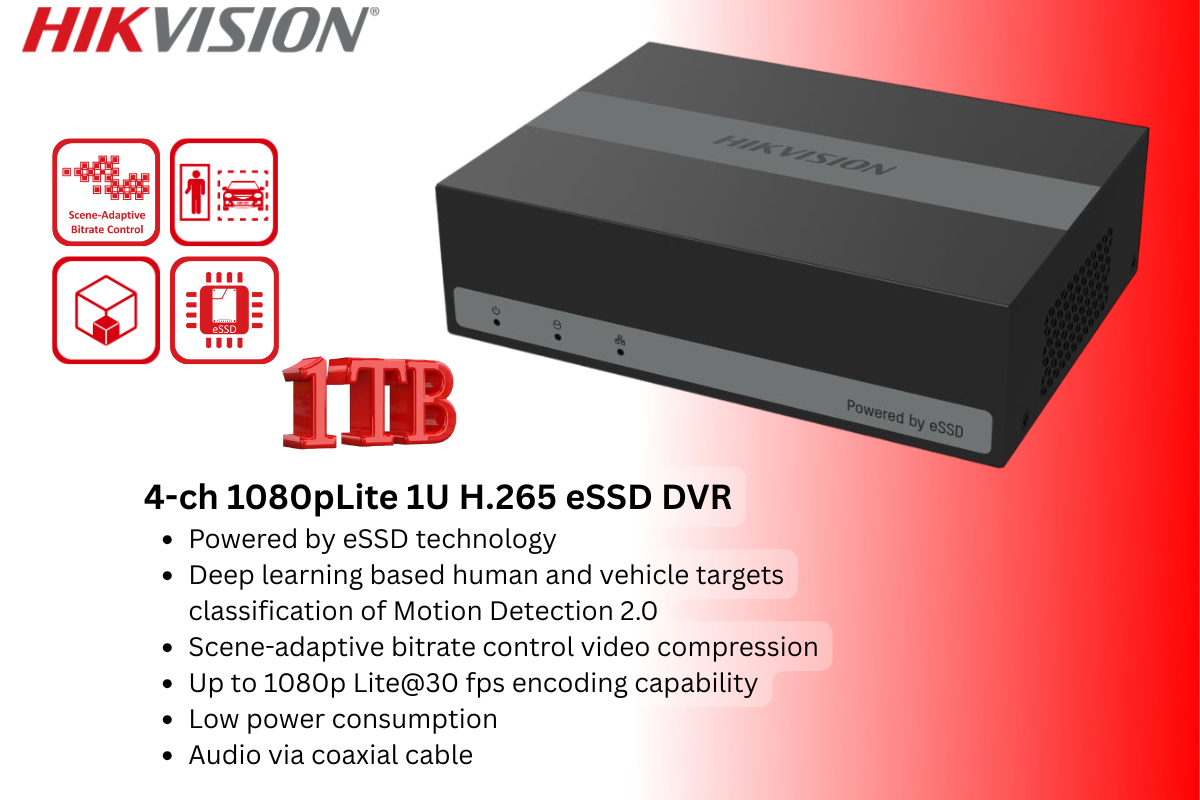

• 1 x Hikvision eDVR

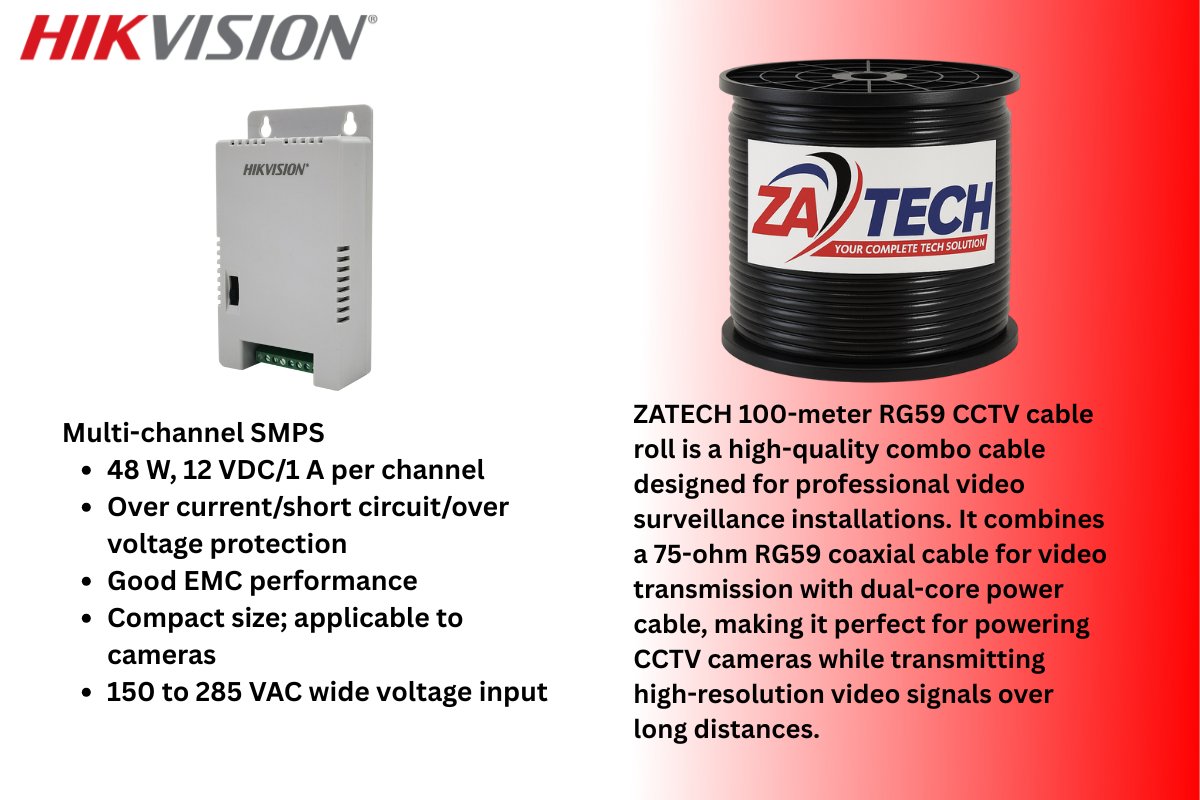

• 1 x Hikvision Power supply
• 1 x Zatech RG59 Cable roll 100m
• 8 x BNC connector
• 4 x DC connector
