Hikvision 4CH eDVR Dome CCTV Kit with 1TB Built-in SSD & Zatech Ready Cable

Hikvision 4CH eDVR Dome Turret CCTV Kit is a complete plug-and-play solution for home or business security. It includes 4 × 2MP Smart Hybrid Light indoor dome cameras with full HD 1080p video, Smart IR for clear night vision up to 20 meters, and optional white light for color recording at night.The 4-channel DVR features built-in 1TB eSSD storage for faster performance and low power use, with H.265 compression, Also included are 4 × 20m Zatech ready-made cables, a Zatech 4-channel power supply, and a DCW4P splitter, making it quick and easy to install and run.

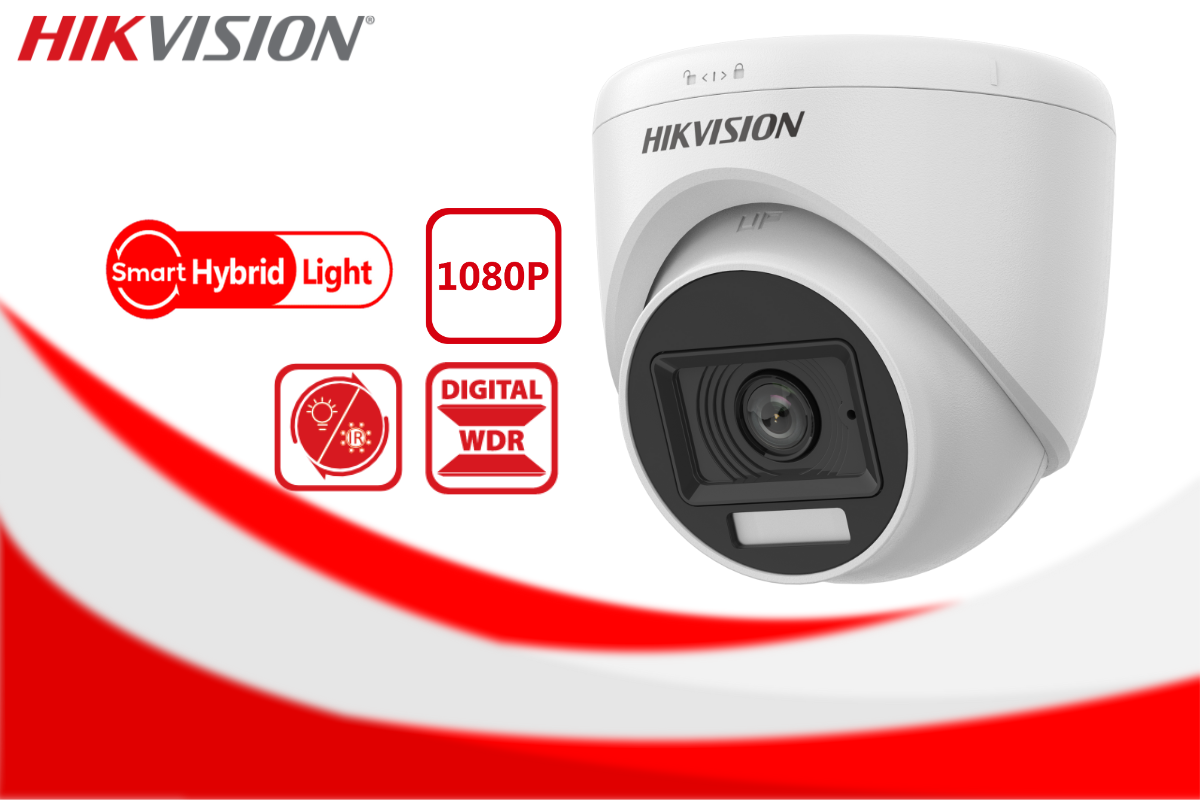

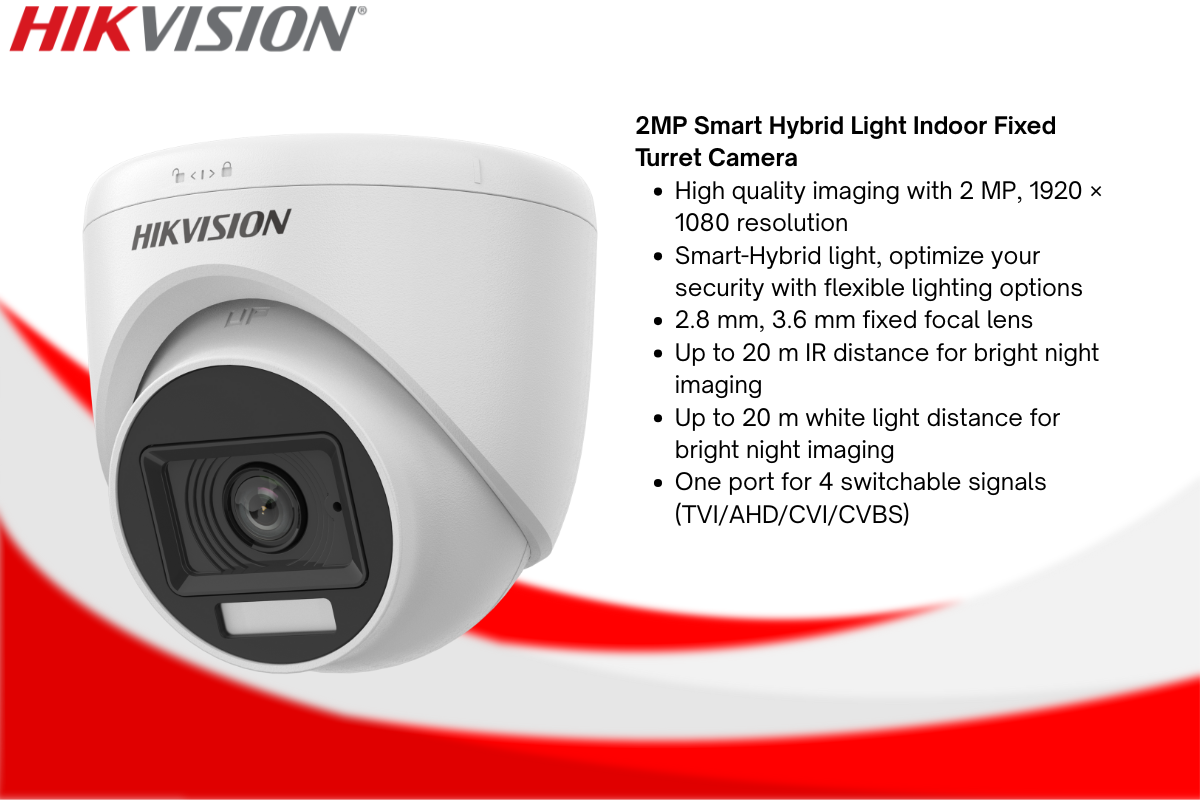

Camera

• Image Sensor2 MP CMOS
• Max. Resolution1920 (H) × 1080 (V)
• Min. Illumination0.02 Lux @ (F2.2, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
• Day & NightICR
• Angle AdjustmentPan: 0 to 360 , Tilt: 0 to 75 , Rotate: 0 to 360
• Signal SystemPAL/NTSC
• Lens
• Lens Type2.8 mm, 3.6 mm fixed focal lens
• Focal Length & FOV2.8 mm, horizontal FOV: 97 , vertical FOV: 54 , diagonal FOV: 113 3.6 mm, horizontal FOV: 77 , vertical FOV: 43 , diagonal FOV: 90
• Lens MountM12
• Illuminator
• Supplement Light RangeIR : Up to 20 mWhite Light : Up to 20 m
• Supplement Light TypeSmart, IR, White Light
• Image
• Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
• Image SettingsBrightness, Sharpness, Smart IR
• Frame RateTVI: 1080p @ 30 fps, 1080p @ 25 fpsAHD: 1080p @ 30 fps, 1080p @ 25 fpsCVI: 1080p @ 30 fps, 1080p @ 25 fpsCVBS: PAL/NTSC
• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementDWDR/BLC/HLC/Global
• White BalanceAuto/Manual
• AGCYes
• Day/Night ModeAuto/Color
• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS

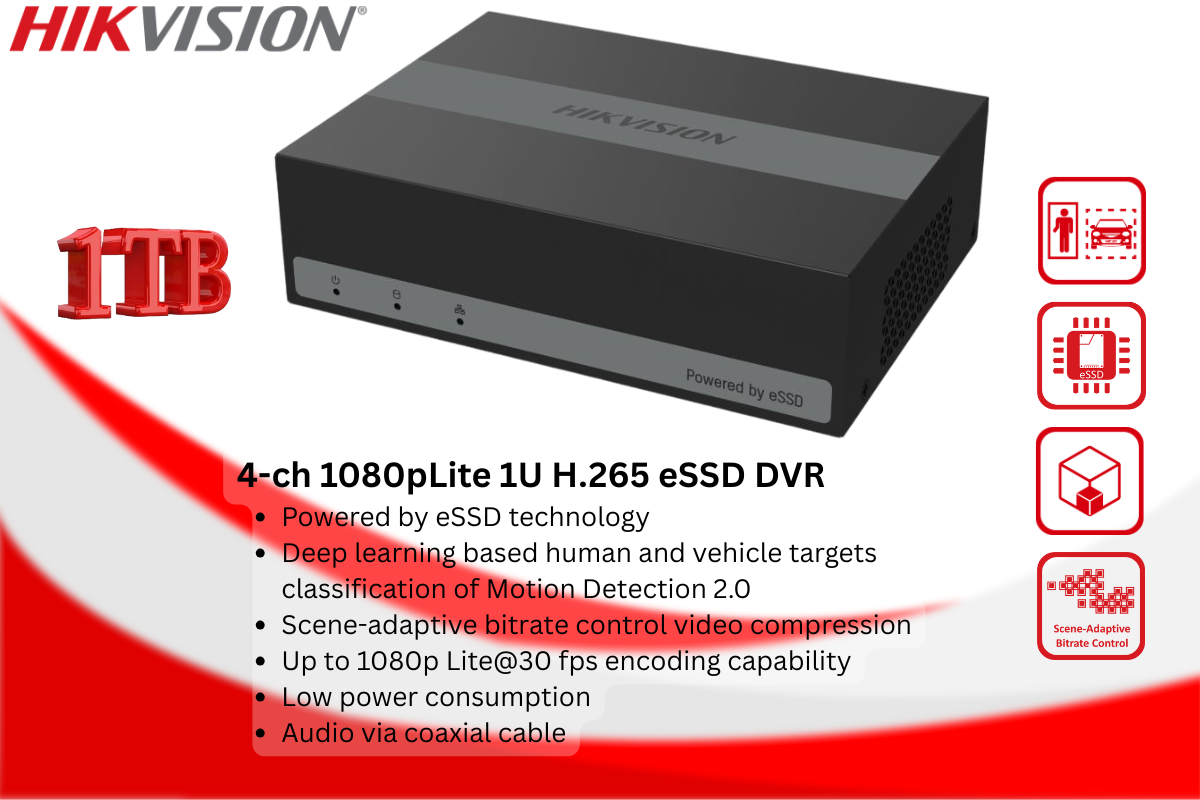

eDVR

• Motion Detection 2.0
• Human/Vehicle AnalysisDeep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;Quick search by object or event type is supported
• Video and Audio
• IP Video Input1-chUp to 1080p resolutionSupport H.265+/H.265 IP cameras
• Analog Video Input4-chBNC interface (1.0 Vp-p, 75 ), supporting coaxitron connection
• HDTVI Input1080p25, 1080p30, 720p25, 720p30
• AHD Input1080p25, 1080p30, 720p25, 720p30
• HDCVI Input1080p25, 1080p30, 720p25, 720p30
• CVBS InputSupport
• HDMI Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• Video Output ModeHDMI/VGA simultaneous output
• Audio Input4-ch via coaxial cable
• Audio Output1-ch via HDMI
• Synchronous playback4-ch
• Recording
• Video CompressionH.265 Pro/H.265
• Encoding Resolution1080p Lite/720p/720p Lite/WD1/4CIF/CIF/QVGA
• Frame RateMain stream:1080p Lite/720p/720p Lite/WD1/4CIF@25 fps (P)/30 fps (N)Note:1080p Lite/720p is 15 fps by defaultSub-stream:4CIF@15 fps; CIF/QVGA@25 fps (P)/30 fps (N)
• Video BitrateAccording to the actual scene, scene-adaptive bitrate control technology would automatically allocates appropriate bitrate to ensure the stability of recording period.
• Stream TypeVideo, Video & AudioNote: In order to protect privacy, the device will only record video (without audio) by default. If you want to record audio, you shall manually enable audio recording. For operation details, refer to the user manual.
• Audio CompressionG.711u
• Audio Bitrate64 Kbps
• Network
• Total Bandwidth64 MbpsIncoming bandwidth: 4 Mbps
• Remote Connection32
• Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP , HTTPS
• Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
• Auxiliary Interface
• CapacityBuilt-in 1024 GB eSSD (960 GB available)Note:The device can store about 8 weeks videos for 4-ch analog cameras (default parameters), this estimation is for reference only.
• USB InterfaceRear panel: 2 × USB 2.0
• Alarm In/OutN/A

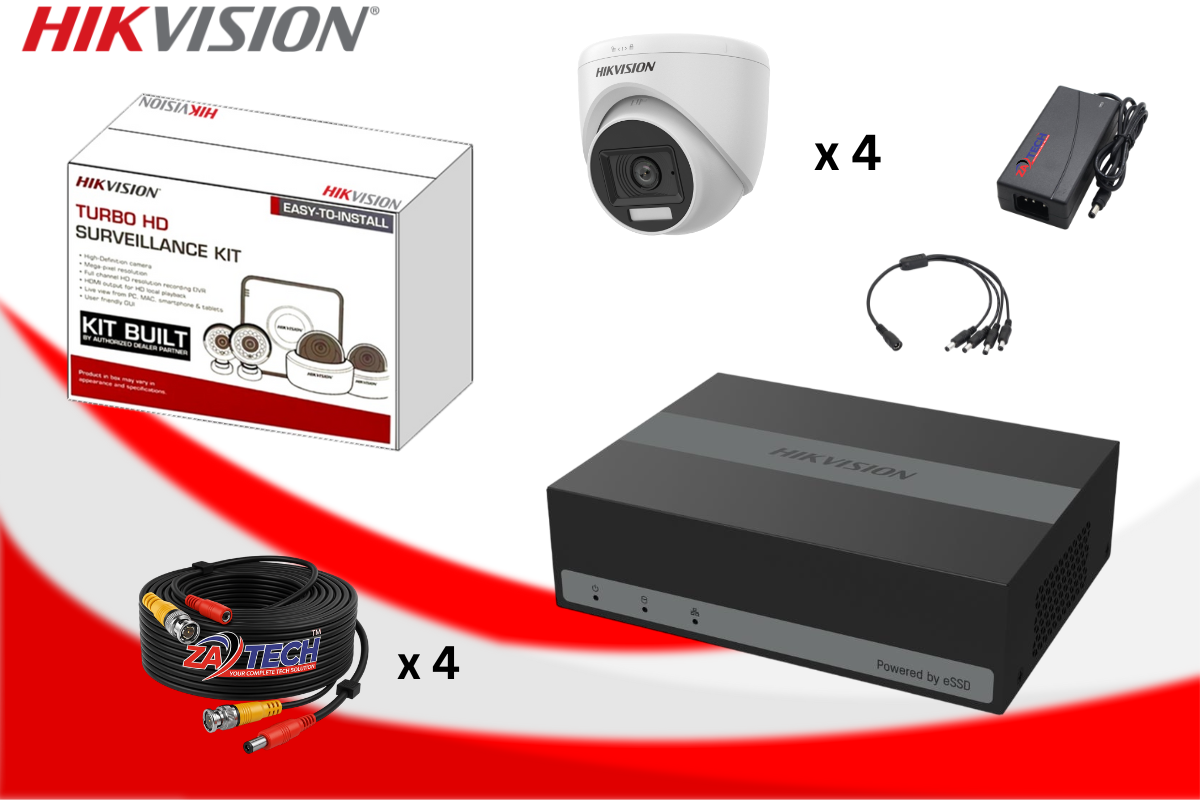

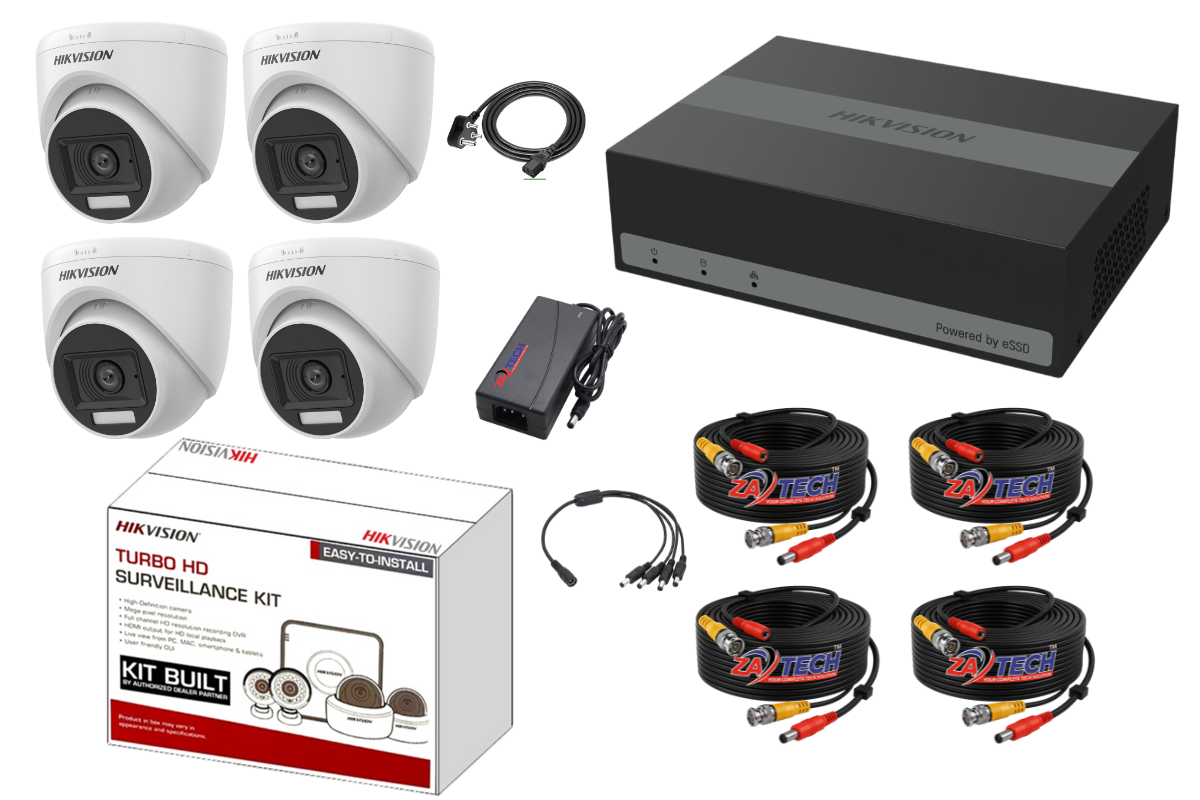

What's in the box

• 4 x Hikvision Indoor Fixed Turret Camera
• 1 x Hikvision eSSD DVR

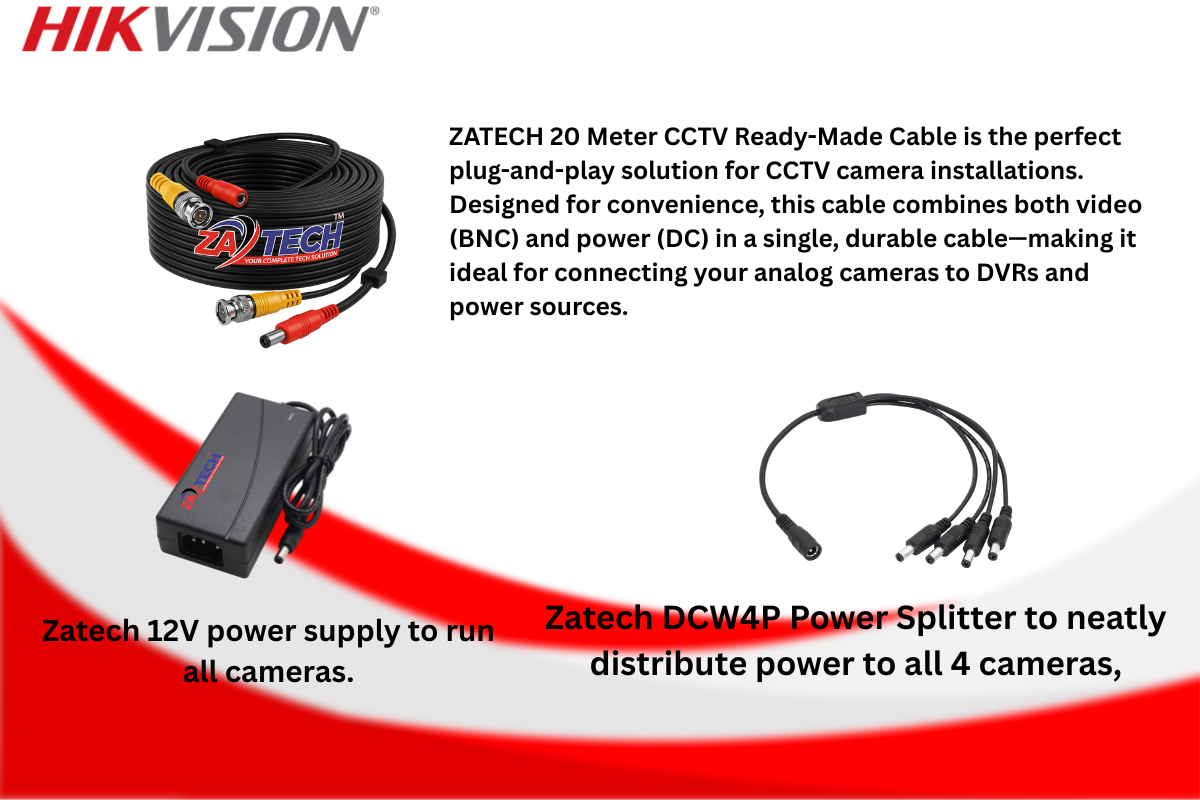

• 1 x Zatech Power supply
• 4 x Zatech ready-made cable
• 1 x DCW4p
