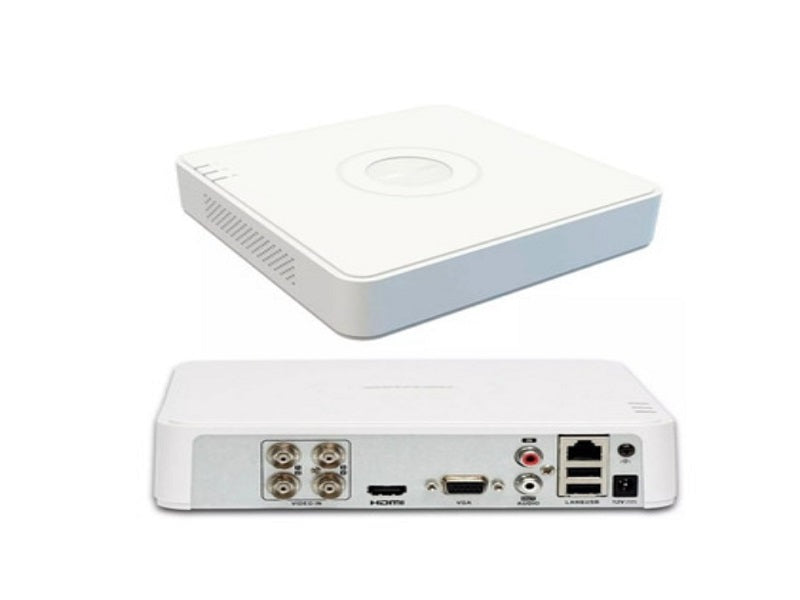

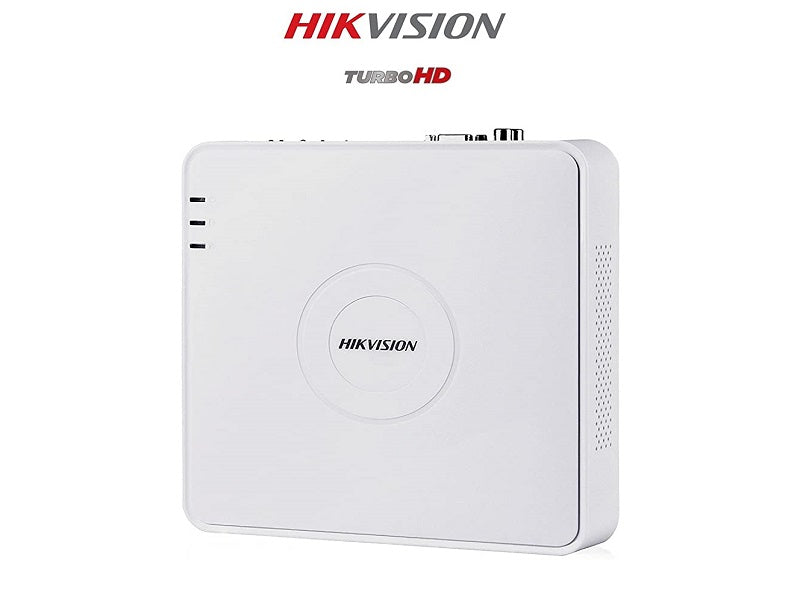

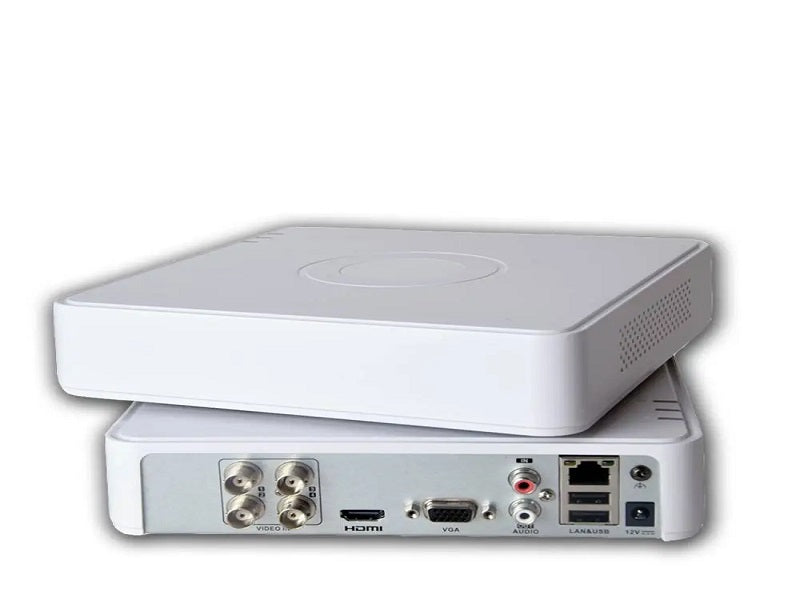

Hikvision DS-7104HGHI-M1 4-Channel 1080p Lite Turbo HD DVR - AcuSense, H.265

Deep learning based human and vehicle targets classification of Motion Detection 2.0. Up to 5-ch IP camera inputs (up to 2 MP).

Key features

• Supports acusense
• Max. 1200 m for 720p HDTVI signal
• Human/Vehicle Analysis
• Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
• Quick search by object or event type is supported;
• Recording
• Encoding Resolution
• Frame Rate
• For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N)
• Stream Type
• BNC interface (1.0 Vp-p, 75 `d9), supporting coaxitron connection
• Support
• 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Reuse the first audio input
• Synchronous Playback
• Total Bandwidth
• TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
• Remote Connection
• Sata
• Up to 4 TB capacity for each disk
• Alarm In/Out
• N/A
• Consumption
• Working Temperature
• 10 °C to 55 °C (14 °F to +31 °F)
• Working Humidity
• 200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)

Specifications

• 4-ch 720p Mini 1U H.265 DVR
• H.265 Pro+/H.265 Pro/H.265 video compression
• Up to 1080p Lite@15 fps encoding capability
• Motion Detection 2.0
• H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF
• For 720p stream access: 720p/WD1/4CIF/VGA/CIF
• For SD stream access: WD1/4CIF/VGA/CIF
• For 720p stream access: 720p/WD1/4CIF/VGA/CIF@ 25fps (P)/30 fps (N)
• For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
• 4CIF@15fps; CIF/QVGA@25 fps (P)/30 fps (N)
• 32 Kbps to 4 Mbps
• G.711u
• 64 Kbps
• 1-ch (up to 5-ch)
• Up to 1080p resolution
• Support H.265+/H.265/H.264+/H.264 IP cameras
• 4-ch
• 1080p25, 1080p30, 720p25, 720p30
• 1-ch RCA (2.0 Vp-p, 1 K'd9)
• 4-ch via coaxial cable
• 1-ch, RCA (Linear, 1 K'd9)
• 64 Mbps
• 32
• 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
• 1 SATA interface
• Capacity
• Rear panel: 2 × USB 2.0
• 12 VDC, 1.5 A
• ≤ 16 W (without HDD)
• 10% to 90%
• Dimension (W × D × H)
• ≤ 0.8 kg (without HDD, 1.8 lb.)
